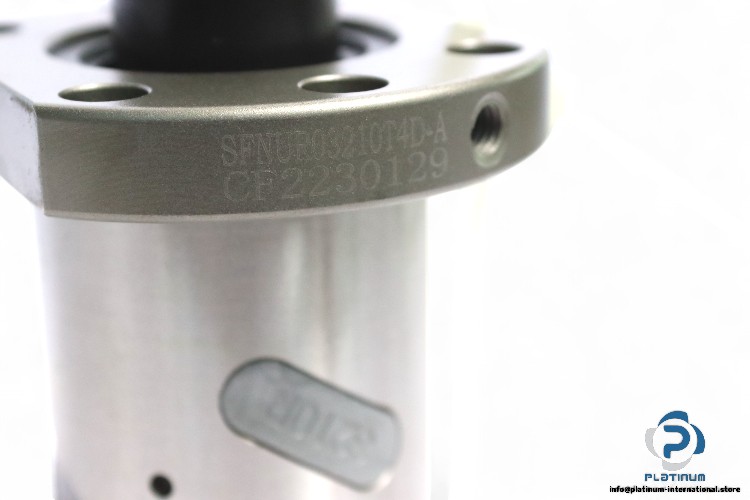

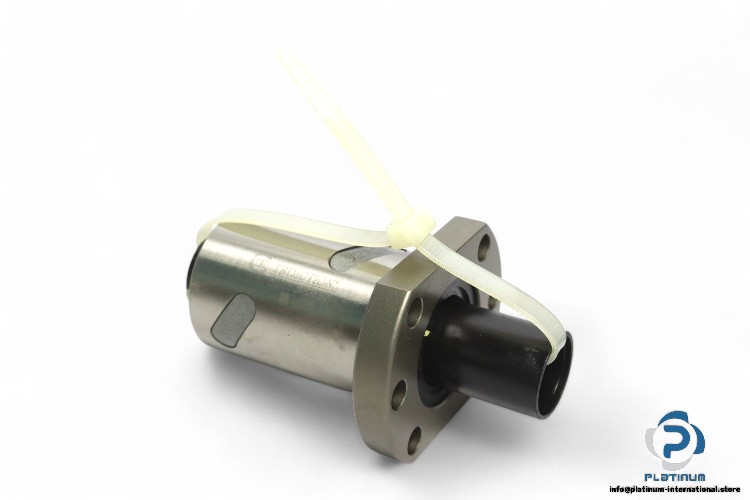

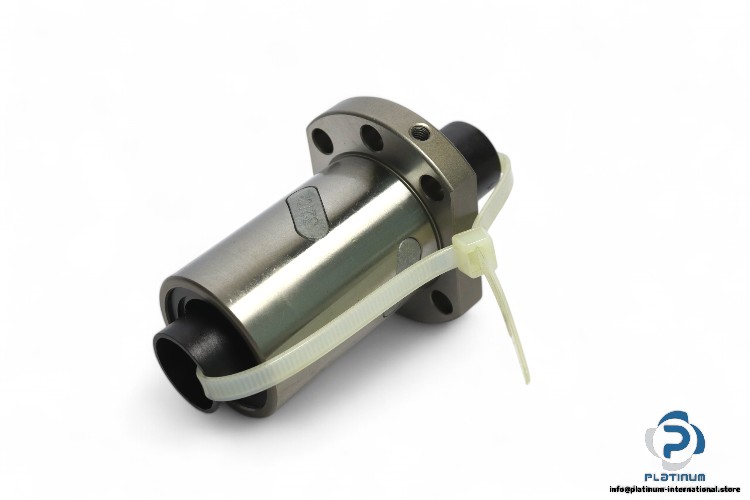

TBI SFNUR03210T4D-A Flanged Single NUT

Manufacturer: TBI
Type: FLANGED SINGLE NUT
Model: SFNUR03210T4D A

Size: 32 x 10 R x 6.35-4

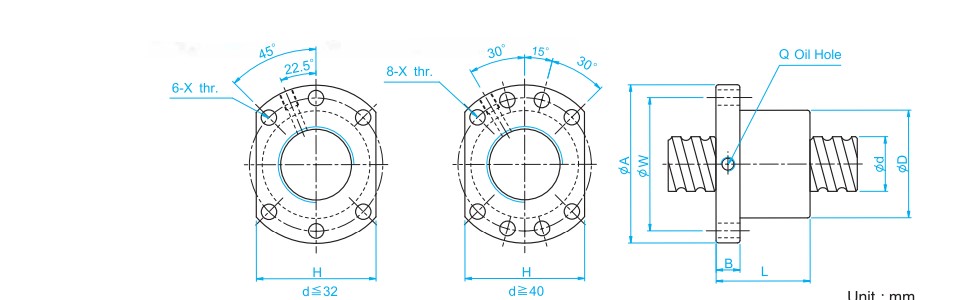

Dimensions:
A: 80 mm
D: 50 mm
L : 90 mm
H: 62 mm
Nominal Diameter d: 32 mm
Lead l: 10 mm
Ball Diameter D_a: 6.35 mm
Number of Grooves: 1
Lead l: 10 mm
Nominal model: S-single/ F, Flange/ NU ,Type Nut
Threading Direction:  R, Right-Hand Thread
Flange Type: D , Double cutting
Number of Turns (Turn·Row):  T4, 1:4 (1×4)
Dynamic Rating Load C_a: 4805 kgf
Static Rating Load C_oa: 12208 kgf
Stiffness K: 61 kgf/µm
