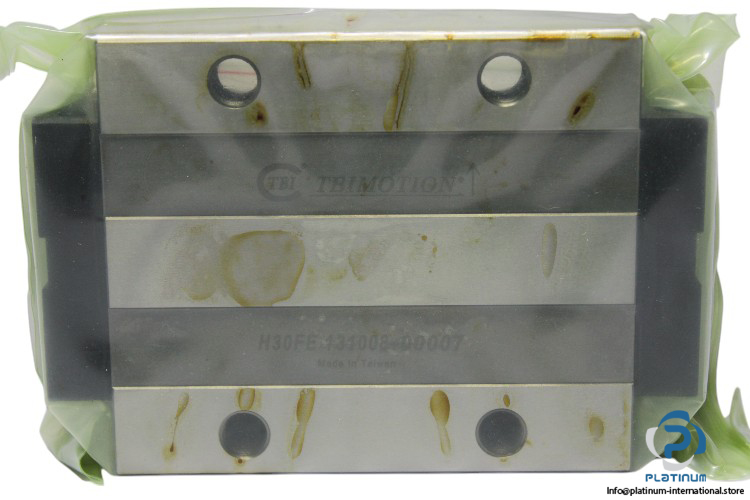

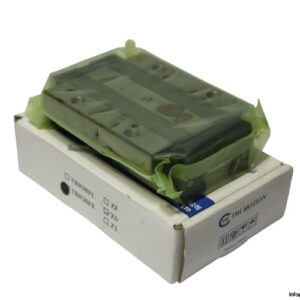

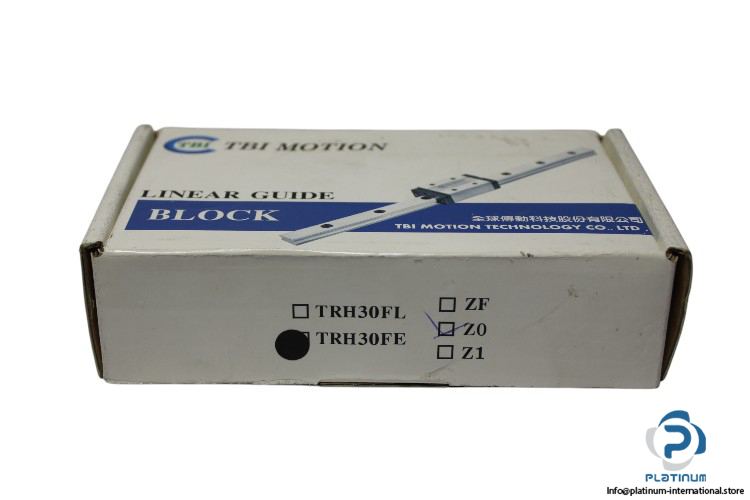

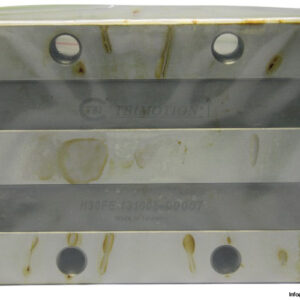

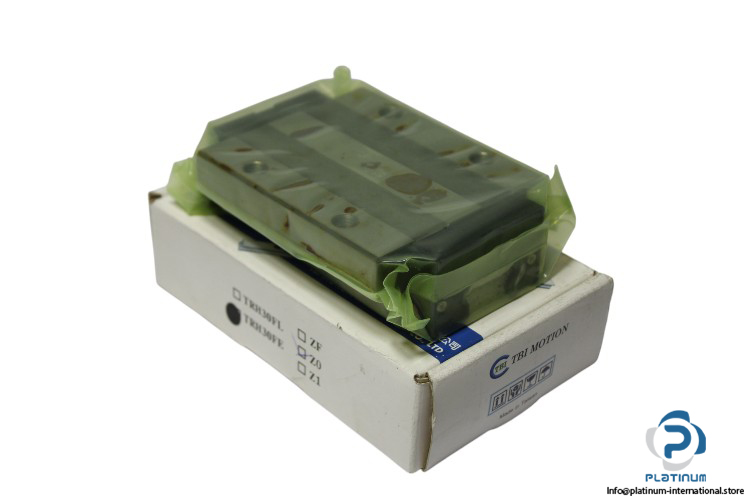

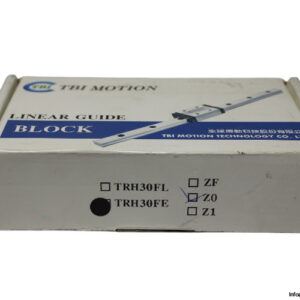

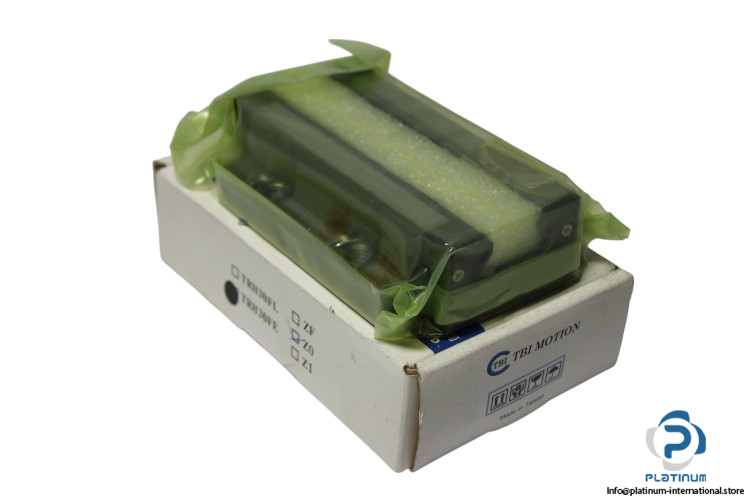

TBI TRH30FEZ0 Linear Ball Bearing
New
In stock12 unitsReady to ship
Linear Ball Bearing
TBI TRH30FE-Z0 Linear Ball Bearing features a 30 mm size, 4791 kgf dynamic load rating, and no preload. It is designed with a high-assembly height and flange for mounting from above and below.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
TBI TRH30FE-Z0 Linear Ball Bearing
The TBI TRH30FE-Z0 Linear Ball Bearing is designed for high-performance motion systems, offering robust load ratings and precise linear motion. It features a standard design and high-assembly height for versatile industrial applications.
Manufacturer: TBI
Model: TRH30FE-Z0
Type: Linear Ball Bearing

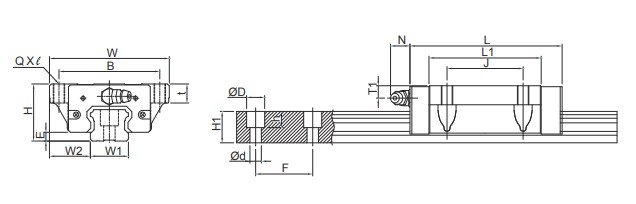

| Size | 30 mm |
| Block Height (H-E) | 35 mm |
| System Height H | 42 mm |
| Block Width W | 90 mm |
| Block Length L | 132 mm |
| W2 | 31 mm |
| B | 72 mm |
| J | 52 mm |
| E | 7 mm |
| L1 | 105 mm |
| T1 | 8 mm |
| Basic Dynamic Load Rating | 4791 kgf |
| Basic Static Load Rating | 9004 kgf |
| Design | TRH-F, Mounting from above and below |
| Block Type | R, Standard |
| Height of Assembly Type | H, High-Assembly |
| Flange Type | F, With Flange |
| Length of Block | E, Extra-Long |
| Preload | Z0, No preload |
| Nominal Model Code | T |
