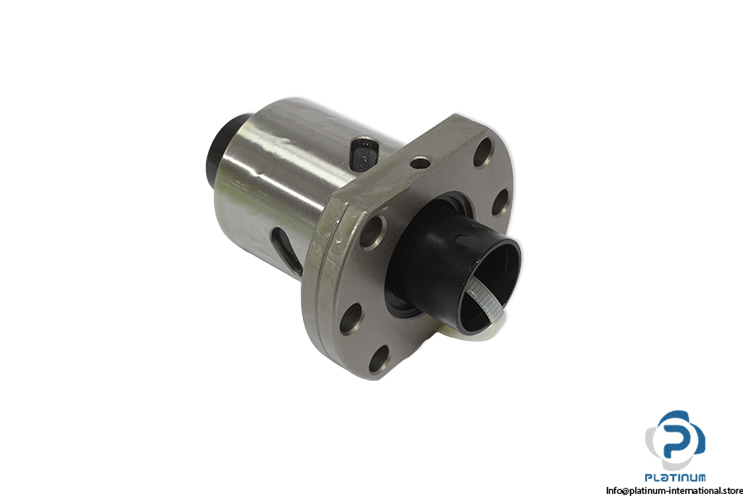

TBI SFNUL02505T4D-A Ball Screw Unit
New
In stock2 unitsReady to ship
Ball Screw Unit TBI Motion SFNUL02505T4D-A is a precision ball screw unit with 25 mm shaft diameter, 5 mm lead, and high load capacity up to 4904 kgf, designed for accurate and efficient linear motion.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Series | SFNU |
| Design | SNU, Strong dust-proof Type |
| Direction | L, left |
| Shaft Diameter | 25 mm |
| Lead | 5 mm |

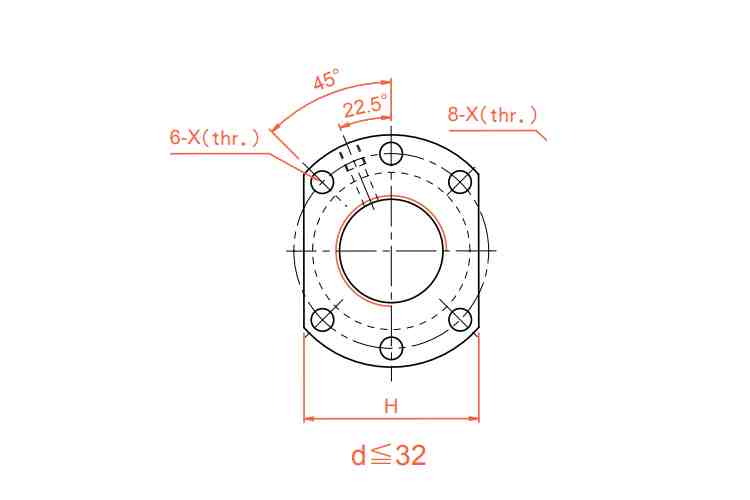

| Flange Type | D, double cutting |
| Nut Shape | A, Round flange |

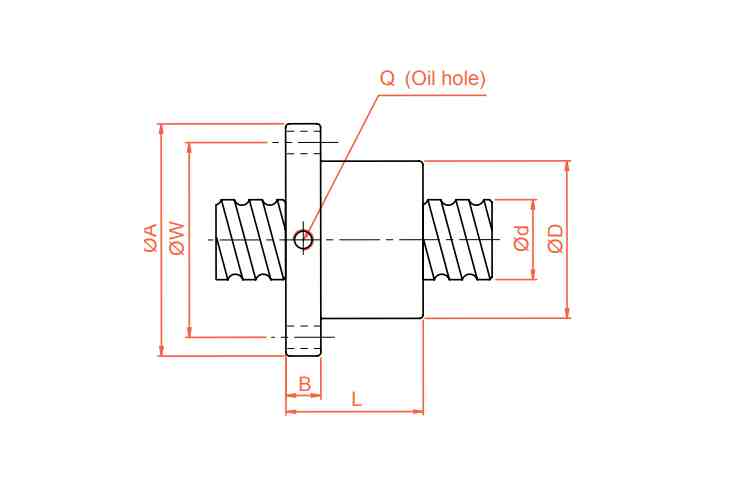

| Da | 3.175 |
| D | 40 mm |
| A | 62 mm |
| B | 10 mm |
| L | 51 mm |
| W | 51 mm |
| H | 48 mm |
| Q | M6 |
| Internal length of the column | 610 mm |
| Number of Turns | 4 |
| Dynamic load Rating | 1724 kgf |
| Static load Rating | 4904 kgf |
| Stock key | CH-001 |
| Condition | new |
| SKU | 1097107 |
| Weight | 0,35 |
