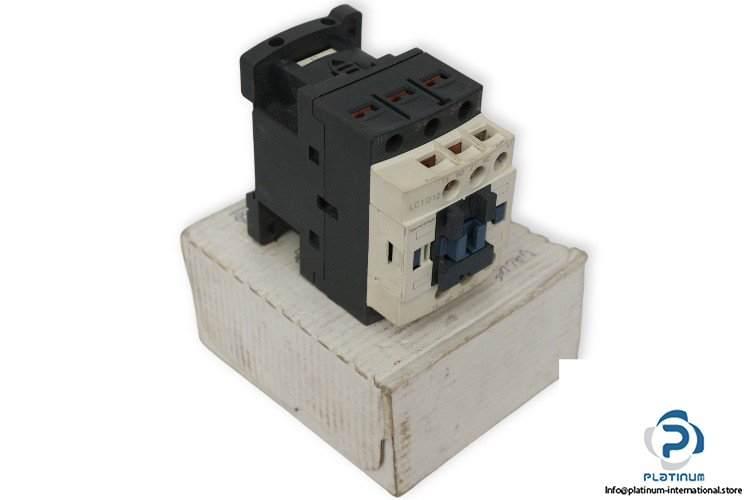

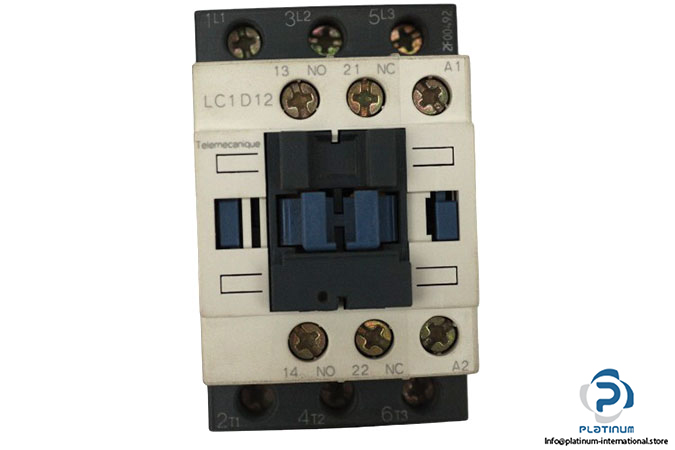

Telemecanique LC1D12E7 Contactor

Manufacture: Telemecanique
Type: Contactor
Model: LC1D12E7
Order No.: 034919
Device Short Name: LC1D

Application: Motor control, Resistive load
No. of poles: 3
Coil voltage: 48 V AC
Frequency: 50/60 Hz
Rated Operational Voltage Ue: 690 V AC (25…400 Hz), 300 V DC
Rated Operational Current Ie: 25 A (AC-1), 12 A (AC-3, AC-3e)
Auxiliary Contact: 1 Normally closed,1 Normally open
Rated insulation voltage Ui: 690 V
Rated impulse withstand voltage Uimp: 6 kV
Conventional free air thermal current Ith: 25 A
Continuous current: 25 A
Rated operational power (Kw) Pe: 5.5 kW @400V (AC-3)
Power (HP) Pe: 7.5 HP @480V
Pollution Degree: 3
Degree of Protection: IP20
Max. temperature: +75 °C
Dimensions: 77 x 45 x 86 mm
