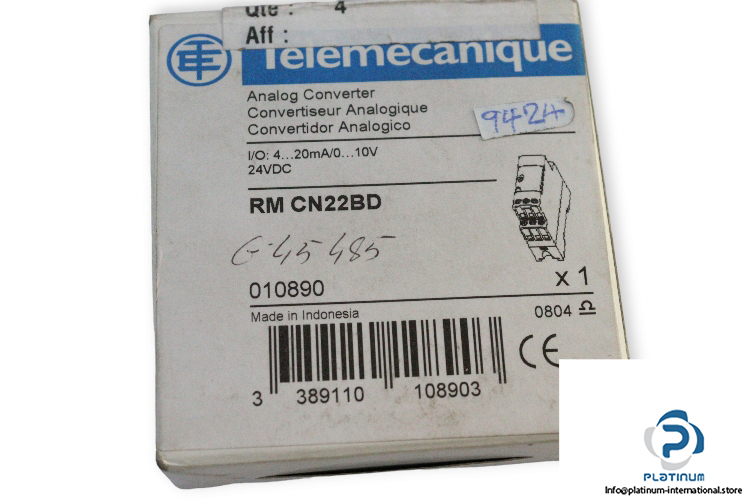

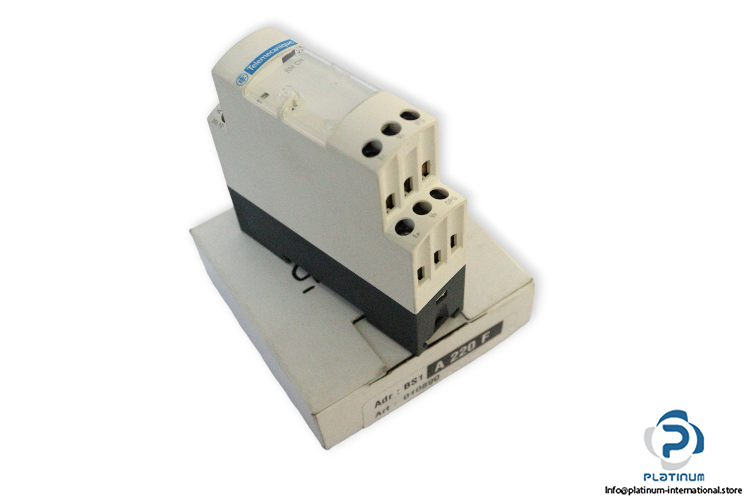

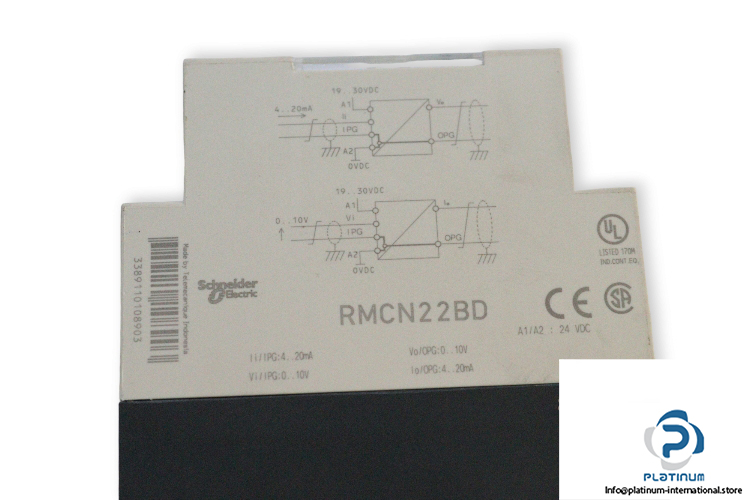

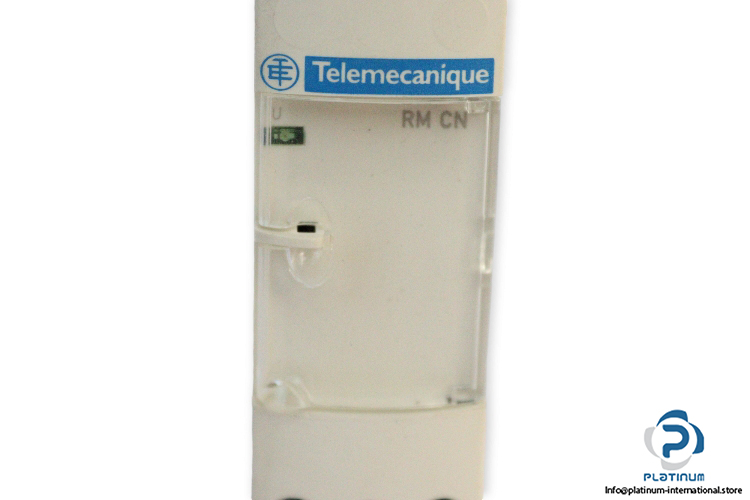

Telemecanique RM CN22BD Analog Converter

Manufacture: Telemecanique / Schneider
Type: Analog Converter
Model: RM CN22BD
Order No.: 010890

Range of product: Zelio Analog
Rated supply voltage Us: 24 V DC (19 … 30 V DC)
Current consumption: <= 40 mA for voltage output, <= 60 mA for current output
Analogue input type:
-Current 4 … 20 mA
-Voltage 0 … 10 V DC
Analogue output type:
-Current 4 … 20 mA <= 500 Ohm by cabling
-Voltage 0 … 10 V >= 100 kOhm by cabling
Tightening torque: 0.6 … 1.1 N.m
Rated insulation voltage Ui: 2 kV
Fixing mode: By screws, mounting plate Clip-on, 35 mm symmetrical DIN rail
Degree of protection: IP20 terminal block, IP50 housing
Protection type: Overvoltage protection on output (+/- 30 V) Reverse polarity protection
Ambient air temperature for operation: 0 … 50°C (mounting side by side), 0 … 60°C (2 cm spacing)
Pollution degree: 2
Dimensions: 78 x 31 x 80 mm
