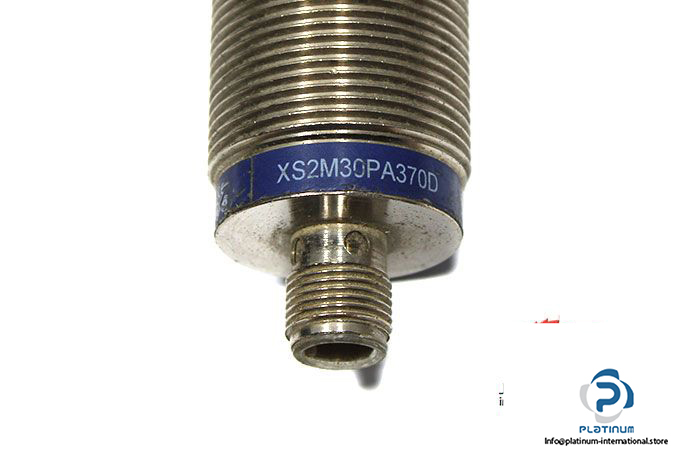

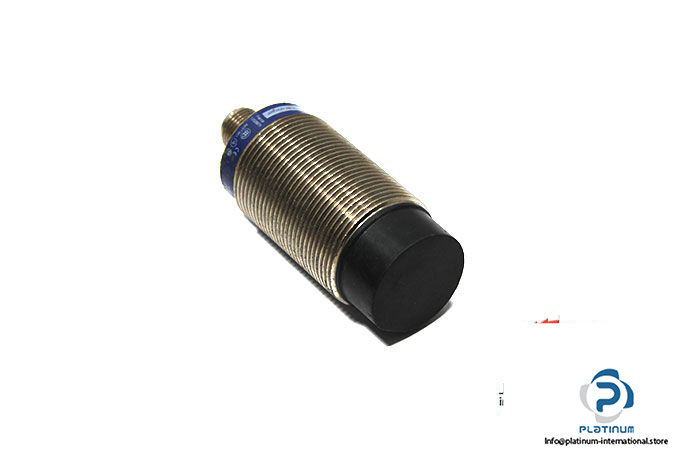

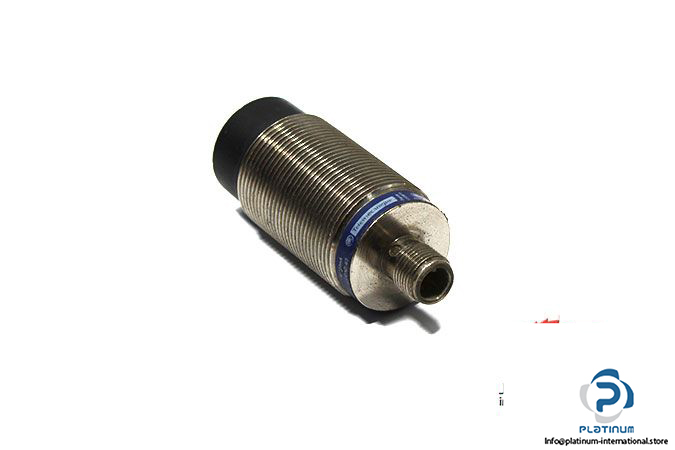

Telemecanique XS2M30PA370D Inductive Sensor

Manufacturer:  TELEMECANIQUE SCHNEIDER

Type:  INDUCTIVE SENSOR

Model: XS2M30PA370D

Sensing Range: 15 mm

Operating Voltage: 12 … 48 V DC

Switching Capacity: 0 … 200 mA

No-Load Supply Current: ≤ 10 mA

Maximum Voltage Drop: <= 2 V
Switching Frequency: 1000 Hz

Signal Output: PNP

Switching Output: Normally Open

Sensor Design: Cylindrical M30

Electrical Connection: Connector M12, 4-Pin

Degree of Protection: IP68

Diameter, Length: 30, 74 mm

Ambient Operating Temperature: -25 … 80 °C

Housing Material: Metal

Mounting: Non Flush-Mountable

Weight: 0.11 kg
