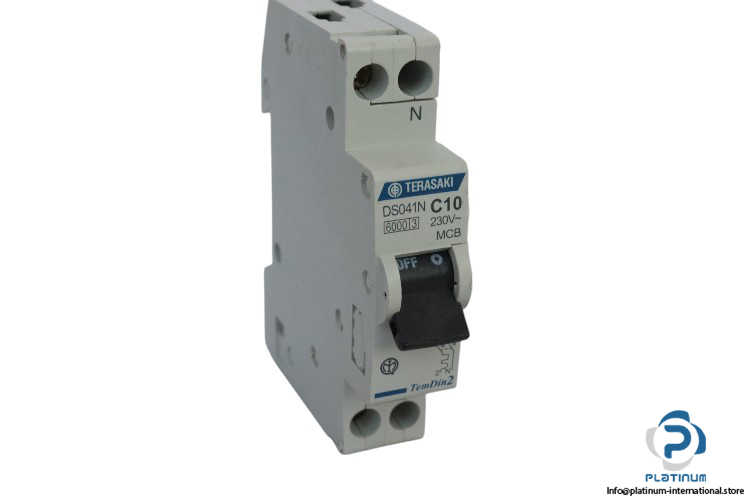

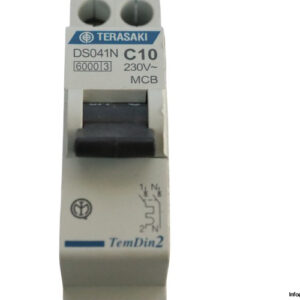

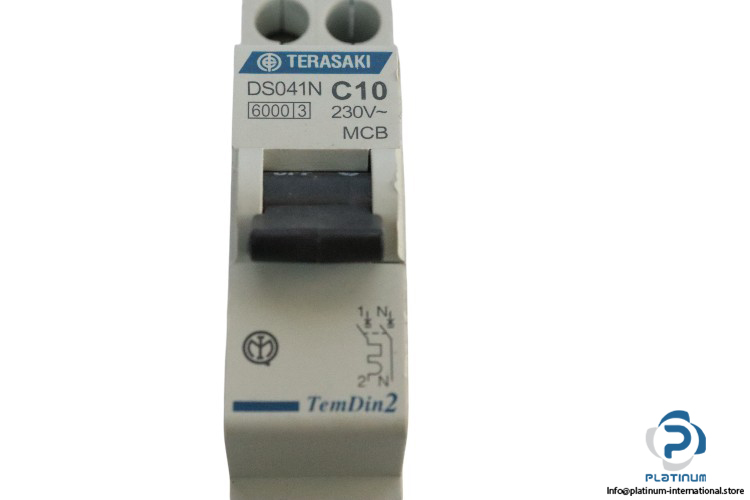

Terasaki Miniature Circuit Breaker DS041NC010
Terasaki Miniature Circuit Breaker DS041NC010 is designed to provide reliable overcurrent protection in a compact form for electrical circuits. With a high breaking capacity and easy installation on a DIN rail, it is ideal for protecting residential and commercial electrical systems.
- Manufacturer: Terasaki
- Type: Miniature Circuit Breaker
- Model: DS041NC010
- Range: TemDin2
Technical Data:
- Supply Voltage: 230 V AC
- Frequency: 50/60 Hz
- Nominal Current (In): 10 A
- Curve: C
- Number of Poles: 1
- Contact: 2 Normally Open
- Breaking Capacity (Icn): 6 kA
- Mounting: 35 mm symmetrical DIN rail
- Standard: EN 60898
- Calibration Temperature: 30°C
