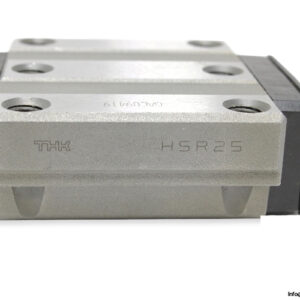

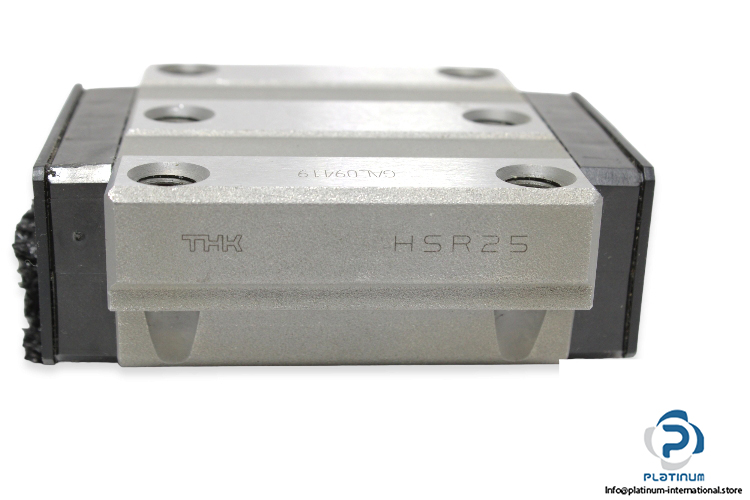

THK HSR25CA Linear Bearing Block

Manufacturer: THK

Type: Linear Guideway Block HSR

Model: HSR25 , HSR 25CA



Size: 25

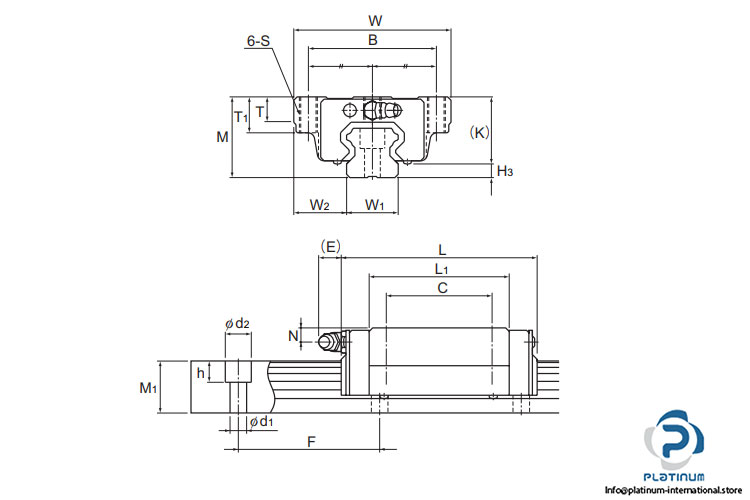

Dimensions

Total Height M: 36 mm

Block Height K: 30.5 mm

Block Width W: 70 mm

Block Length L: 83.1 mm

L₁: 59.5 mm

B: 57 mm

C: 45 mm

Block Type: Flange Type

Mounting Hole: 6 tapped holes

Basic Load Ratings:

Dynamic C: 19.9 kN

Static C₀: 34.4 kN
