THK HSR35B Linear Guideway Block

Manufacturer: THK

Type: Linear Guideway Block HSR

Model: HSR 35B1SS

Size: 35 mm

Block Type: Flange Type

Basic Load Ratings:

Dynamic C: 37.3 kN

Static C₀: 61.1 kN

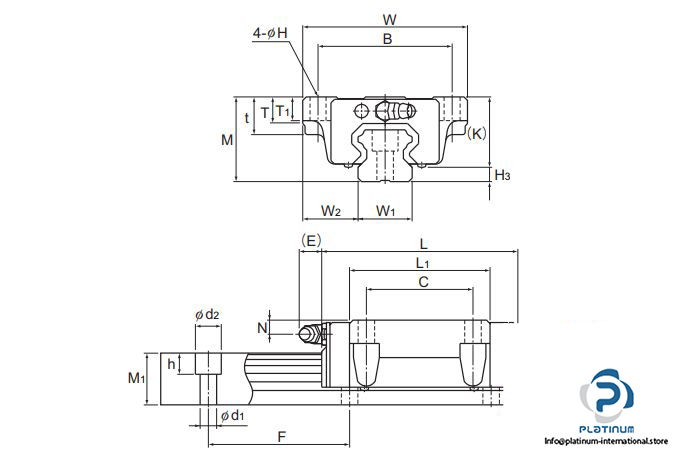

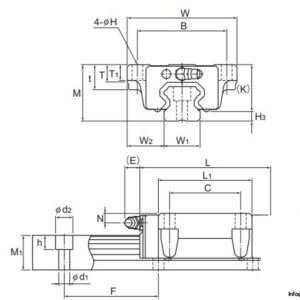

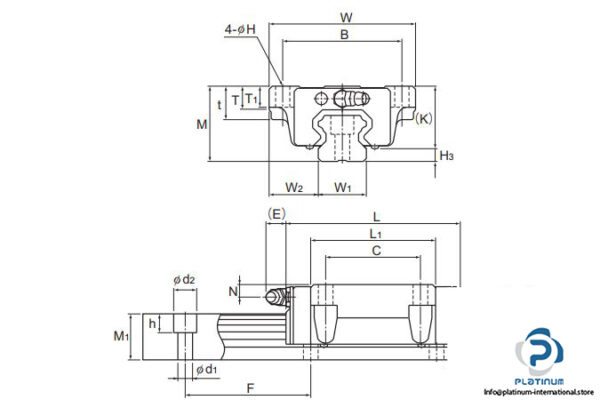

Dimensions

Total Height M: 48 mm

Block Width W: 100 mm

Block Length L: 109.4 mm

Mounting Hole: 4 through holes

Weight: 1.6 kg
