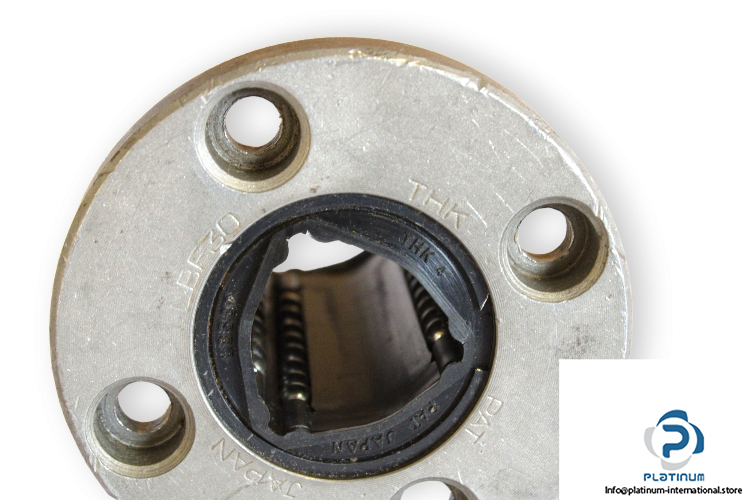

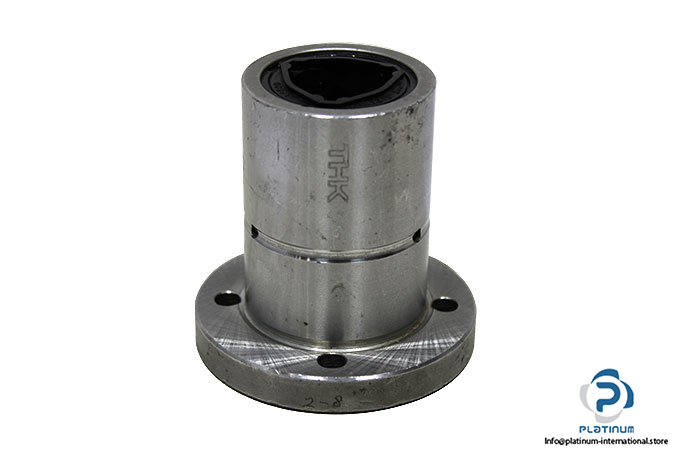

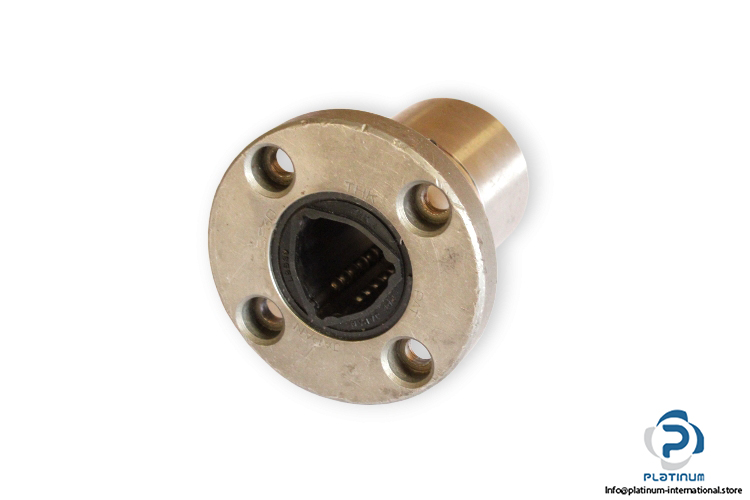

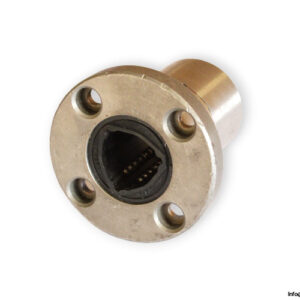

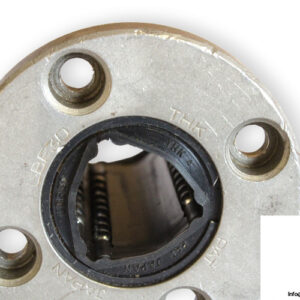

THK LBF30 Ball Spline Bearing

Manufacturer: THK
Type: Ball Spline bearing
Model: LBF 30

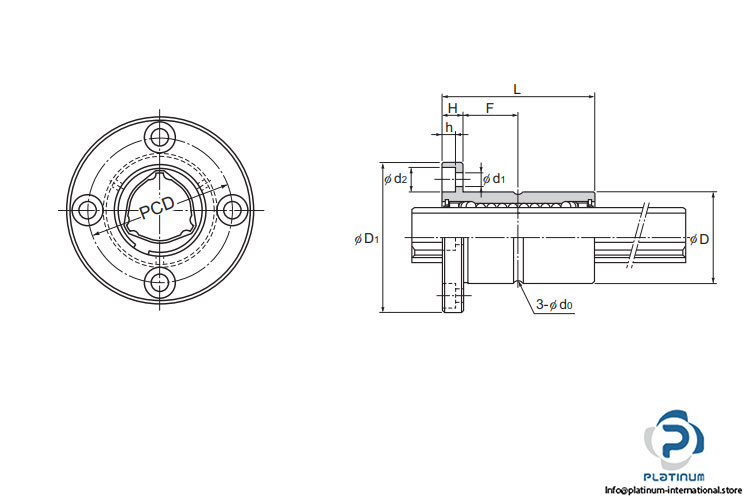

Spline nut Dimensions:
Outer Diameter D: 45 mm
Length L: 70
Flange Diameter D₁: 70 mm
Flange Thickness H: 10 mm
PCD: 54 mm
Mounting hole d₁ ×d₂ ×h: 6.6×11×6.5 mm
Basic Dynamic torque rating C_r: 273 Nm
Basic Static torque rating C_0r: 538 Nm
Basic Dynamic load rating, radial C_r: 19.3 kN
Basic Dynamic load rating, radial C_0r: 33.8 kN
