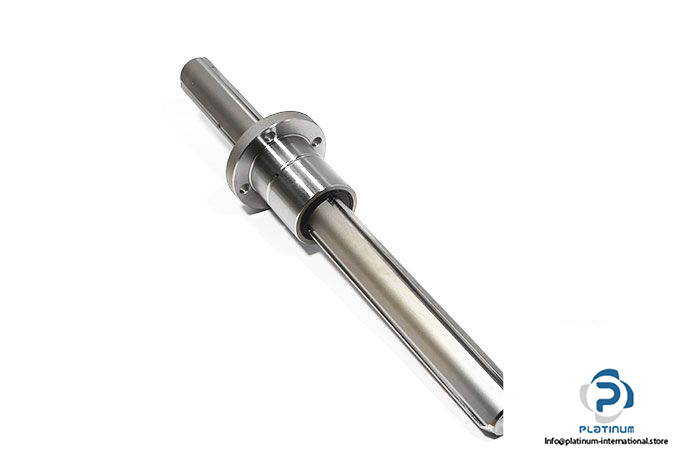

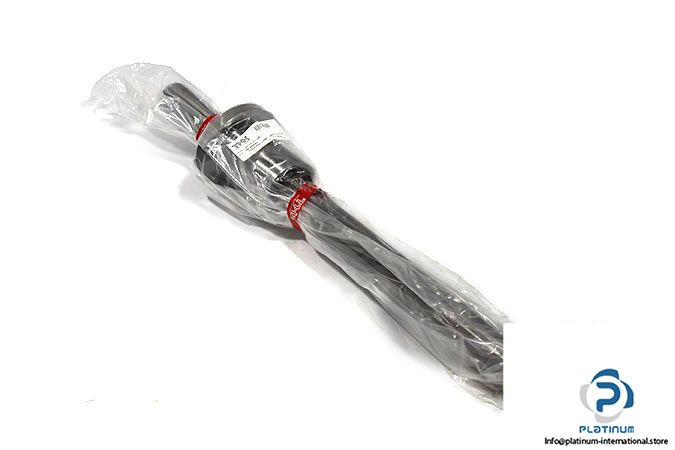

THK LBF50UU+538L Ball Spline Bearing

Manufacturer: THK

Type: Ball Spline bearing

Model: LBF 50

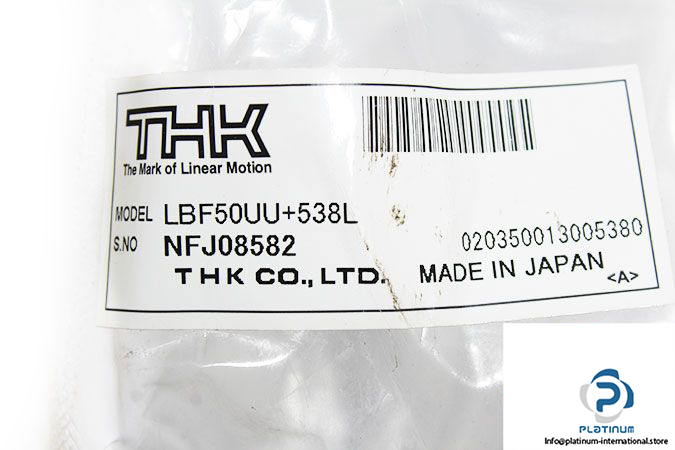

Order Code: LBF 50 UU + 538L

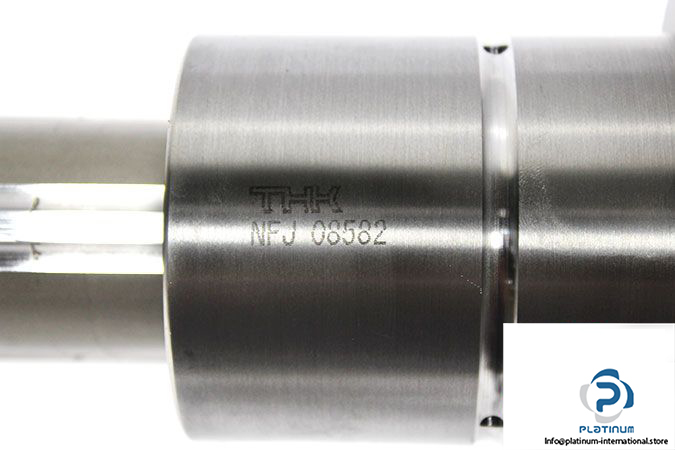

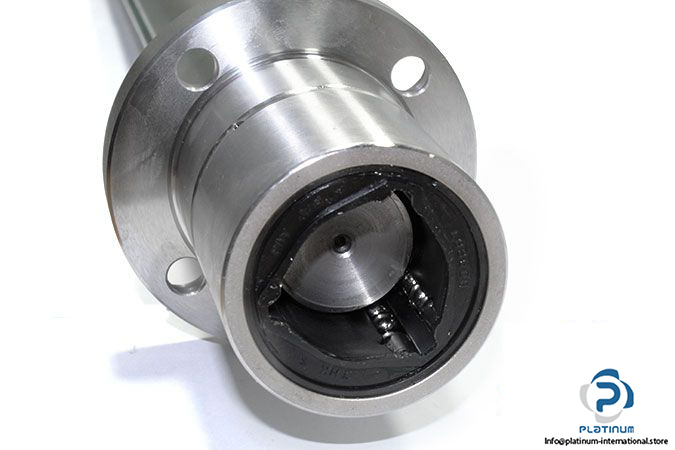

Spline nut Dimensions:

Outer Diameter: 70 mm

Length: 100

Flange Diameter: 108 mm

Flange Thickness: 16 mm

Basic Dynamic torque rating C_r: 1100 Nm

Basic Static torque rating C_0r: 1940 Nm

Basic Dynamic load rating, radial C_r: 46.6 kN

Basic Dynamic load rating, radial C_0r: 73 kN

Overall spline shaft length: 538 mm

Gross Weight: 7.5 kg
