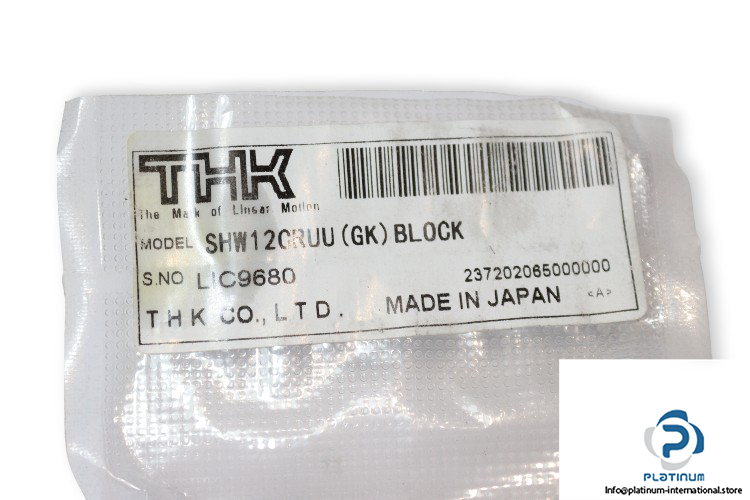

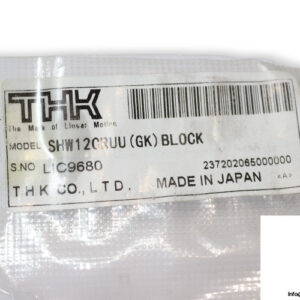

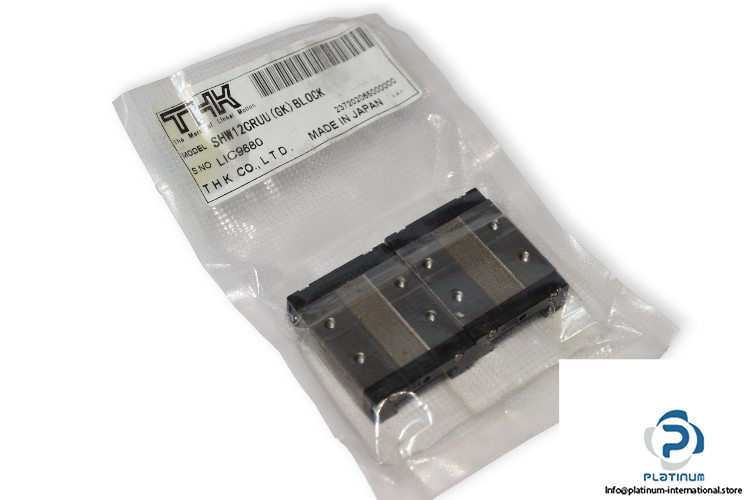

THK SHW12CRUU Linear Bearing Block

Manufacturer: THK
Type: Caged Ball LM Guide -wide, low center of gravity types
Model: SHW 12 CRUU

Block Type: Flange

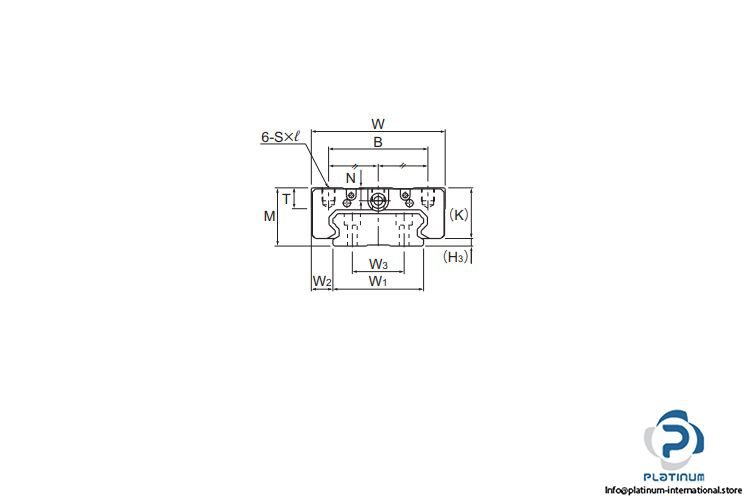

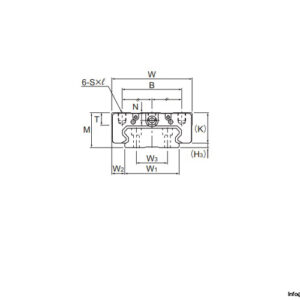

Outer dimensions:
Total Height M: 12 mm
Block Width W: 30 mm
Block Length L: 37 mm
LM block dimensions:
B: 21 mm
C: 12 mm
Height K: 10 mm
Grease nipple or greasing hole: φ2.2 drilled hole
Basic Load Rating:
Dynamic C: 4.31 kN
Static C0: 5.66 kN
Protection accessory: UU; With end seal
