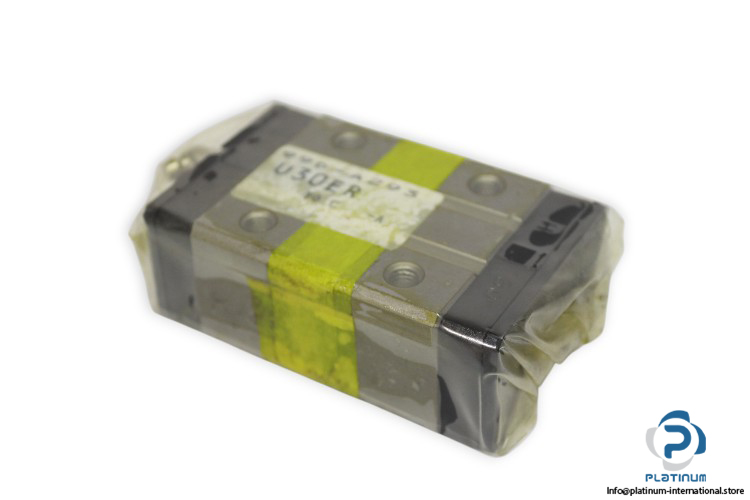

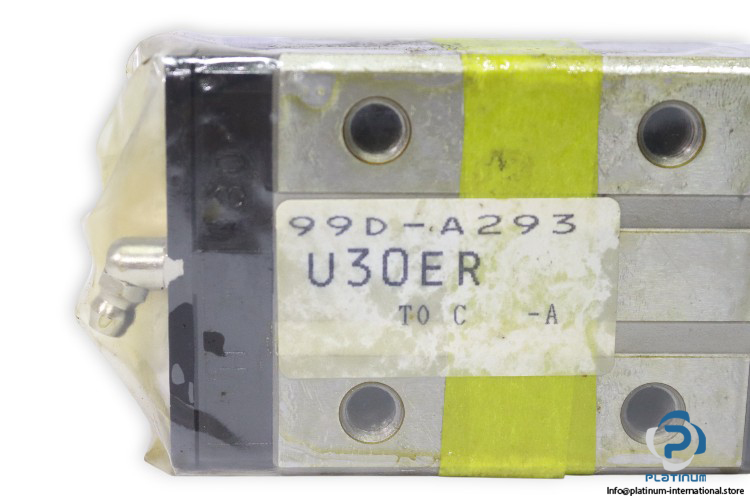

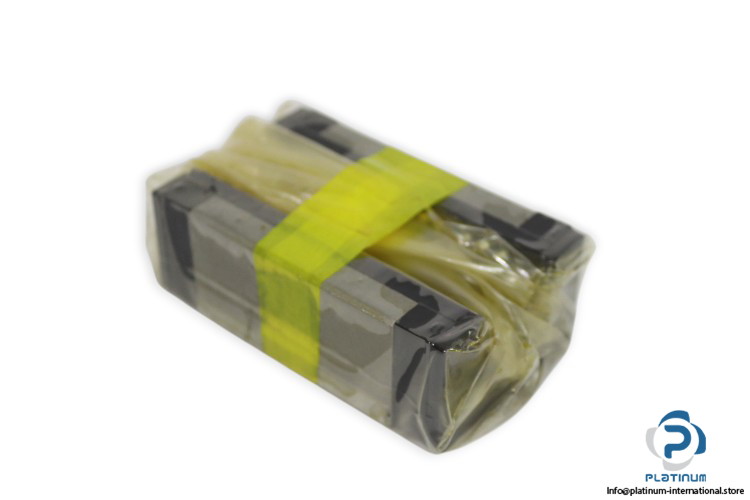

Tsubaki U30ER Linear Bearing Block
New
In stock10 unitsReady to ship
89,99$
LINEAR BEARING BLOCK
Tsubaki U30ER linear bearing block, 30 mm size, square type, with high load ratings (C50: 29,100 N, C100: 23,100 N, C0: 52,110 N) and precision design. Rails available on request.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Tsubaki U30ER Linear Bearing Block
The Tsubaki U30ER is a precision linear bearing block designed for smooth and accurate linear motion in industrial applications. With a square block design, strong load ratings, and compatibility with corresponding rails, it ensures high reliability and durability for demanding systems.
Manufacturer: Tsubaki
Type: Linear Bearing Block
Model: U30ER
Size: 30 mm
Basic Load Ratings

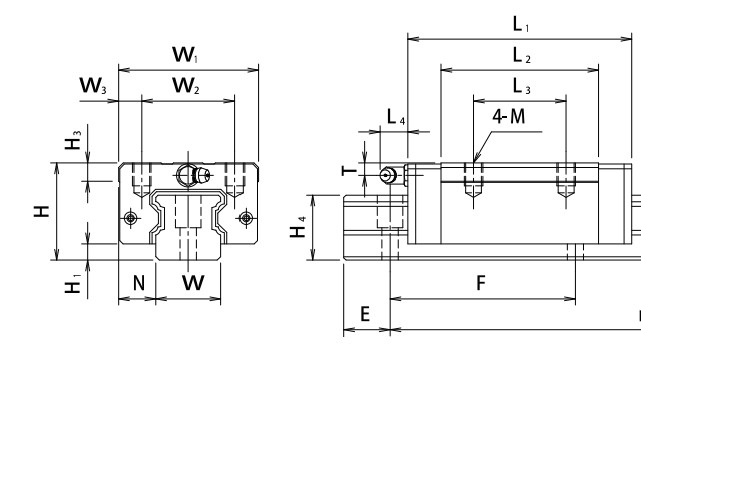

Additional Information
| Total Height H | 42 mm |
| Block Height (H-H1) | 35 mm |
| Width W1 | 60 mm |
| Block Length L1 | 97 mm |
| Pitch | 40 mm |
| Block Type | Square Type |
| Mounting Hole | M 8×10 |
| Dynamic C50 | 29,100 N |
| Dynamic C100 | 23,100 N |
| Static C0 | 52,110 N |
| Note | We also provide the corresponding rails (guideways) in a wide range of lengths”please ask us if you need rails to match your bearing. |
