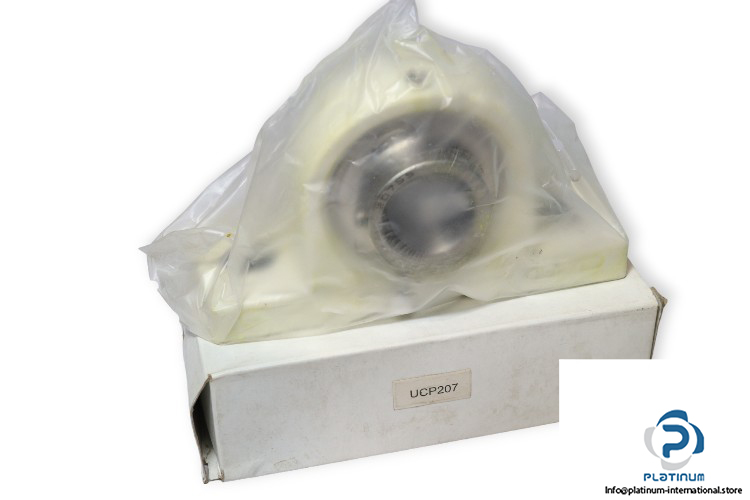

UCP207 Plastic Pillow Block Ball Bearing Unit

Type: Plastic Pillow Block Ball Bearing Unit
Model: UCP 207
Housing No.: PP207
Bearing No.: SSUC207SS

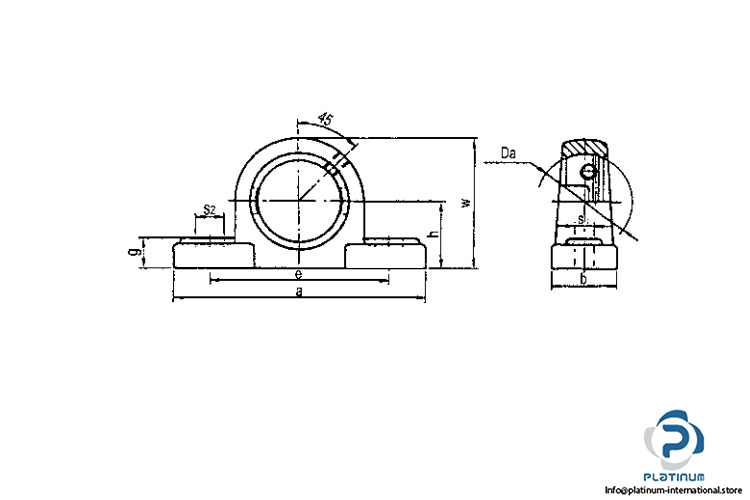

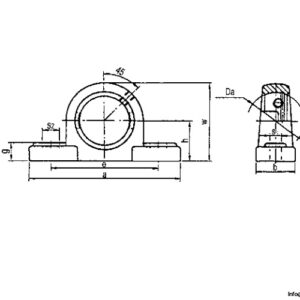

Dimensions
Bore Diameter d: 35 mm
Overall length a: 168 mm
Overall height w: 94.5 mm
Overall Width b: 48 mm
Distance Between Attachment Bolts e: 127 mm
Mounting hole length s2: 18 mm
Height of spherical seat center h: 47.6 mm
Housing type: Pillow Block
Housing Color: White
Material, housing: Plastic
Material, bearing: Stainless Steel
