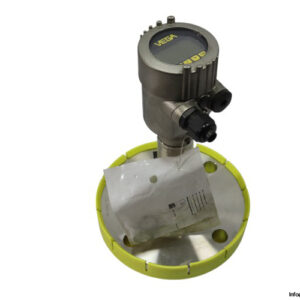

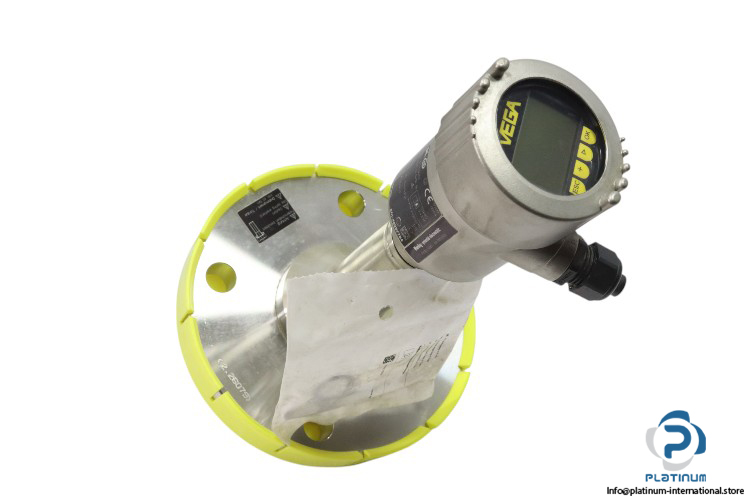

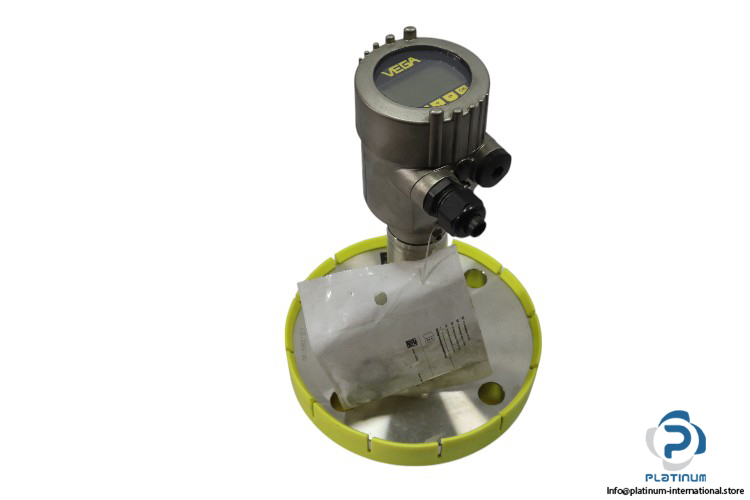

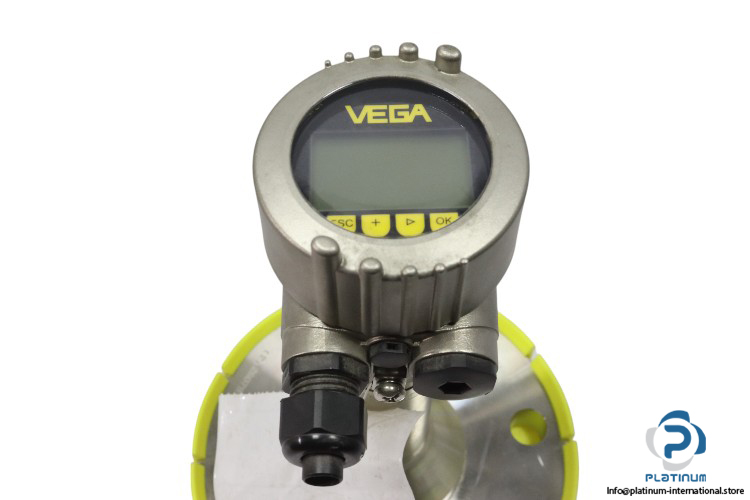

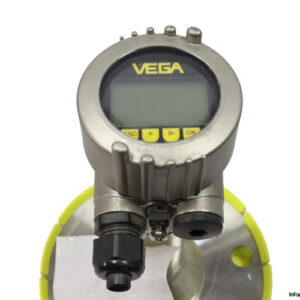

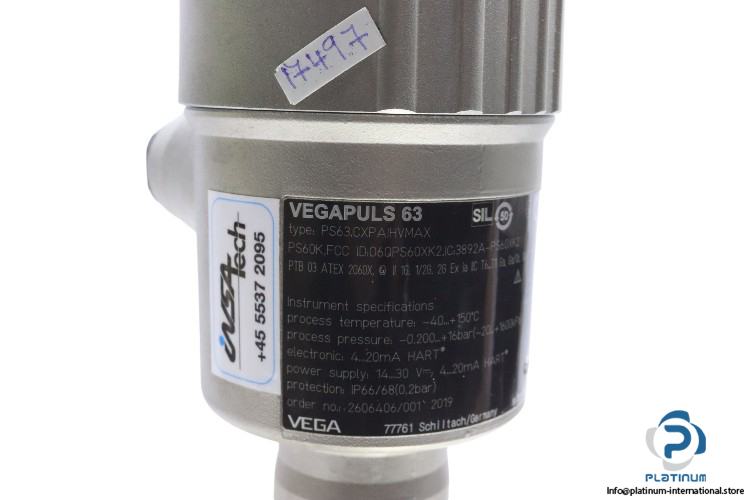

Vega Vegapuls 63 Radar Sensor
1 299,99$
Radar Sensor for Continuous Level Measurement
The Vega VEGAPULS 63 radar sensor offers a measuring range of 35m, ±2mm accuracy, and a 26 GHz frequency. It is ideal for continuous liquid level measurement in industrial applications, with protection ratings of IP66/IP68 and a hygienically encapsulated horn antenna.Vega VEGAPULS 63 Radar Sensor for Continuous Level Measurement of Liquids
The Vega VEGAPULS 63 is a high-performance radar sensor designed for the continuous level measurement of liquids in industrial applications. With its advanced technology, it ensures precise measurements, reliability, and efficiency even in harsh environments. This sensor is suitable for various liquid types, providing accurate results regardless of the process conditions.

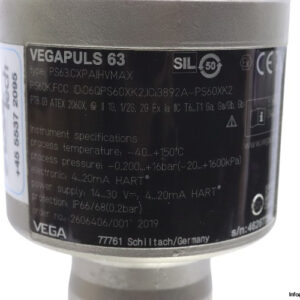

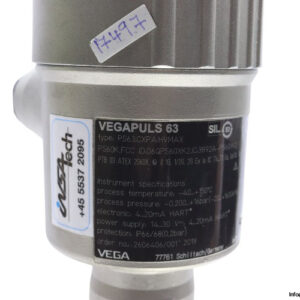

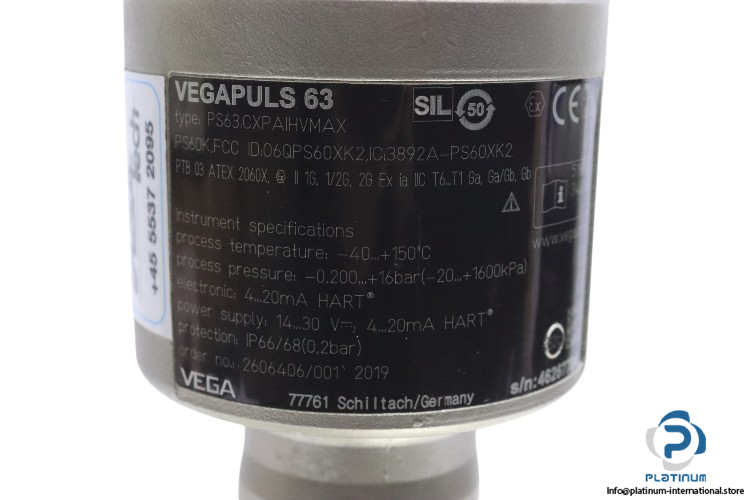

Manufacturer: Vega
Type: Radar Sensor for Continuous Level Measurement of Liquids
Model: VEGAPULS 63
Part No.: PS63.CXPAIHVMAX / PS60K.FCC
Order No.: 2606406/001
ID. NO.: O6QPS60XK2, IC, 3892A-PS60XK2
The Vega VEGAPULS 63 radar sensor offers a robust and accurate solution for continuous liquid level measurement, providing reliable performance even in the most demanding environments.
| Power Supply | 14 to 30 V DC |
| Measuring Range (Distance) | 35 m |
| Process Pressure | -0.200 to 16 bar |
| Accuracy | ± 2 mm |
| Frequency | 26 GHz |
| Beam Angle | 10° |
| Output | 4 to 20 mA/HART |
| Version | Hygienically encapsulated horn antenna |
| Materials (Wetted Parts) | PFA, PTFE, 316L, TFM-PCTFE, TFM-PTFE |
| Flange Connection | DN50, 2 inches |
| Housing Material | Plastic, Aluminum, Stainless Steel (precision casting), Stainless Steel (electropolished) |
| Protection Rating | IP66/IP68 (0.2 bar) |
| Process Temperature | -40 to 150 °C |
| Ambient Temperature | -40 to 80 °C |
