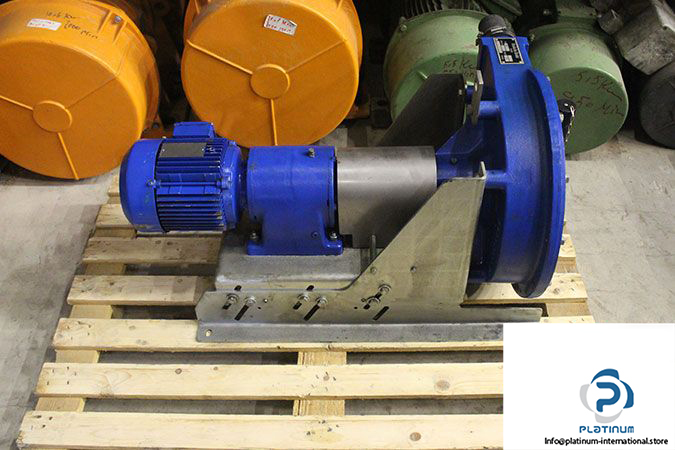

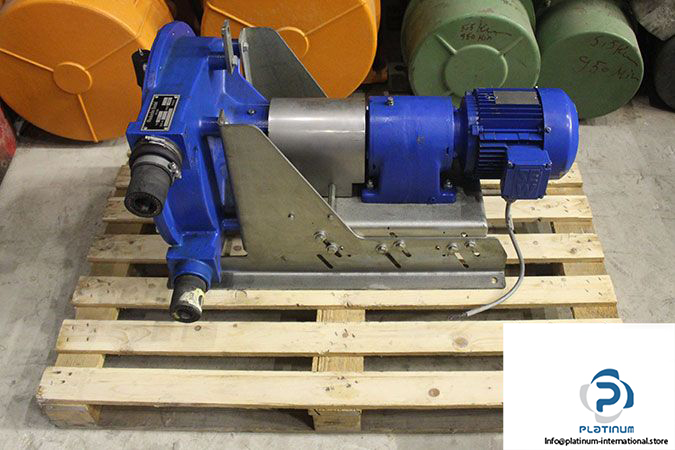

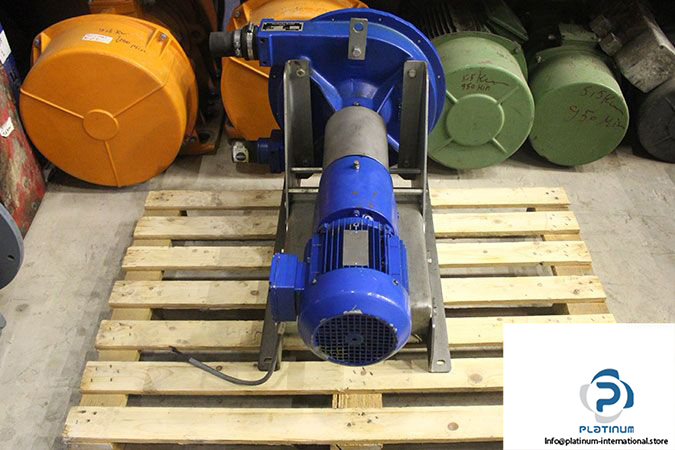

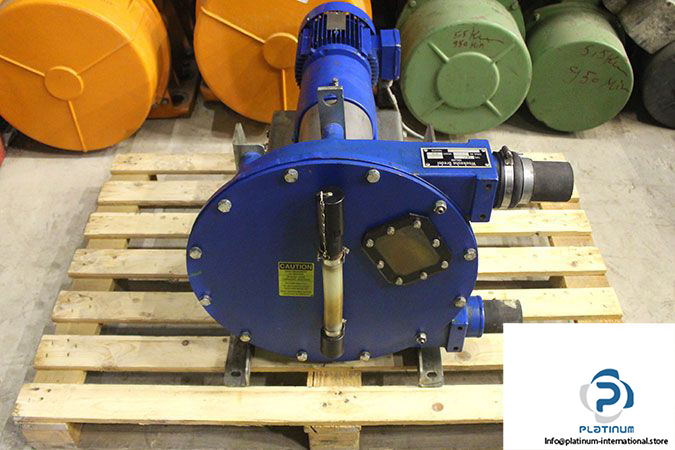

Waukesha Bredel SP/32 Positive Displacement Pump

Manufacturer: Waukesha Bredel

Type: Positive Displacement Pump

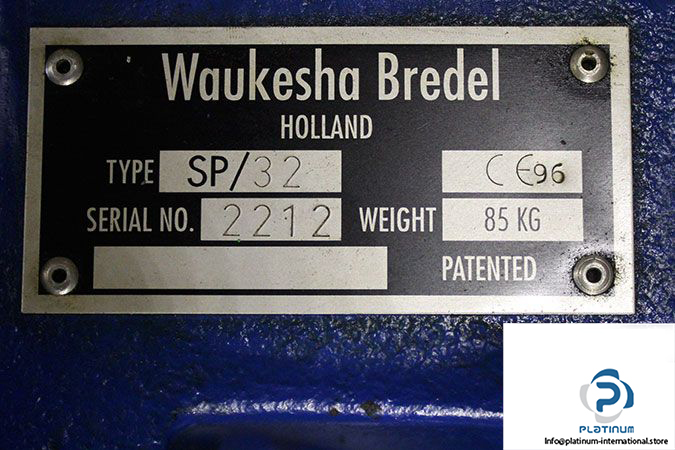

Model: SP32

Serial No.: 2212

Material Pump Housing: Cast-Iron

Material Pump Rotor: Cast-Iron

Max. Capacity, Continuous [m³/h]: 3.25

Max. Capacity, Intermittently [m³/h]: 5.25

Capacity Per Revolution [l/rev]: 0.625

Max. Permissible Discharge Pressure [kPa]: 1600

Permissible Ambient Temperature [°C]: -20…+45

Permissible Product Temperature [°C]: -10…+80

Sound Level on 1m [dB(A)]: 70

Quantity of Lubricant [L]: 3

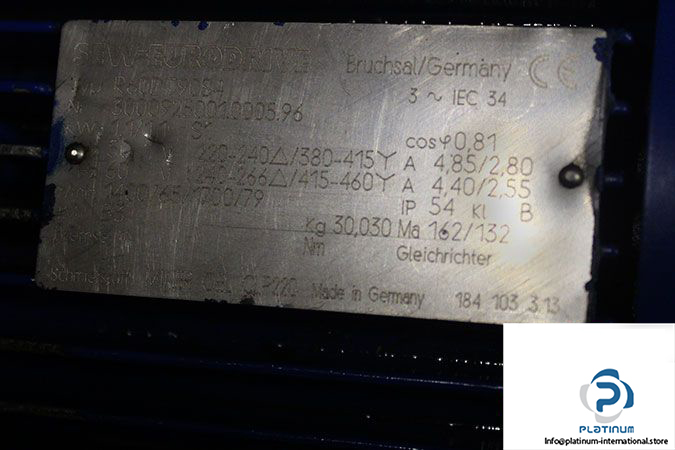

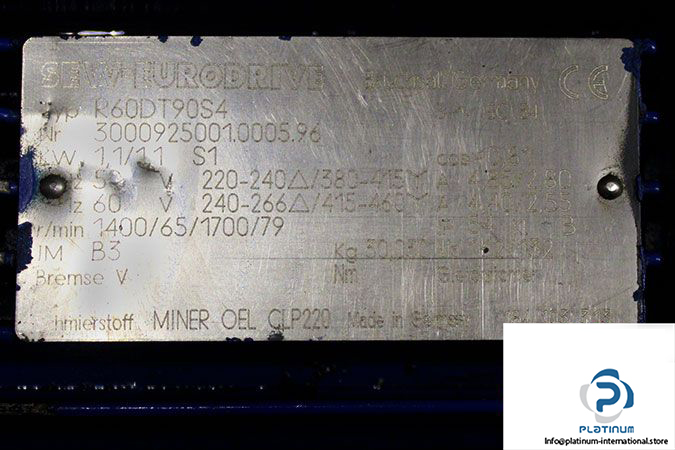

Attachment: SEW R60 DT90S4 HELICAL GEAR MOTOR

Manufacturer: SEW

Type: Helical Gear Motor

Model: R60DT90S4

Gear Unit: R60

Speed 50Hz [r/min]: 1400/65

Speed 60Hz [r/min]: 1700/79

Total Ratio [i]: 21.5

Ma Max [Nm]: 162/132

Mounting Position: B3

Lubricant / -Volume [l]: MINER OEL CLP220

Motor: DT90S4

Motor Power [kW]: 1.1

Cyclic Duration Factor: S1

Multi Range-Voltage 50Hz [V]: 220-240 Delta / 380-415 Star

Rated Current [A]: 4.85/2.80

Multi Range-Voltage 60Hz [V]: 240-266 Delta / 415-460 Star

Rated Current [A]: 4.4 / 2.55

Cos Phi: 0.81

Thermal cl.[°C]/Enclosure [IP]: B / 54

Service Factor Motor: 1.0

International Efficiency Class: IE3

Weight [kg]: 124.7
