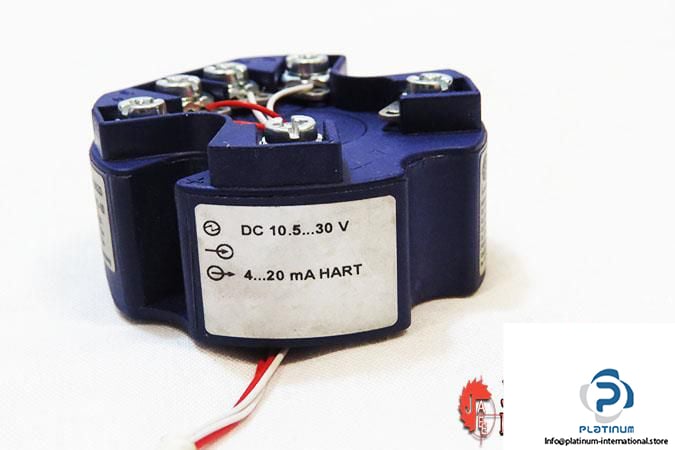

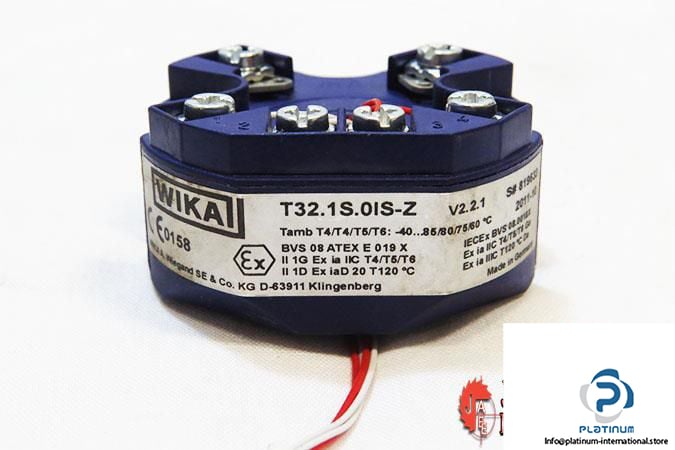

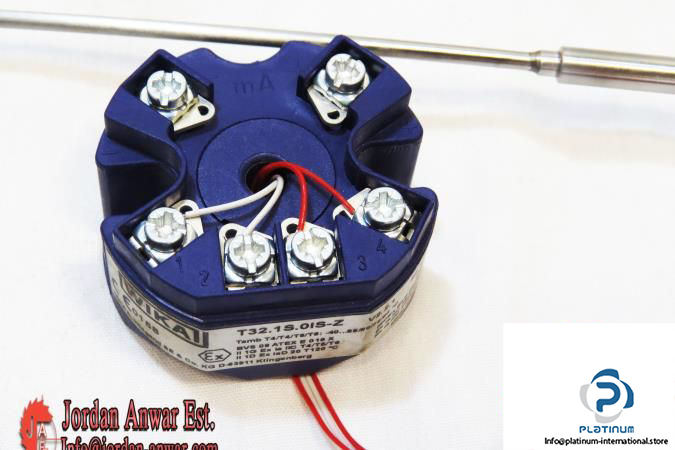

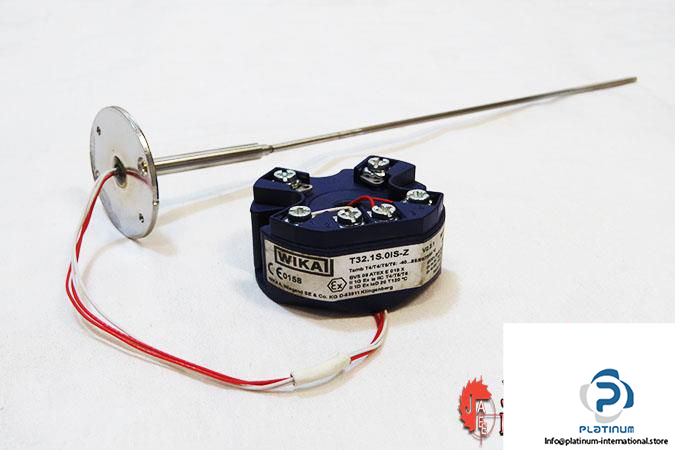

Wika T32.1S.0IS-Z Temperature Transmitter

Manufacturer: WIKA

Type: TEMPERATURE TRANSMITTER

Model: T32.1S.0IS-Z

Version: HEAD MOUNTING

Power Supply: DC 10.5 … 30 V

Sensor Type: Pt100

Output signal: 4 … 20 mA HART

Permissible Ambient Temperature: -40 … +85 °C

Minimum measuring span: 10 K or 3.8 ?

Thermocouple: -50 … +1,768 °C

Connection methods: 1 sensor or 2 sensors

Max. Lead resistance: 5 k? each wire

Cold-junction compensation, configurable: internal compensation or external with Pt100, with thermostat or of Rise time t90 approx. 0.8s

Damping, configurable: off; configurable between 1 s and 60 s

Switch-on time (time to get the first measured value): max. 15 s

Typical measuring rate 2): Measured value update approx. 6/s

Lead resistance effects: 4-wire: no effect (0 to 50 ? each wire)

Ingress protection: IP00

Connection terminals, captive screws, wire cross-section

? Solid wire: 0.14 … 2.5 mm² (AWG 24 … 14)

? Wire with end splice: 0.14 … 1.5 mm² (AWG 24 … 16)

Weight: 0.07 kg

Condition: New
