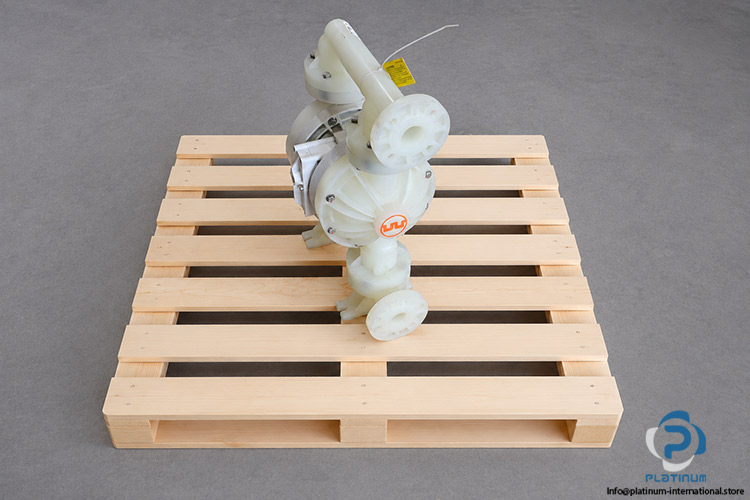

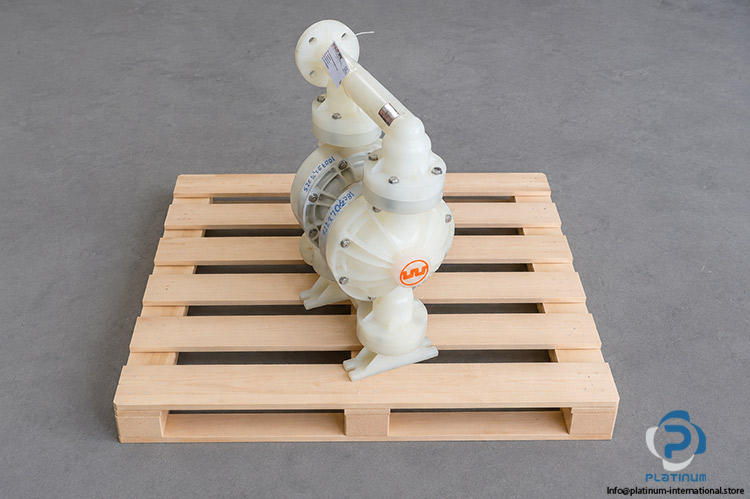

Wilden P400/PPPPP/TWS/TF/PTV/0504 Bolted Plastic Pump
New
Available on request
1 999,99$
Bolted Plastic Pump The WILDEN P400 Series bolted plastic pump is engineered for efficient chemical and industrial fluid handling. Featuring a polypropylene construction, PTFE valve balls, WIL-FLEX™ diaphragms, and a maximum flow rate of 455 lpm, it delivers reliable performance in demanding applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

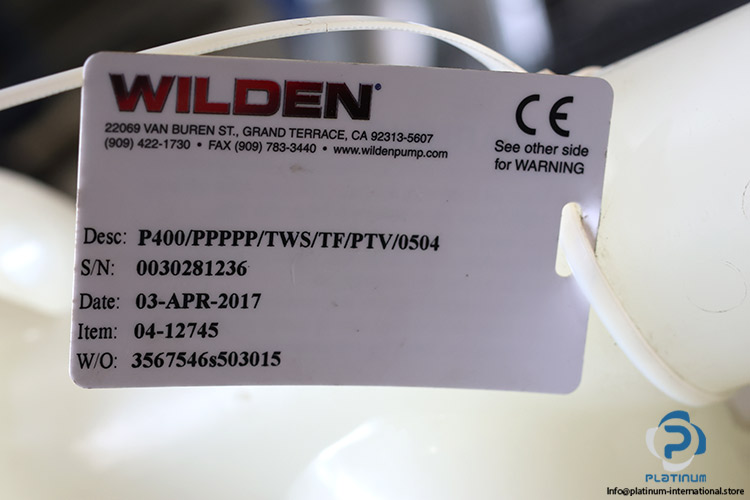

| Ser. No. | 0030281236 |
| Part No. | 04-12745 |

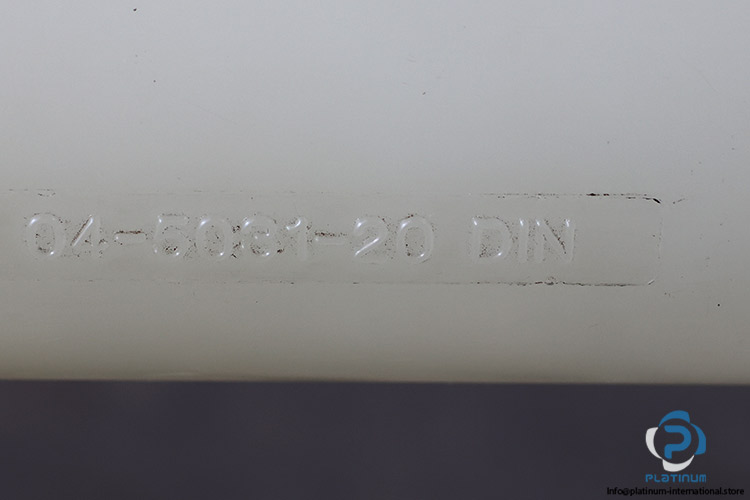

| Alternative Model | 04-5031-20 DIN |
| W/O | 3567546s503015 |
| Series | P400 |
| Pressure Max. | 8.6 bar (125 psi) |
| Flow Rate Max. | 455 lpm (120.1 gpm) |
| Displacement Per Stroke | Rubber 2.75 L (0.73 gal) |
| Air Inlet | G1/2 FNPT |
| Liquid Inlet | 38 mm (1-1/2") |
| Liquid Discharge | 38 mm (1-1/2") |
| Suction Lift Capability Max. | 5.5 m Dry (18.2') |
| Diameter Solids Max. | 6.35 mm (1/4") |
| Diaphragms Material | WIL-FLEX™ [Santoprene®(Orange Dot)] |
| Valve Balls Material | PTFE (White) |
| Wetted Path Material | Polypropylene |
| Outer Piston Material | PVDF |
| Air Chambers Material | Polypropylene |
| Center Block Material | Polypropylene |
| Air Valve Material | Polypropylene |
| Manifold O-Ring Material | PTFE ENCAP. VITON® |
| Valve Seats Material | Polypropylene |
| Connection Type | 20DIN/ANSI (Flanged) |
| Note | Please Inspect All Photos Carefully Before Placing Your Order. Some Items May Show Minor Scratches, Surface Marks, or Signs of Storage Due to their Age. These Cosmetic Imperfections Do Not Affect the Functionality or Performance of the Item. By Purchasing, You Acknowledge and Accept These Cosmetic Conditions as Shown in the Photos. |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1102963 |
| Weight | 18,66 |
