Wilden P800/PKPPP/EPS/EP/PTV/0504 Bolted Plastic Pump
New
In stock1 unitReady to ship
3 699,99$

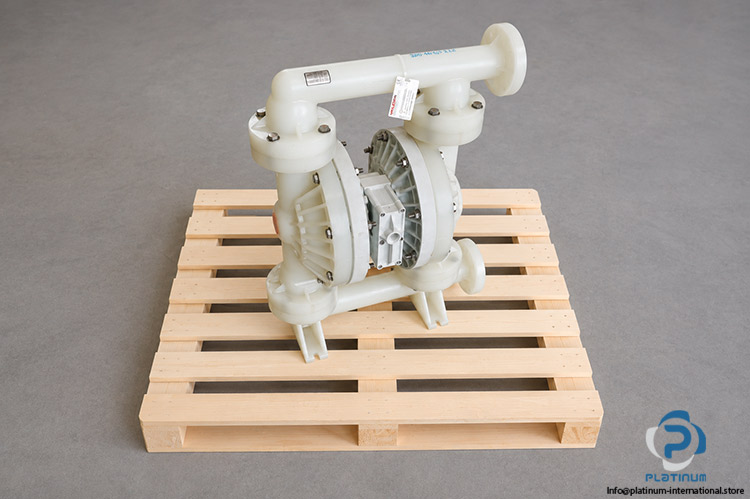

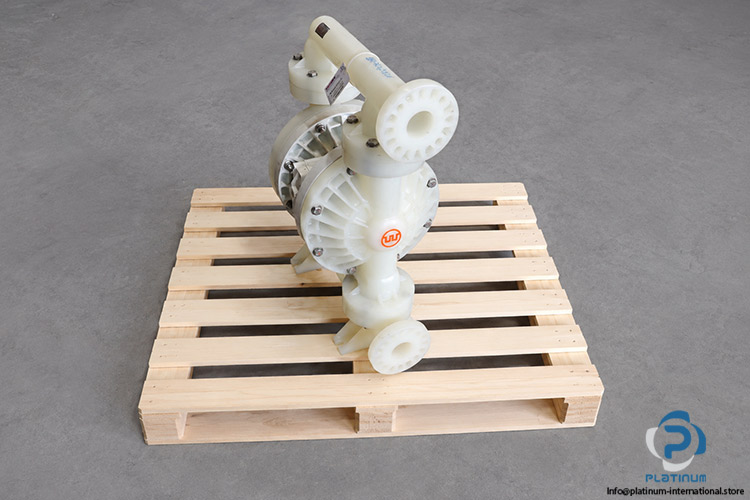

Bolted Plastic Pump The WILDEN P800 Series bolted plastic pump is an air-operated double-diaphragm pump designed for efficient transfer of corrosive, abrasive, and industrial fluids. Its polypropylene construction, EPDM elastomers, and high flow capacity provide reliable performance in demanding process applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

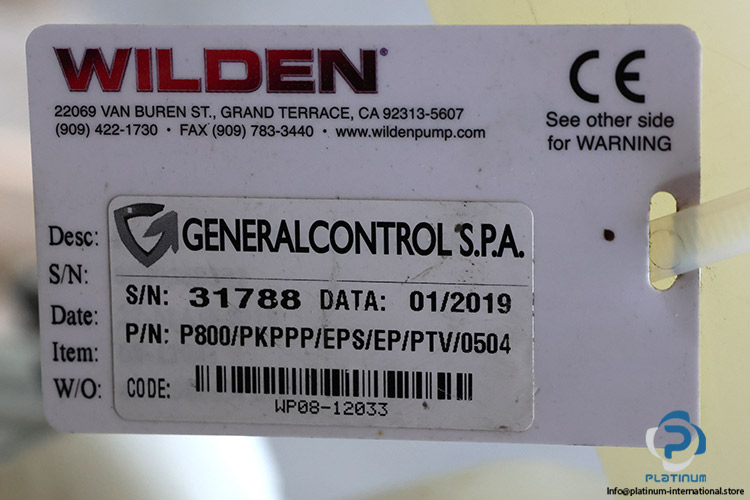

| Ser. No. | 31788 |
| Code | WP08-12033 |

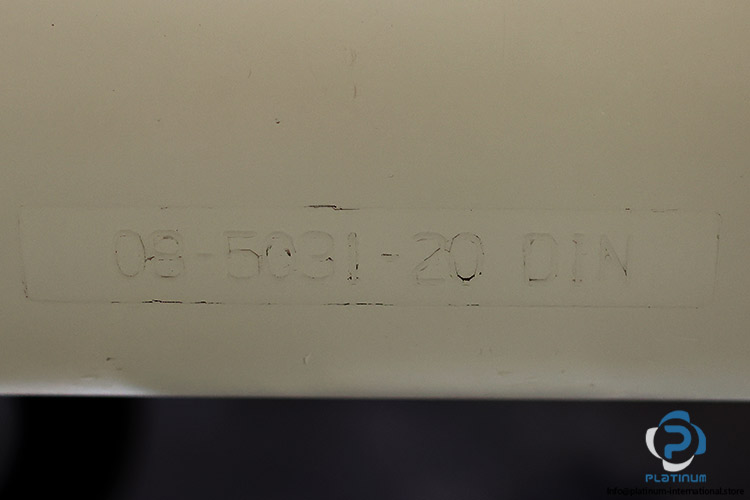

| Alternative Model | 08-5031-20 DIN |
| Series | P800 |
| Pressure Max. | 8.6 bar (125 psi) |
| Flow Rate Max. | 624 lpm (165 gpm) |
| Displacement Per Stroke | Rubber 2.75 L (0.73 gal) |
| Air Inlet | G1/2 FNPT |
| Liquid Inlet | 51 mm (2") |
| Liquid Discharge | 51 mm (2") |
| Suction Lift Capability Max. | Rubber – 6.23 m (20.4') Dry, 8.66 m (28.4') |
| Diameter Solids Max. | 6.4 mm |
| Diaphragms Material | EPDM (Blue Dot) |
| Valve Balls Material | EPDM (Blue Dot) |
| Wetted Path Material | Polypropylene |
| Outer Piston Material | PVDF |
| Air Chambers Material | Polypropylene |
| Center Block Material | Polypropylene |
| Air Valve Material | Polypropylene |
| Manifold O-Ring Material | PTFE ENCAP, FKM |
| Valve Seats Material | Polypropylene |
| Connection Type | 20 DIN/ANSI (Flanged) |
| Note | Please Inspect All Photos Carefully Before Placing Your Order. Some Items May Show Minor Scratches, Surface Marks, or Signs of Storage Due to their Age. These Cosmetic Imperfections Do Not Affect the Functionality or Performance of the Item. By Purchasing, You Acknowledge and Accept These Cosmetic Conditions as Shown in the Photos. |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1102962 |
| Weight | 32,44 |
