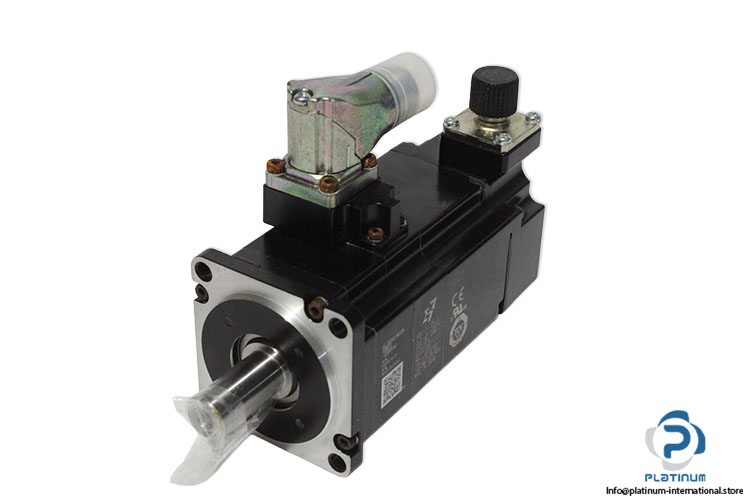

Yaskawa SGM7J-02DFF6C AC Servomotor

In stock1 unitReady to ship

AC Servomotor YASKAWA SGM7J series AC servomotor featuring 0.2 kW rated output, 24-bit incremental encoder, 24 VDC holding brake, and a maximum speed of 6000 rpm for precision industrial motion control applications.

Manufacturer
YASKAWA
SKU
1100386
Category
Servo Motors
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Part No.5G0344-96-15
S/ND0161E757210015
Ref No100-144-452
SeriesSGM7J
Power input power400V
Rated output0.2 kW
Rated Current1.5 A
Frequency250 hz
Shaft endStraight with key and tap
Encoder resolution24 bits
Encoder typeIncremental
OptionsWith holding brake (24 VDC)
Height106.5 mm
Width60mm
Depth148.5 mm
CertificateTUV, SUD
Allowable Load Moment of Inertia15 Times
Rated torque0.637 Nm
Instantaneous maximum torque2.23 Nm
Rated Motor Speed3000 rpm
Maximum engine speed6000 rpm
Motor Moment of Inertia0.333 x10?4 kg m²
Flange Dimension (LC)60mm
Flange Diameter (LA)70mm
Shaft End Diameter (S)14 mm
Shaft End Length (Q)30mm
Connectioncircular connector
Stock keyCON003
ConditionNew
SKU1100386
Weight1,62
