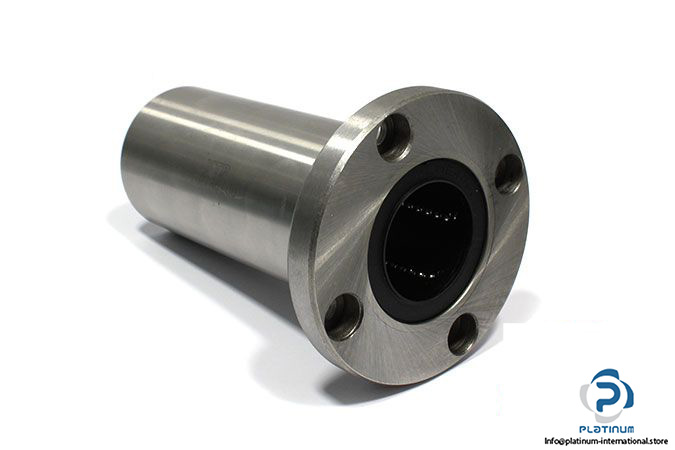

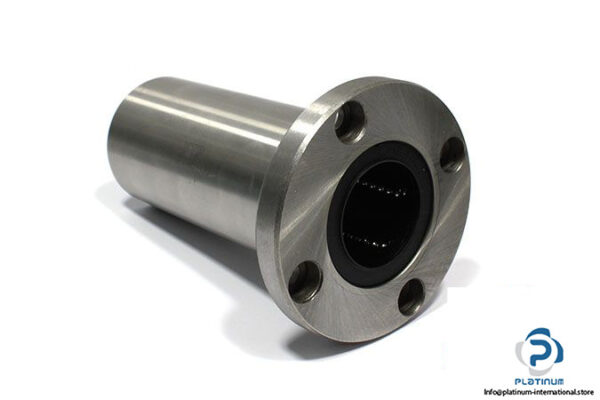

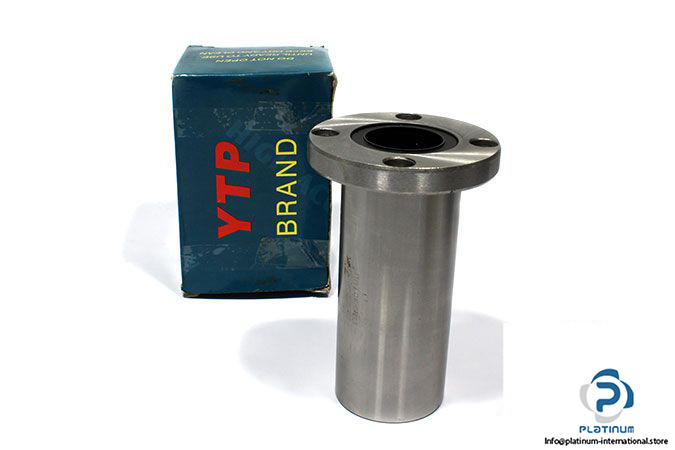

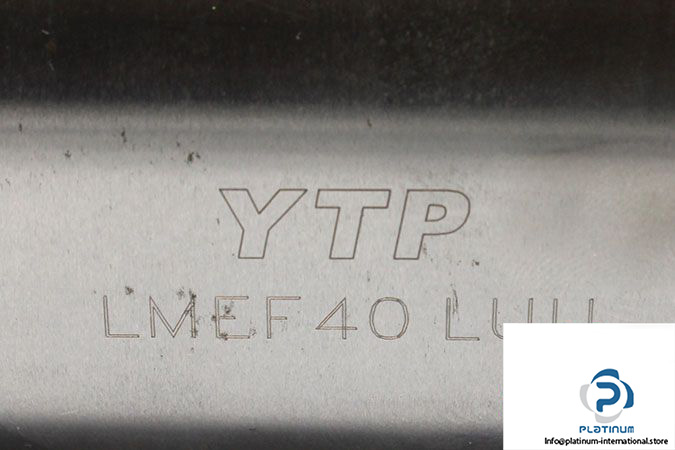

YTP Lmef 40 LUU Flange Linear Ball Bushing

Manufacturer: YTP

Type: Linear Bushing

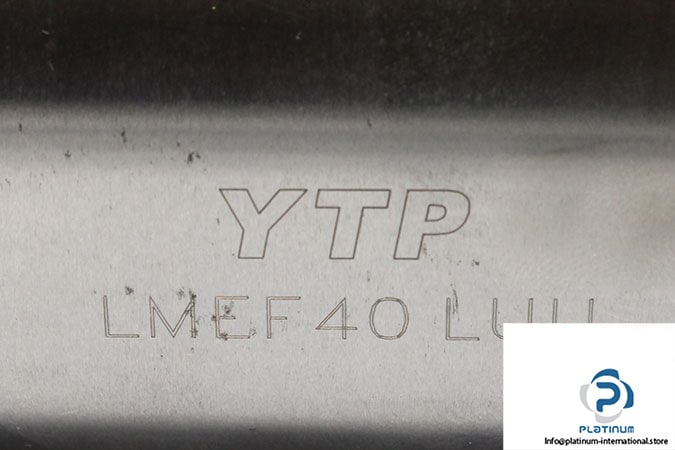

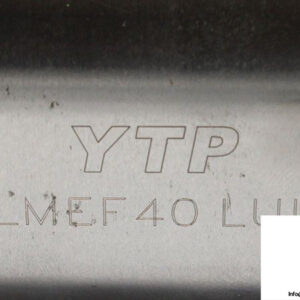

Model: LMEF40LUU

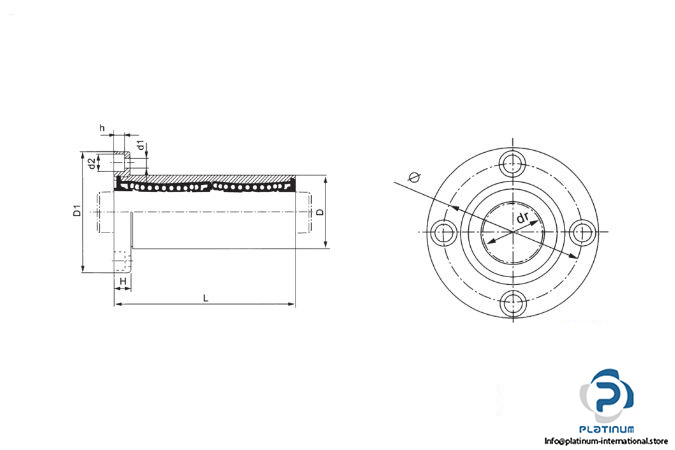

Dimensions:

Inner diameter dr: 40 mm

Outer diameter D: 62 mm

Length L: 151 mm

Flange diameter D₁: 98 mm

Design type: Flange, Long, Closed

Rows of Balls: 6

Dynamic load rating C: 350 kgf

Static load rating: 820 kgf

Seals: UU, With two end seals

Weight: 1.75 kg
