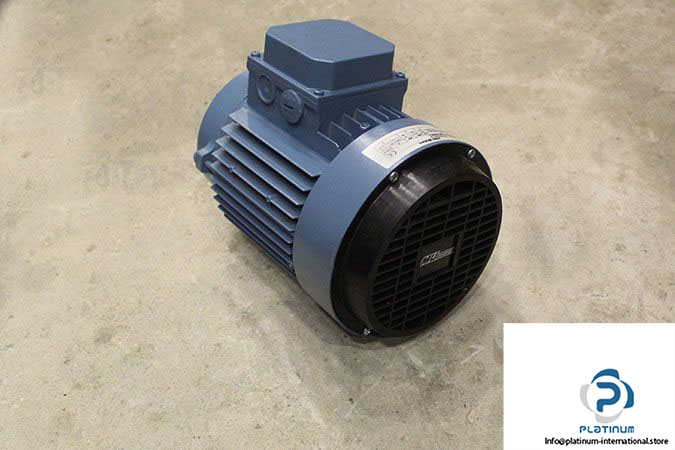

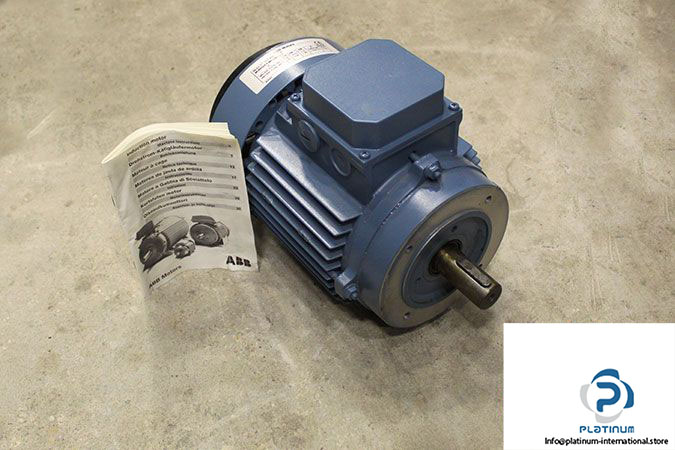

ABB MU90S24-4 MK129300-S 3 Phase Electric Motor

Manufacturer: ABB

Type: 3 Phase Electric Motor

Model: MU90S24-4MK129300-S

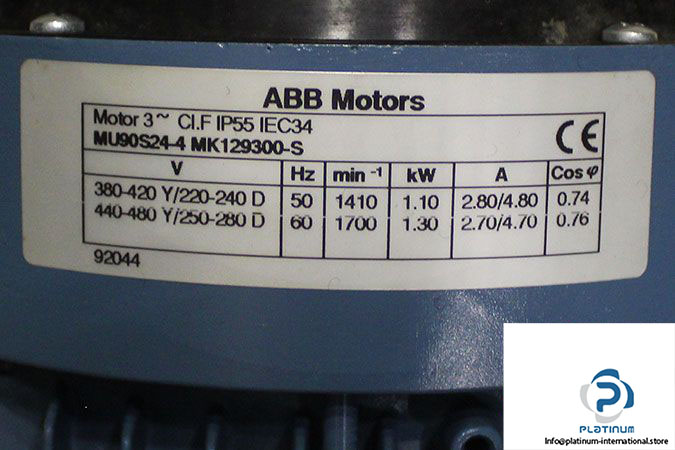

At 50 Hz

Rated Voltage (Star): 380…420 V

Rated Voltage (Delta): 220…240 V

Rated Speed: 1410 min^-1

Rated Power: 1.1 kW

Rated Current (Star): 2.8 A

Rated Current (Delta): 4.8 A

Power Factor: 0.74

At 60 Hz

Rated Voltage (Star): 440…480 V

Rated Voltage (Delta): 250…280 V

Rated Speed: 1700 min^-1

Rated Power: 1.3 kW

Rated Current (Star): 2.7 A

Rated Current (Delta): 4.7 A

Power Factor: 0.76

Shaft Diameter: 24 mm

Flange Diameter: 140 mm

Number of Poles: 4

Motor Size: 90S

Protection Class: IP55

Insulation Class: F
