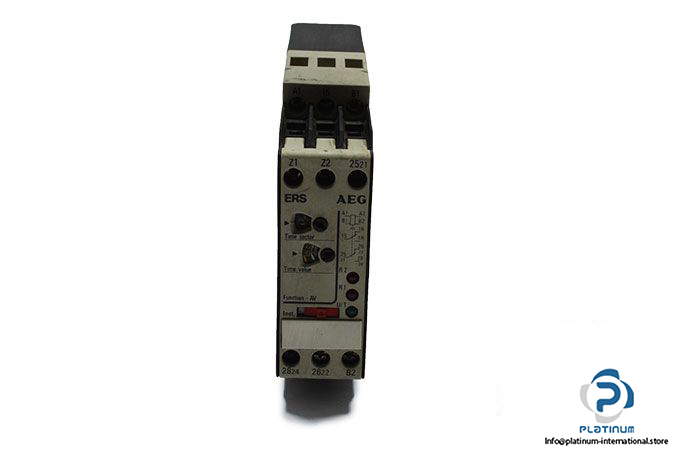

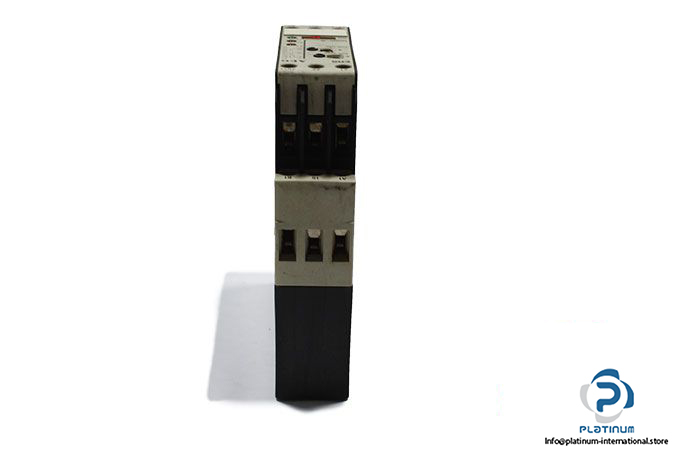

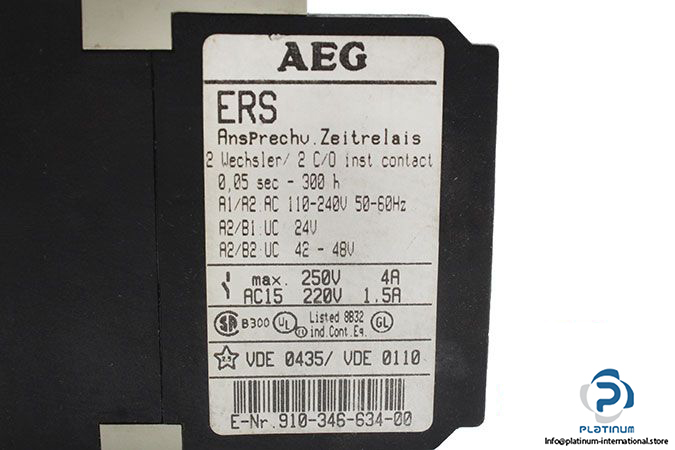

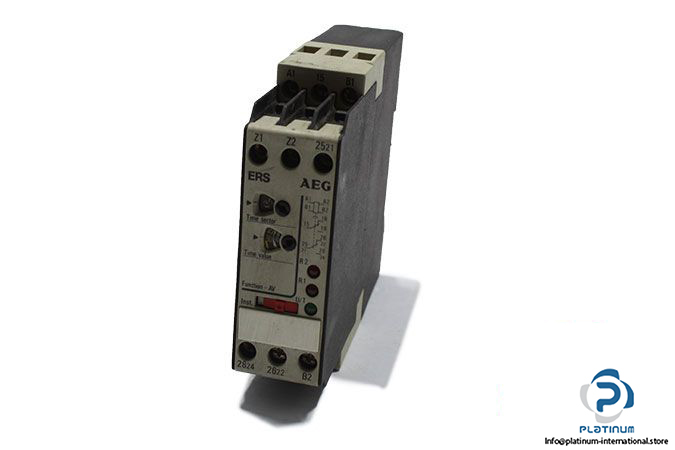

AEG ERS Time Delay Relay
Manufacturer: AEG
Type: Time Delay Relay
Model: ERS
MPN: 910-346-634-0
Supply Voltage: 110 … 240 V AC
Power Consumption: approx. 2.5…12 VA
Frequency: 50/60 Hz
Rated Switching Voltage: 250 V AC
Output: 2changesover contact (CO)
Rated Switching Current Max.: 4 A
Rated Switching Current AC 15: 1.5 A
Time Range: 0.05 s … 300 hrs
Operating Temperature: -25 … +65°C
Dimensions: 22.5 X 78 X 100 mm
