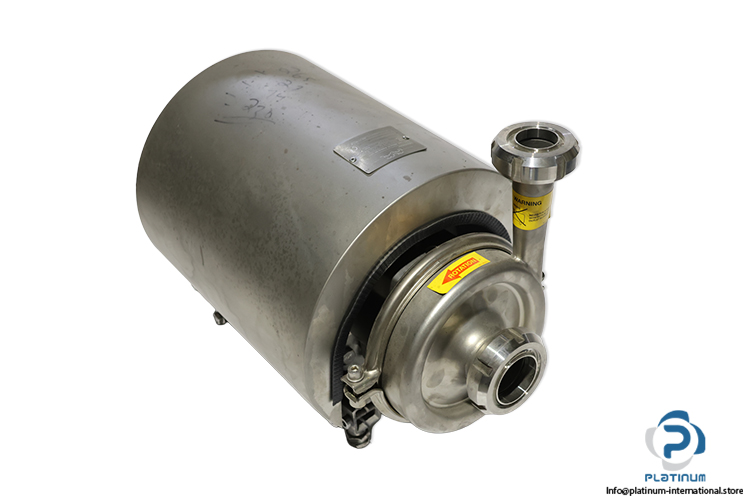

Alfa LKH-5/132 SSS 1.5KW Pump
Novo
Em estoque1 unidadePronto para envio
2 999,99$
Pump ALFA LKH-5/132 SSS industrial pump with 1.5 kW rated power, 6 bar max inlet pressure, DN 50 inlet, DN 40 outlet, and WEG W22 Premium IE3 electric motor.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

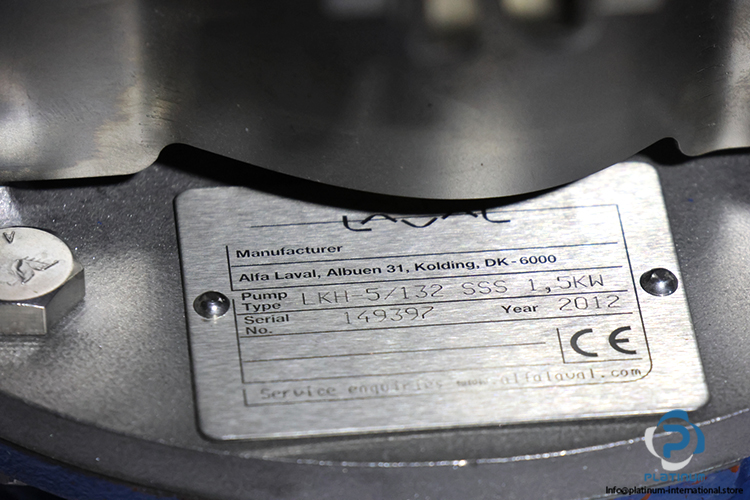

| ref no. | 49397 |
| Series | LKH |
| Max Inlet Pressure [bar] | 6 |
| Rated Power [kW] | 1.5 |
| Pump inlet, dia. | 51 mm, DN 50 |
| Pump outlet, dia. | 38 mm, DN 40 |
| Temperature range | -10°C to +140°C |
| Connections for flushed and double mechanical shaft seal | g1/8 |

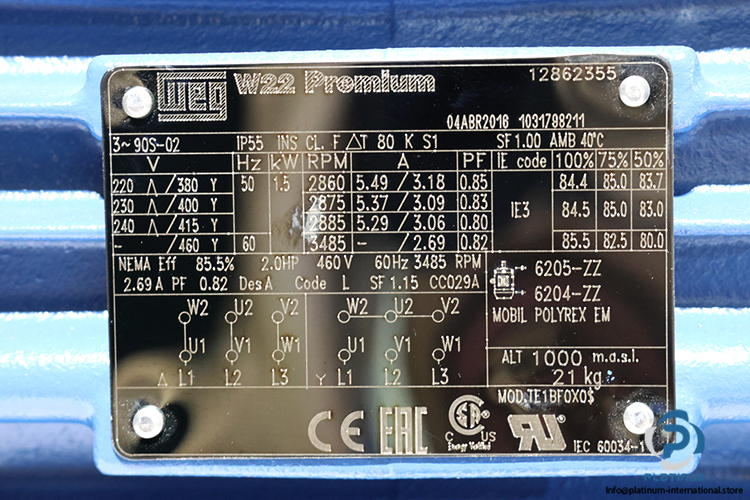

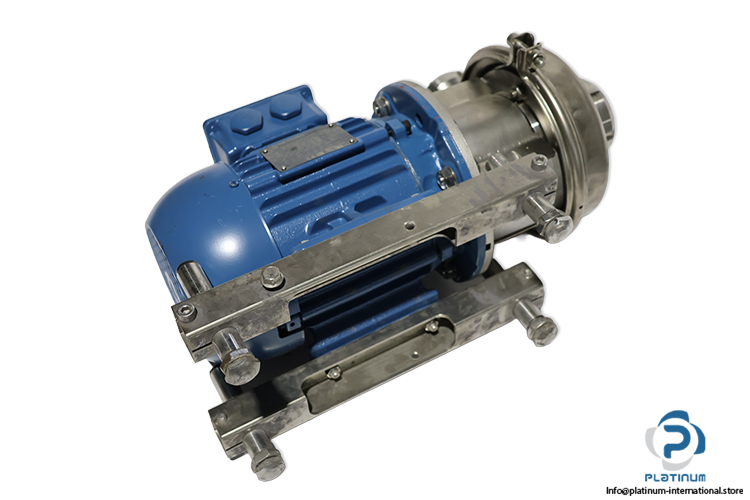

| Attached with | WEG 90S-02 ELECTRIC MOTOR |
| Line | W22 Premium |
| Ref No | 04ABR2016 1031798211 |
| Output Power | 1.5 kW (2.0 HP at 60 Hz) |
| Efficiency Class | IE3 (Premium Efficiency) |
| Enclosure Rating | IP55 |
| Connection at 50 Hz | ?/ Y |
| Rated Voltage (V) at 50 Hz | 220 / 380 V, 230 / 400 V, 240 / 415 V |
| Full-Load Current (A) at 50 Hz | 5.49 / 3.18 A, 5.37 / 3.09 A, 5.29 / 3.06 A |
| Speed (RPM) at 50 Hz | 2860 RPM, 2875 RPM, 2885 RPM |
| Power Factor (PF) at 50 Hz | 0.85, 0.83, 0.80 |
| Efficiency (100% Load) at 50 Hz | 84.4%,84.5%,85.5% |
| Connection at 60 Hz | Y |
| Rated Voltage (V) at 60 Hz | 460 V |
| Full-Load Current (A) at 60 Hz | 2.69 A |
| Speed (RPM) at 60 Hz | 3485 RPM |
| Power Factor (PF) at 60 Hz | 0.82 |
| Efficiency (100% Load) at 60 Hz | 85.5% |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101288 |
| Weight | 37,3 |
