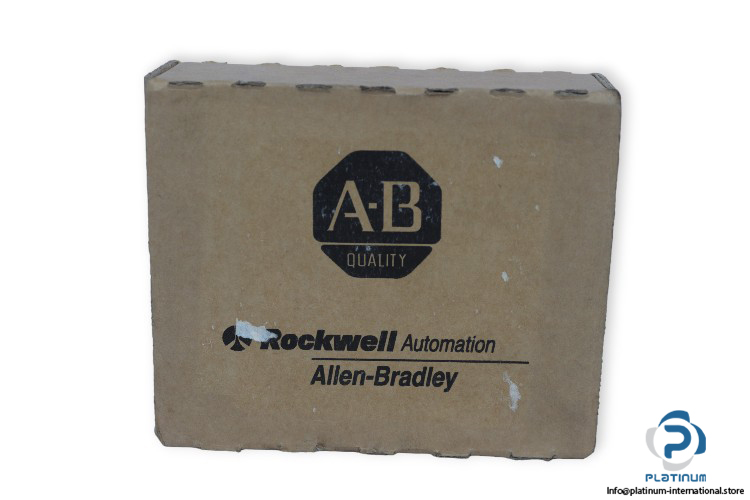

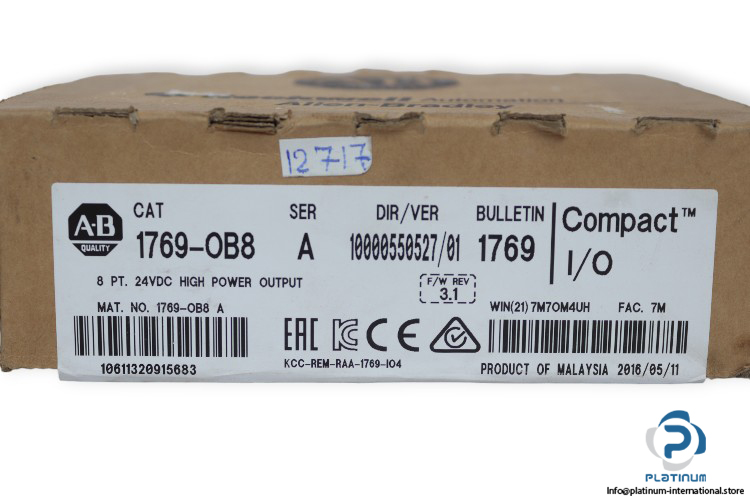

Allen Bradley 1769-OB8 Digital Output Module

Manufacture: Allen Bradley
Type: Digital Output Module / High-current output module
Model: 1769OB8
Part No: 10000550527/01
Series: A

Voltage Category: 24 V DC
Operating Voltage Range: 20.4…26.4 V DC
No. of Digital Output (DO): 8
Current Draw @ 5.1V: 145 mA
Heat Dissipation, Max: 2.20 W
Output delay: on=0.1 ms / off=1 ms (@ 60 °C max load 2 A)
Off-State Leakage Current, Max: 1.0 mA @ 26.4V DC
On-state current, min: 1.0 mA
On -State Voltage, Max: 1.0 V DC at 2 A
Surge current: 4 A for 10 ms
Vibration: 10 … 500 Hz
Slot width: 1
Operating Temperature: 0 … 60 °C
Dimensions: 118 X 35 X 87 mm
