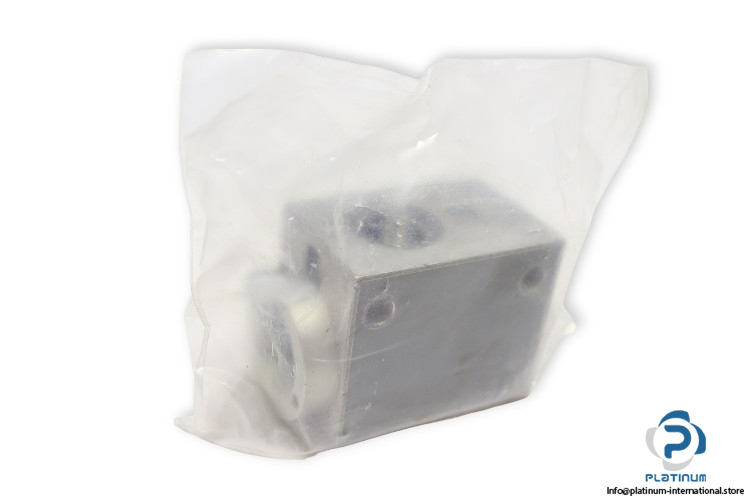

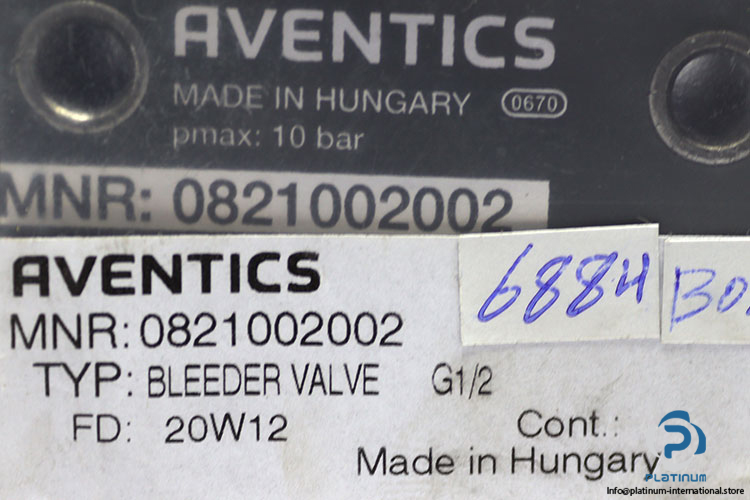

Aventics 0821002002 Quick Exhaust Valve
Manufacturer: AVENTICS
Type: Quick exhaust valve
Model: 0 821 002 002
Medium: Compressed air
Compressed air connection input: G 1/2
Compressed air connection 2: G 1/2
Port 3 (Exhaust): G 3/4
Nominal flow Qn 1 to 2: 3500 l/min
Nominal flow Qn 2 to 3: 7000 l/min
Working pressure min.: 0.5 bar
Working pressure max: 10 bar
Ambient Temperature: 0 … 80 °C
Housing material: Aluminum
