Aventics R412019040 Mini Slide
Usado
Em estoque1 unidadePronto para envio
Mini Slide
The AVENTICS MSC 25-100 is a double-acting pneumatic mini slide with a 25 millimeter bore, 100 millimeter stroke, and anodized aluminum housing for precise and durable linear motion control.1002525-1008ActingActuatorAluminumAventicsbyComponentCylinderDoubleG1IndustrialMinimmMSCPneumaticPortSeriesSlideStroke
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

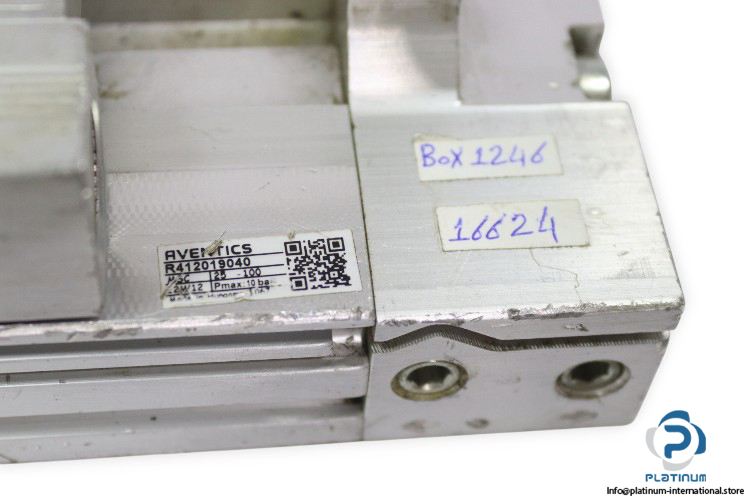

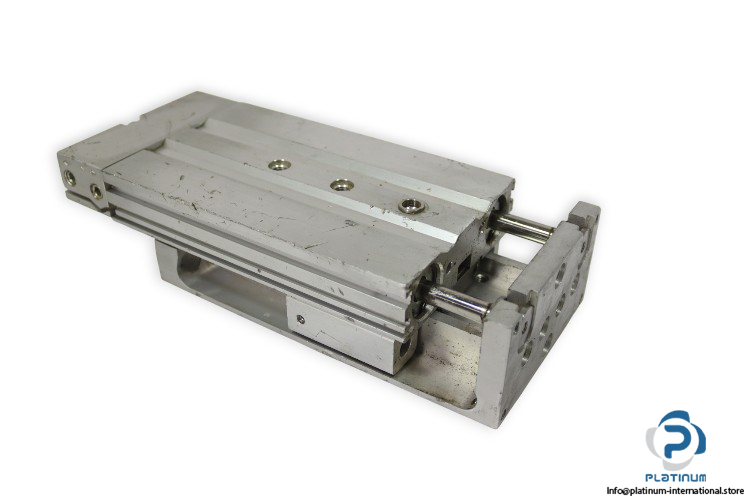

AVENTICS MSC 25-100 Mini Slide
The AVENTICS MSC 25-100 Mini Slide is a compact and precise pneumatic actuator designed for accurate linear motion in automation systems. It features a double-acting design, high durability, and maintenance-free operation, making it ideal for various industrial applications.
Manufacturer: AVENTICS
Type: Mini Slide
Model: MSC 25-100
MNR: R412019040
Series: MSC
| Operating Mode | Double acting |
| Maximum Operating Pressure | 10 bar |
| Temperature Range | 0 to 60 degree Celsius |
| Maximum Particle Size | 5 micrometers |
| Oil Content of Compressed Air | 0 to 1 milligram per cubic meter |
| Pressure for Determining Piston Forces | 6.3 bar |
| Medium | Compressed air, lubricated or oil free |
| Lubrication | Maintenance free |
| Housing | Aluminum, anodized |
| Piston Rod | Stainless steel |
| Front Plate | Aluminum, anodized |
| Cylinder Diameter | 25 millimeters |
| Stroke | 100 millimeters |
| Port Size | G1 by 8 |
