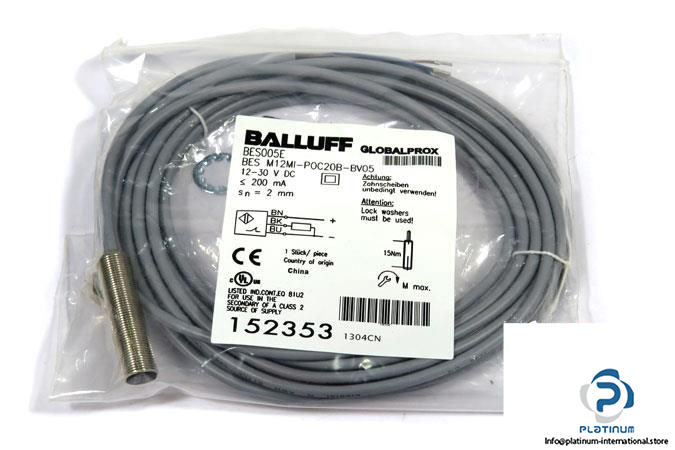

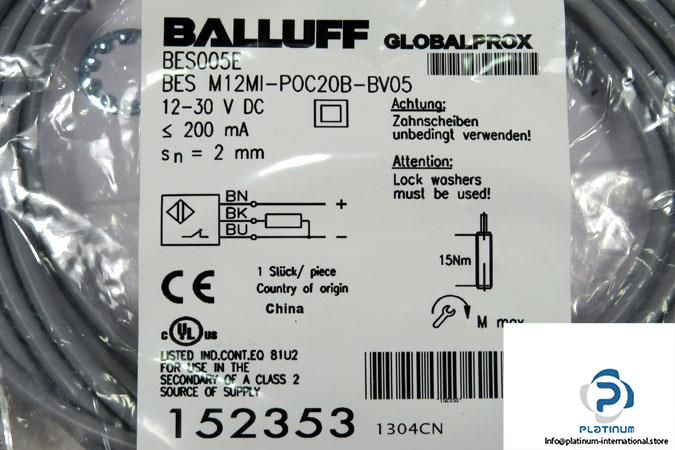

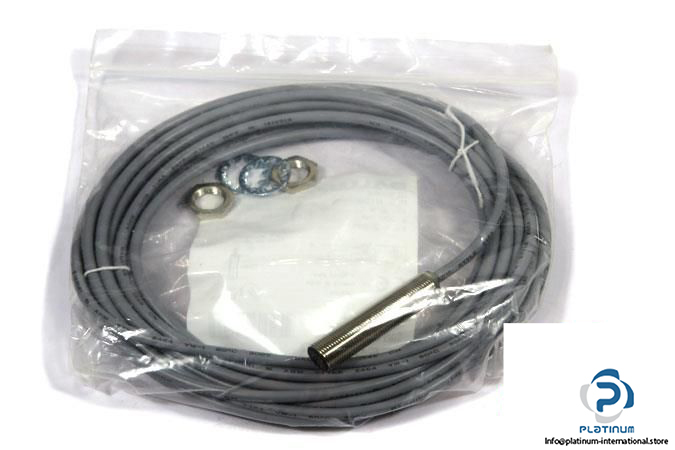

Balluff BES M12MI-POC20B-BV05 Inductive Sensor

Manufacturer: BALLUFF

Type: INDUCTIVE SENSOR

Order Code: BES005E

MRN: BES M12MI-POC20B-BV05

Sensing Range: 2 mm

Operating Voltage: 10 … 30 V DC

Switching frequency: 3500 Hz

Switching output current: 200 mA DC

Electrical design: PNP

Output Function: Normally closed

Connector type, length: PVC Cable, 5 m

Protection Class: II

Enclosure rating: IP68

Housing: Threaded type

Ambient Operating temperature: -25 … 70°C

Diameter, Housing length: 12, 53 mm

Material: Nickel-plated brass; sensing face: PBT

Mounting: Flush mountable

Supplied Accessories: 2 lock nuts

Condition: New
