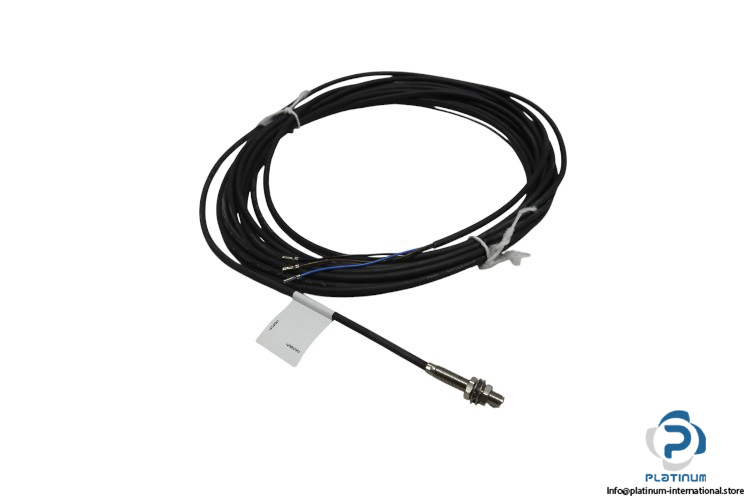

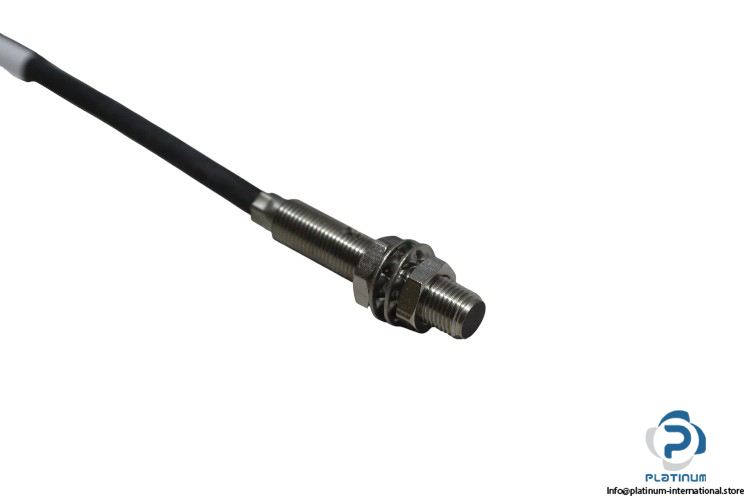

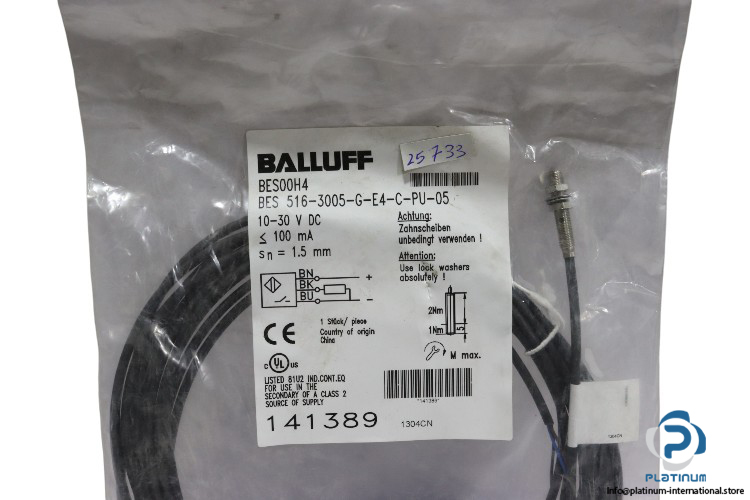

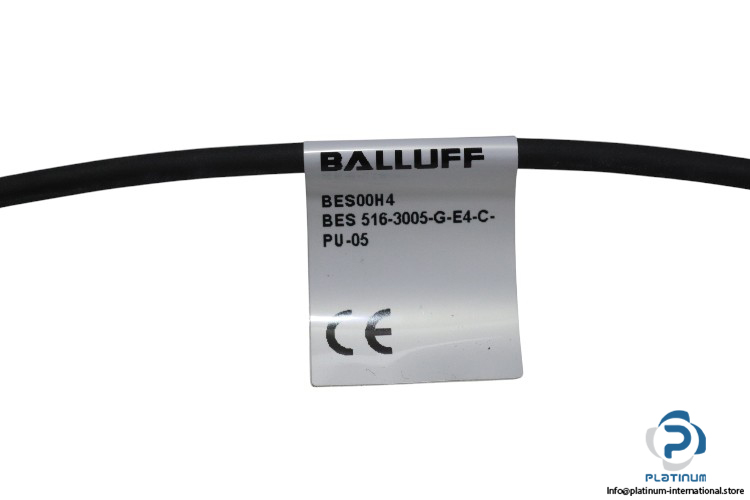

Balluff BES00H4 Inductive Sensor
The Balluff BES00H4 (Part No. BES 516-3005-G-E4-C-PU-05) is a rugged and precise inductive sensor designed for reliable object detection in industrial environments. Featuring a stainless steel housing, PNP output, and IP67 protection, this sensor ensures consistent performance even in harsh conditions.
Manufacturer: Balluff
Type: Inductive Sensor
Model: BES00H4
Part No.: BES 516-3005-G-E4-C-PU-05
| Operating Current (Ie) | 100 mA |
| Operating Voltage (Ue) | 24.0 V DC |
| Rated Insulation Voltage (Ui) | 75 VDC |
| Rated Short Circuit Current | 100 A |
| Switching Function | Normally Open (NO) |
| Switching Output | PNP |
| Connection Type | Cable |
| Cable Jacket Material | PUR |
| Cable Length | 5.00 m |
| Operating Distance | 1.50 mm |
| Degree of Protection | IP67 |
| Housing Material | Stainless Steel |
| Ambient Temperature | -25 to 70 °C |
| Tightening Torque | 1 Nm |
