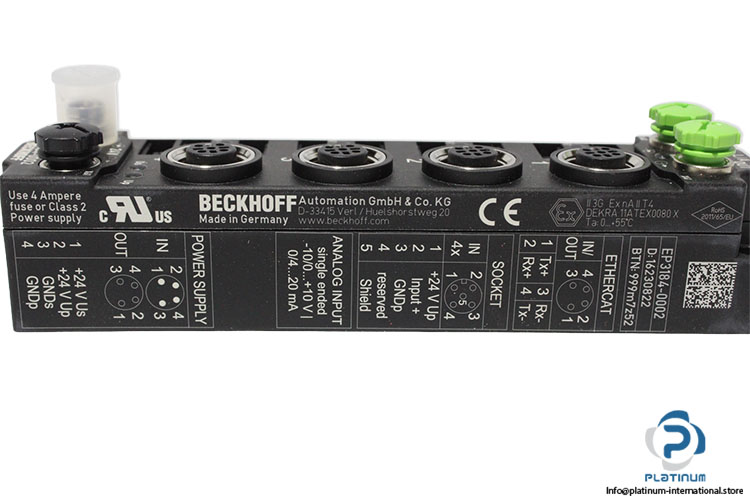

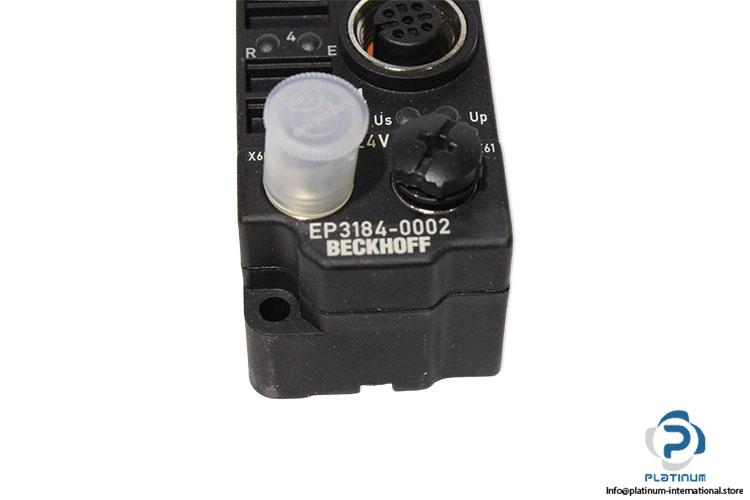

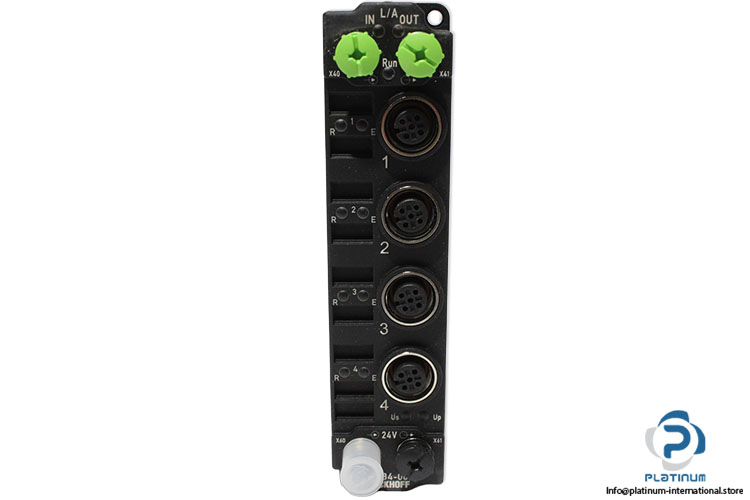

Beckhoff EP3184-0002 Ethercat BOX

Name: BECKHOFF EP3184-0002 ETHERCAT BOX
SKU: 1099700
Availability: LimitedAvailability

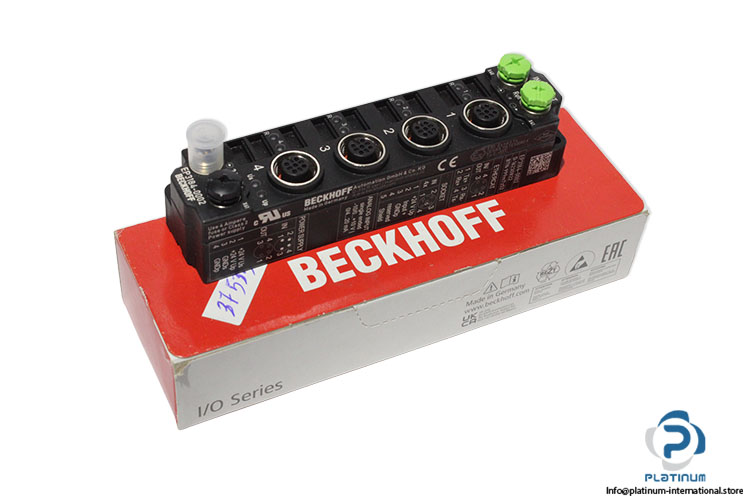

Beckhoff-EP3184-0002-ethercat-box(new-carton)

Beckhoff-EP3184-0002-ethercat-box(new-carton)-1

Beckhoff-EP3184-0002-ethercat-box(new-carton)-2

Beckhoff-EP3184-0002-ethercat-box(new-carton)-3

Beckhoff-EP3184-0002-ethercat-box(new-carton)-4

Novo

Em estoque49 unidadesPronto para envio

EtherCAT Box BECKHOFF EP3184-0002 EtherCAT Box with four configurable analog inputs, 16-bit resolution, EtherCAT communication, IP65/IP66/IP67 protection, and support for voltage and current signal processing.

Fabricante

BECKHOFF

SKU

1099700

Categoria

Passive Junction Blocks

Condição

Novo

Grande Estoque

Envio Global

Suporte Especializado

Qualidade Garantida

Ref No	16230822
BTN	999m7z52
Protocol	EtherCAT
Bus interface	2 x M8 socket, 4-pin, a-coded, shielded
Number of inputs	4 (single-ended), 1 per socket
Input connections	M12 x 1, 5-pin, A-coded
Conversion time	100 µs
Resolution	16 bit (incl. sign)
Signal type	-10/0…+10 V \| 0/4…20 mA, parameterizable per channel
Common mode voltage UCM	max. 35 V
Internal resistance	200 kOhm
Measurement error/uncertainty	±0.3% (relative to full scale value)
Input filter limit frequency	5 kHz
Nominal voltage	24 V DC (-15%/+20%)
Distributed clocks	yes
Input filter	configurable
Sensor supply	from load supply voltage UP
Current consumption from US	120 mA
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded;downstream connection: 1 x M8 female socket, 4-pin, a-coded
Electrical isolation	500 V
Special features	current or voltage parameterizable
Operating temperature	-25…+60°C
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, CCC, UL, ATEX, IECEx
Ex marking	ATEX,II 3 G Ex ec IIC T4 Gc,II 3 D Ex tc IIIC T135 °C Dc
Stock Key	JO-004
Condition	New
SKU	1099700
Weight	0,19
