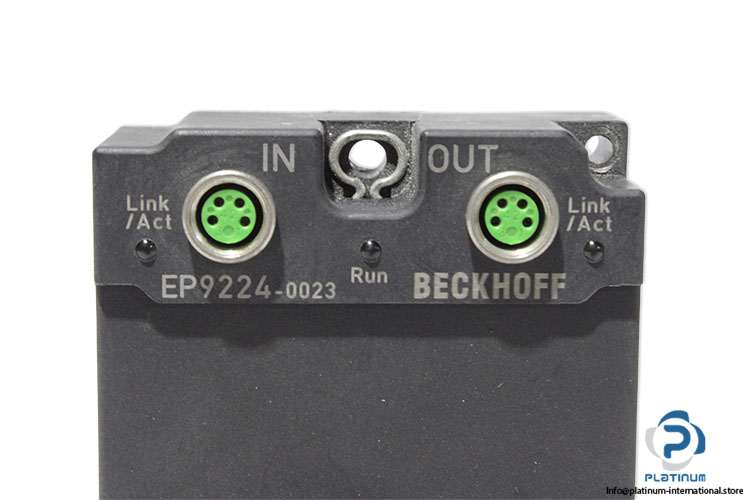

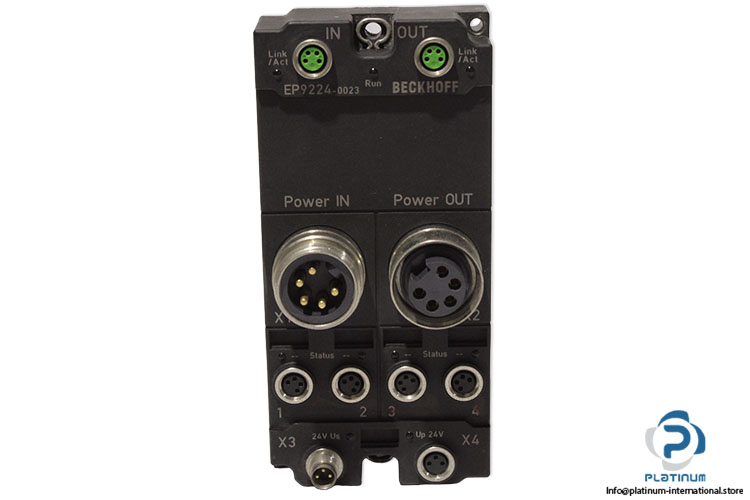

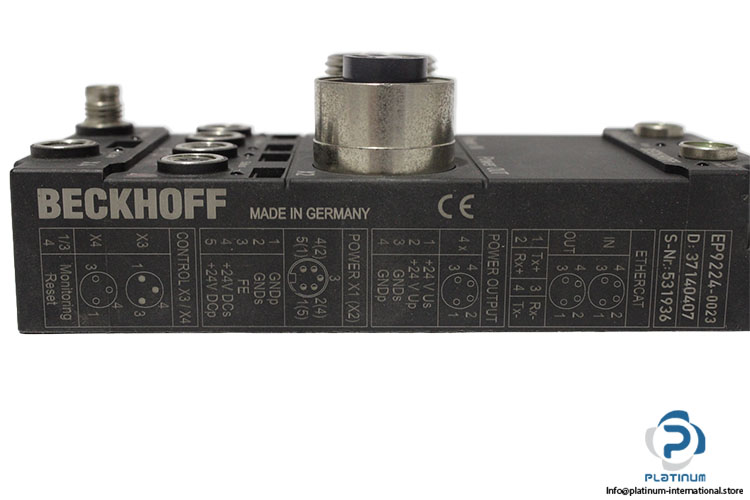

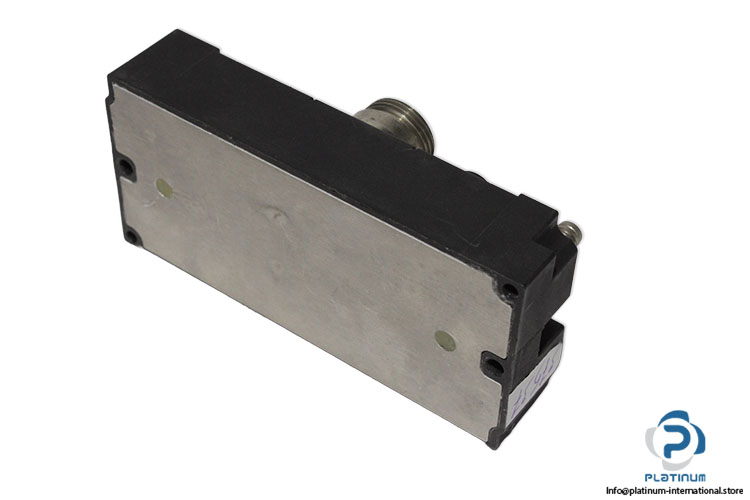

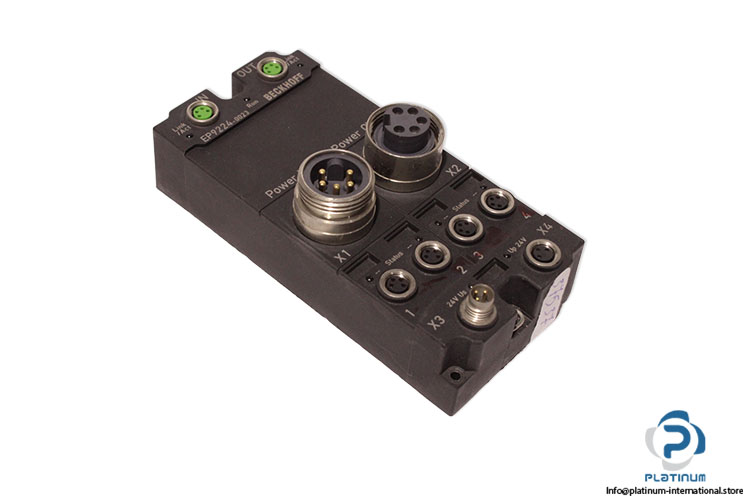

Beckhoff EP9224-0023 Ethercat BOX
Novo
Em estoque2 unidadesPronto para envio
EtherCAT Box BECKHOFF EP9224-0023 EtherCAT Box with 24 V DC operation, IP65/IP66/IP67 protection, integrated data logging, and multiple M8 and M12 connections for industrial EtherCAT applications.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
| Ref No | 37140407 |
| S-Nr . | 531936 |
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Number of outputs | 4 x M8, 4-pin (per US/UP) |
| Connection technology | M8 socket, 4-pin |
| Max. output current | per M8: 4 A per US and UP |
| Load type | EtherCAT Box modules |
| Signaling contact | potential-free make contact, M8 |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Power supply connection | feed, 1 x 7/8" plug, 5-pin; downstream connection: 1 x 7/8" socket, 5-pin |
| Electrical isolation | 500 V |
| Data logging | recording of relevant data in case of failure |
| Special features | input voltages/currents, output currents via process data |
| Operating temperature | -25…+60°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL, Class 2 according to UL1310 |
| Housing data | 16 x M8, 8 x M12 |
| Dimensions (W x H x D) | 60 mm x 126 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4 |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1099702 |
| Weight | 0,44 |
