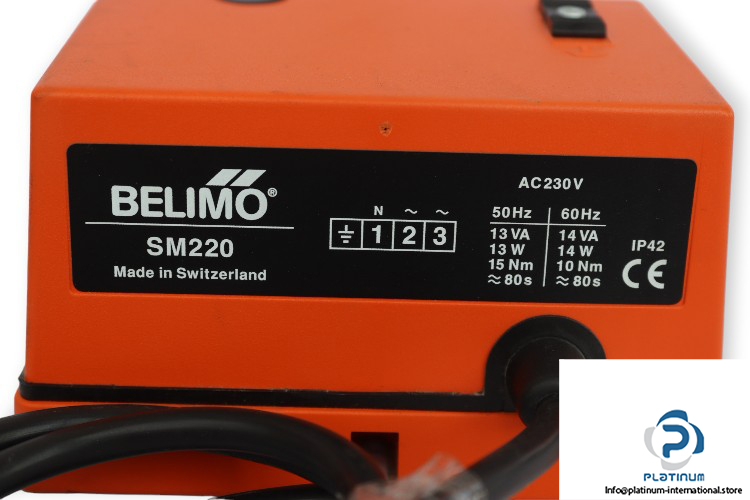

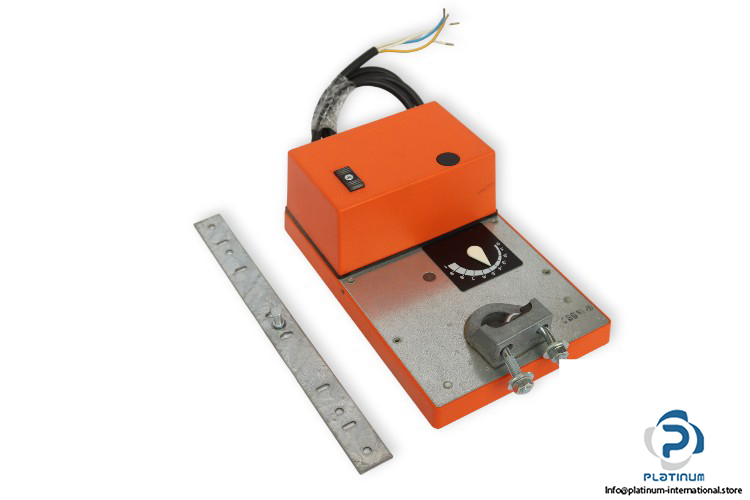

Belimo SM220 Damper Actuator

Manufacture: Belimo
Type: Damper actuator
Model: SM220

Nominal voltage: 230 V AC (198 … 264 V AC)
Nominal voltage frequency: 50/60 Hz
For wire sizing: 13 VA @ 50 Hz, 14 VA @ 60 Hz
Power consumption: 13 W @ 50 Hz, 14 W @ 60 Hz

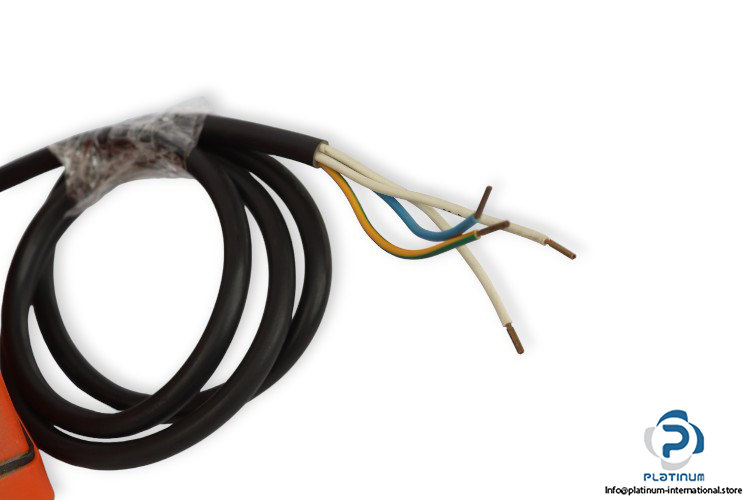

Connecting cable: 0.9 m, 4×0.75 mm²
Direction of rotation: reversible with switch A/B
Torque: min. 15 Nm @ 50 Hz, min. 10 Nm @ 60 Hz

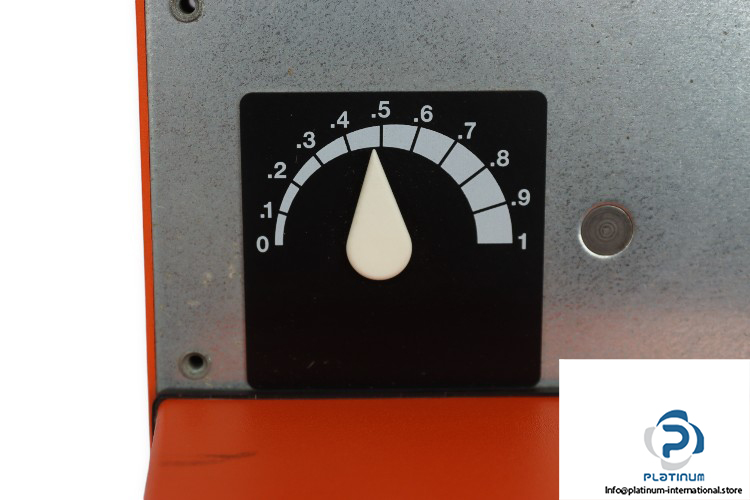

Angle of rotation: mechanically limited to 95°
Running time: 80 s
Sound power level: max. 45 dB (A)
Degree of protection: IP42
Ambient temperature: -30 … 50°C
Dimensions: 196 x 69 x 123 mm
