Bernstein SEK-U1Z Rope Pull Switch Body
Rope Pull Switch Body

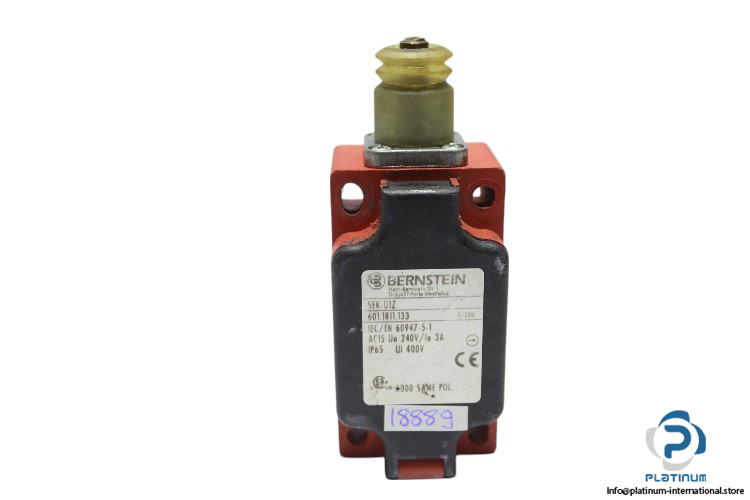

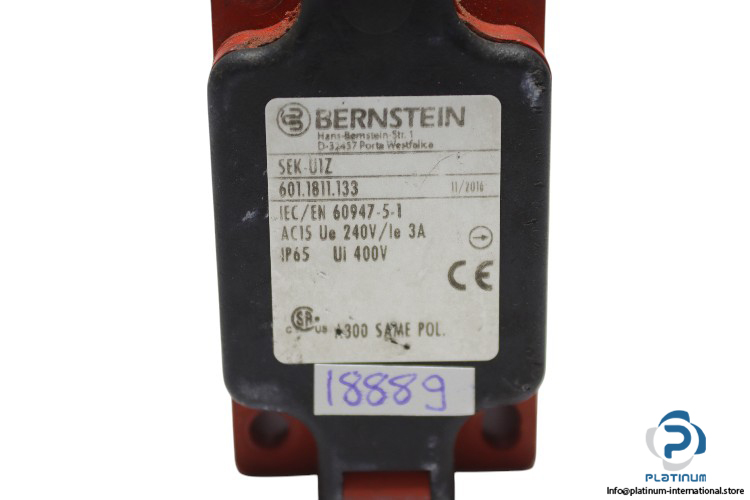

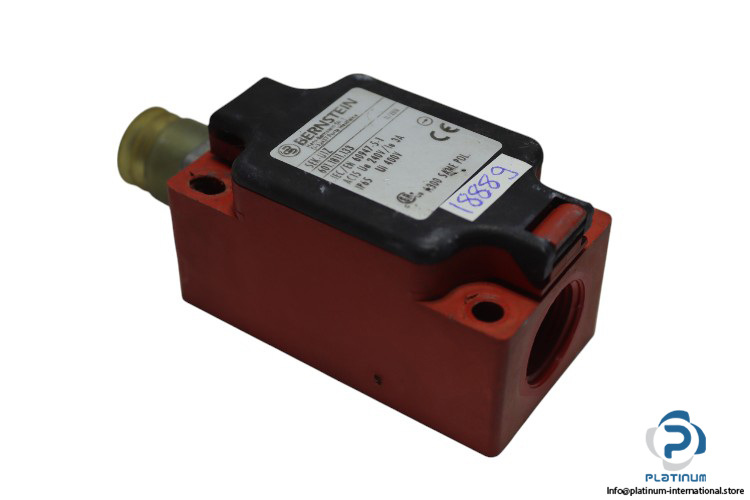

The Bernstein SEKU1Z Rope Pull Switch Body offers 240 V rated operational voltage, 3 A operational current, 10 A fuse protection, and IP65 rating for high-performance safety in industrial environments.Bernstein SEKU1Z Rope Pull Switch Body
The **Bernstein SEKU1Z Rope Pull Switch Body** is designed for safety-critical applications, offering **400 V AC rated insulation voltage** and **240 V rated operational voltage**. It features **1 NC** and **1 NO contact type** for reliable operation. With a **rated operational current** of **3 A at 240 V AC15**, this switch is ideal for environments where protection and durability are paramount. The **IP65** degree of protection ensures it performs reliably even in harsh conditions, while the **ambient temperature range** of **-30 to +80 °C** provides versatility for different industrial environments.
Manufacturer: Bernstein
Type: Rope Pull Switch Body
Model: SEKU1Z
The **Bernstein SEKU1Z Rope Pull Switch Body** ensures safety and durability, making it perfect for industrial environments that require robust performance under tough conditions.
| Rated Insulation Voltage (Ui) | 400 V AC |
| Rated Operational Voltage (Ue) | 240 V |
| Rated Operational Current | 3 A at 240 V AC15 |
| Short-Circuit Protective Device | Fuse 10 A gL/gG |
| Conventional Enclosed Thermal Current (Ith) | 10 A |
| Contact Type | 1 NC, 1 NO |
| Connection | 4 Screw Terminals (M3,5) |
| Cable Entrance | 1 x M20x1,5 |
| Enclosure Material | Thermoplastic, Glass Fibre Reinforced |
| Cover Material | Thermoplastic, Glass Fibre Reinforced |
| Ambient Air Temperature | -30 to +80 °C |
| Standard | IEC/EN 60947-5-1 |
| Degree of Protection | IP65 |
