B&R X20 BC 0063 BUS CONTROLLER
Novo
Em estoque2 unidadesPronto para envio
O Controlador de Barramento B&R (Modelo: X20BC0063, Rev.: G0) é projetado para integração perfeita com PROFIBUS DP V0, com taxa máxima de transferência de 12 Mbit/s, proteção IP20 e ampla faixa de temperatura operacional de -25 a 60°C.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

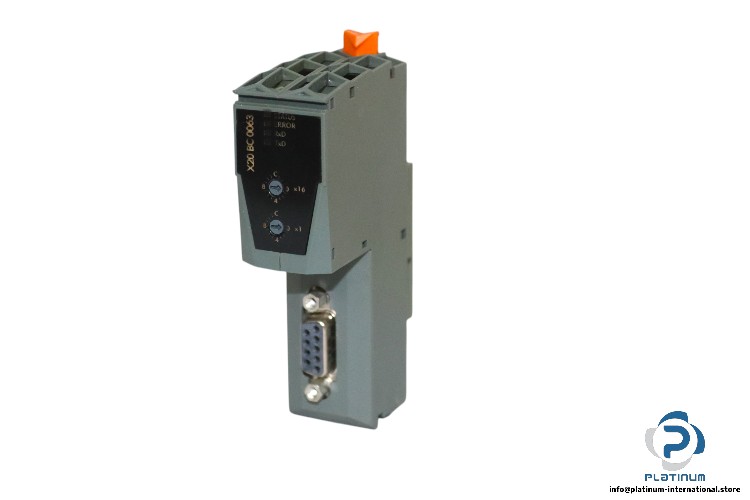

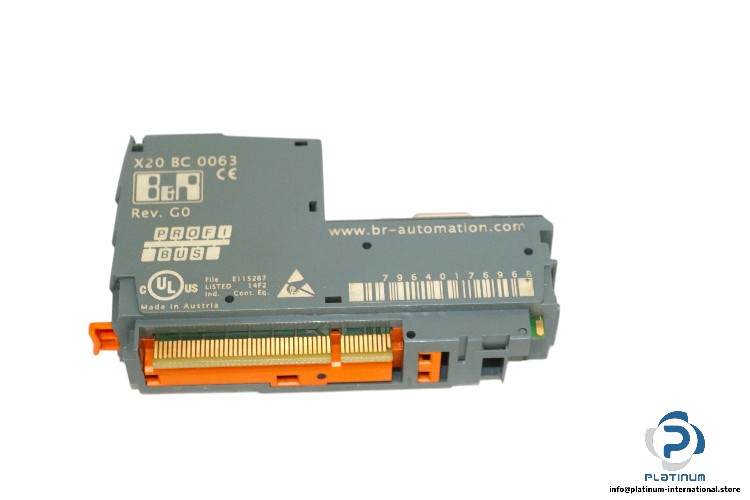

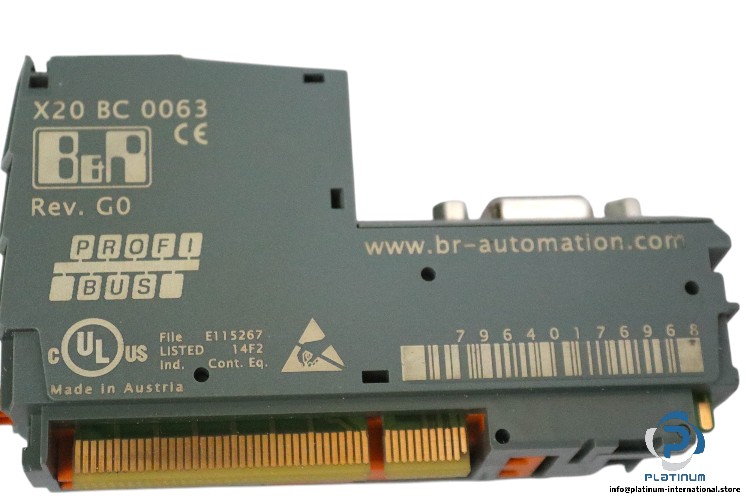

B&R Bus Controller – Model X20BC0063
The B&R Bus Controller (Model: X20BC0063, Rev.: G0) is a reliable and efficient solution for fieldbus communication. It provides seamless integration with PROFIBUS DP V0 systems and ensures robust performance. Below are the detailed specifications:
- Manufacturer: B&R
- Type: Bus Controller
- Model: X20BC0063
- Rev.: G0
- Power Consumption: 2.3 W
- Interfaces:
- Fieldbus: 1 PROFIBUS DP V0 slave
- Variant: 9-pin female DSUB connector
- Max. Distance: 1200 m
- Transfer Rate: Max. 12 Mbit/s
- Minimum Cycle Time:
- Fieldbus: No limitation
- X2X Link: 400 μs
- Electrical Isolation: PROFIBUS isolated from I/O
- Degree of Protection: IP20
- Operation Temperature: -25 to 60°C
