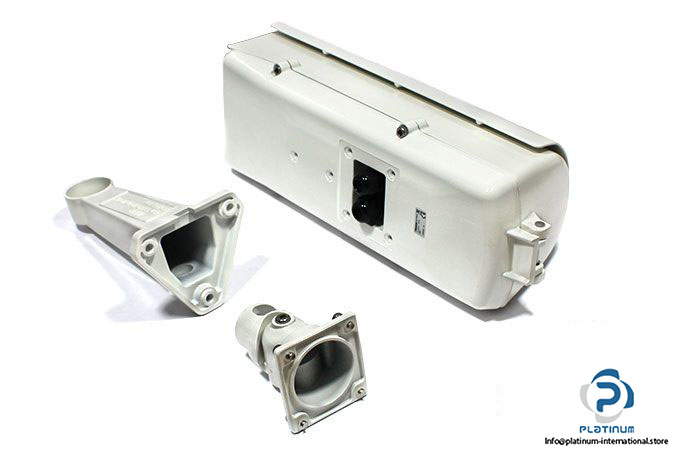

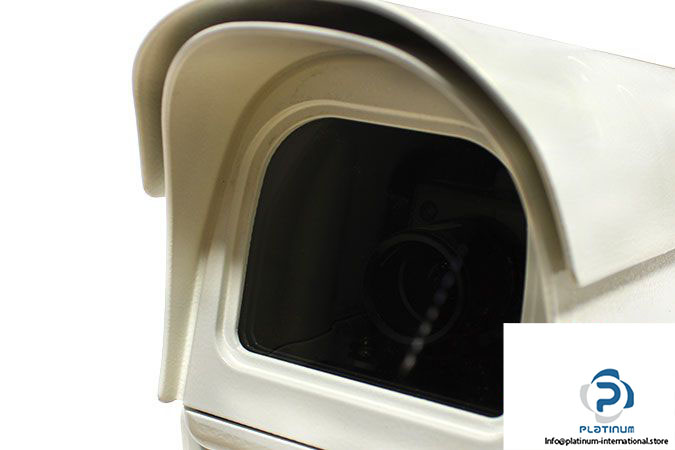

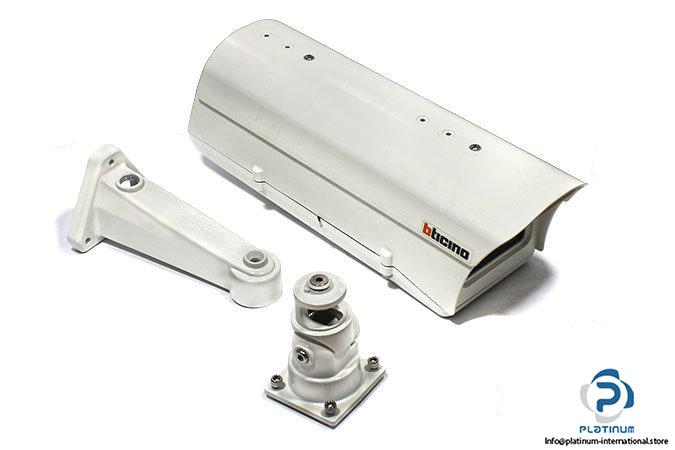

Bticino Tvcc Monochromatic Camera

Manufacturer: Bticino

Type: Monochromatic Camera

Model: TVCC

Part No: T9655A

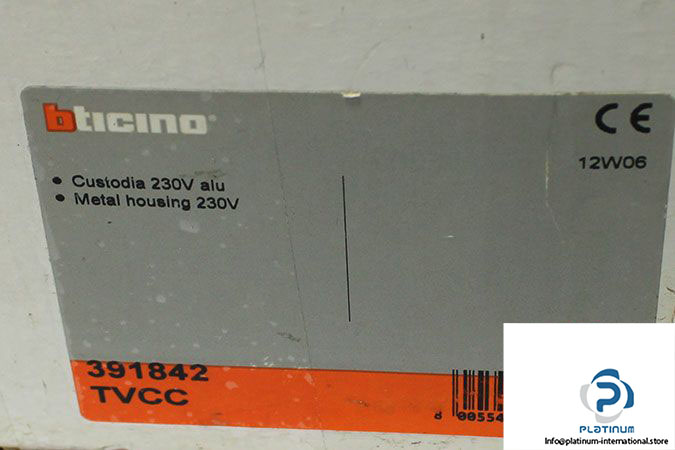

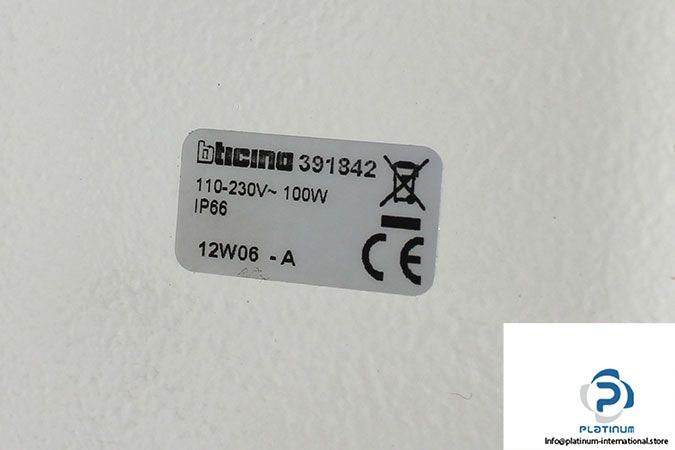

Art No: 391842

Lenses: Use lenses with CS coupling. Lenses with C pitch can also be used with adapter (supplied). If lenses with automatic diaphragm

Power Supply: 230Va.c. +/- 10% / 50 +/- 1 Hz

Absorption: 100 mA

Detector: 1/3” black and white CCD with interline transfer

Scanning System: EIA standard 525 lines, 30 frames/sec. CCIR standard 625 lines, 25 frames/sec.

Tuning System: Internal

Resolution: 420 TV lines

Minimum lighting: 0.15 Lux / F1.2

Range: 0.45

Signal/Noise Ratio: 46 dB (AGC OFF)

Electronic Shutter: EIA (1/60 – 1/100000) / CCIR (1/50 – 1/100000)

Automatic Diaphragm: 4p Connector (DC – VIDEO)

Output Signal: 1,0 Vpp composite – 75 ohm

Operating Temperature: -10…50 °C

Dimensions: 50 x 50 x 130 mm

Weight: 5 kg
