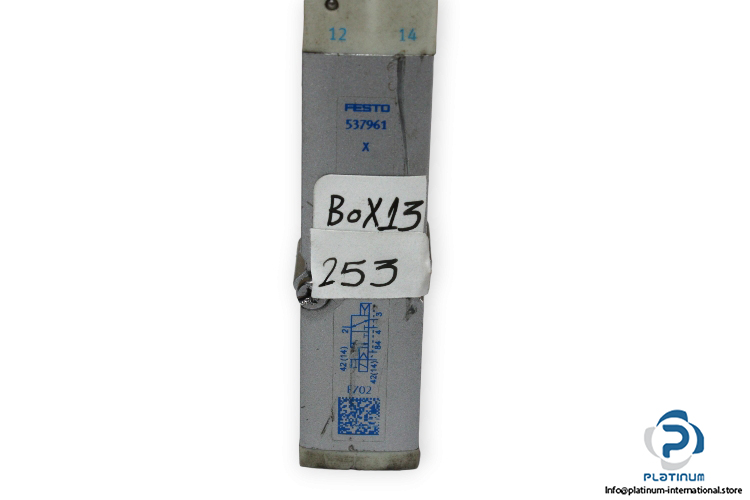

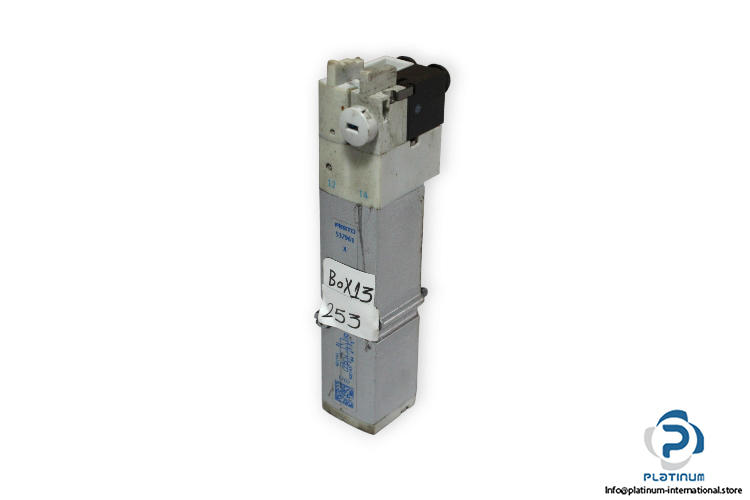

Festo 537961 AIR Solenoid Valve
Usado
Em estoque12 unidadesPronto para envio
AIR SOLENOID VALVE
FESTO VMPA2-M1H-X-PI air solenoid valve with 3/2-way monostable function, 470 l/min flow rate, and robust die-cast aluminium design.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
FESTO VMPA2-M1H-X-PI AIR SOLENOID VALVE
The FESTO VMPA2-M1H-X-PI is a high-performance air solenoid valve engineered for reliable and precise control in pneumatic systems. Featuring a 3/2-way monostable function and die-cast aluminium housing, this valve ensures long-lasting performance and energy-efficient operation in a wide pressure range.
Manufacturer: FESTO
Type: Air Solenoid Valve
Model: VMPA2-M1H-X-PI
Part No.: 537961
| Fluid | Air |
| Design | Piston gate valve |
| Function | 3/2-way, closed, monostable |
| Type of Actuation | Electrically |
| Operating Pressure | -0.9 to 10 bar |
| Pilot Pressure | 3 to 8 bar |
| Nominal Flow Rate | 470 l/min |
| Operating Voltage | 24 V DC |
| Pneumatic Connection | Sub based |
| Material | Die-cast aluminium |
| Ambient Temperature | -5 to 50 °C |
