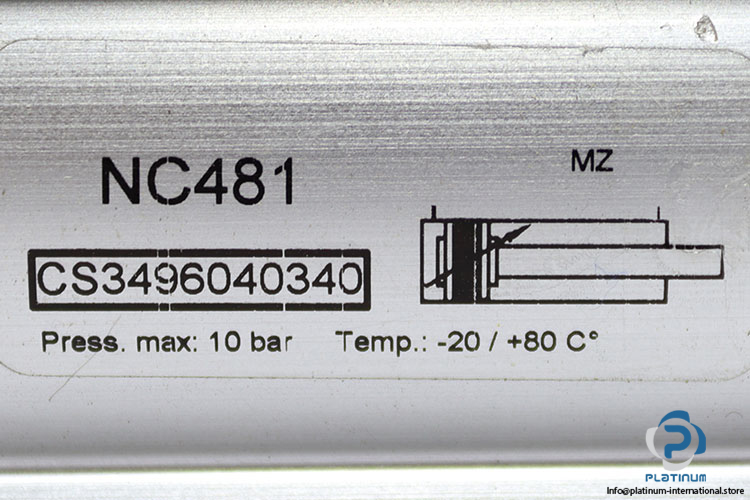

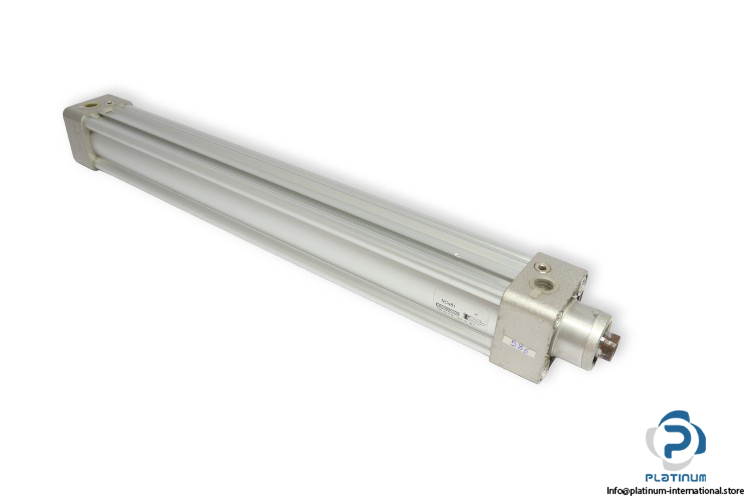

Name: CS3496040340 ISO CYLINDER
SKU: 1046081
Availability: LimitedAvailability

Type: ISO Cylinder
Model: CP95SDB50125

Media: Compressed Air
Stroke (mm): 340
Bore diameter (mm): 40
BorexStroke (mm): 40×340
Rod diameter (mm): 16
Fram Dimensions (mm): 475×53
Maximum pressure (bar): 10
Pneumatic connection: G1/4
Mode of operation: Double
Piston rod end: Male
Shape: Square
Rod Direction: One Side

Especificação	Valor
Weight	1,68 kg
Condition	Used
Bore Diameter [mm]	40
Type of Product	ISO Cylinder
Connection	G1/4
Rod Diameter [mm]	16
Shelf No.	240828
Stroke Size [mm]	340
Bore x Stroke	40x340

Preço	Mediante Solicitação
Estoque	2 Em estoque
Categoria	ISO Cylinder
Condição	Usado
SKU	1046081

Weight	1,68 kg
Condition	Used
Bore Diameter [mm]	40
Type of Product	ISO Cylinder
Connection	G1/4
Rod Diameter [mm]	16
Shelf No.	240828
Stroke Size [mm]	340
Bore x Stroke	40x340

CS3496040340 ISO Cylinder
