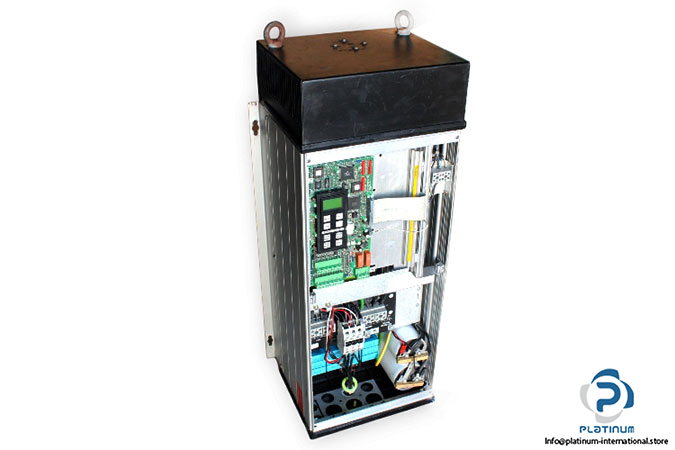

Danfoss VLT Type 3532 HV-AC Variable Speed Drive

Manufacture: Danfoss
Type: Variable Speed Drive

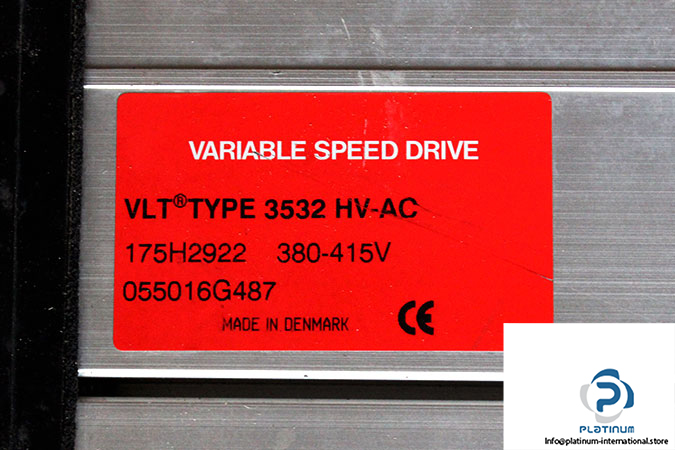

Model: VLT TYPE 3532 HV-AC
Part No.: 055016G487/175H2922

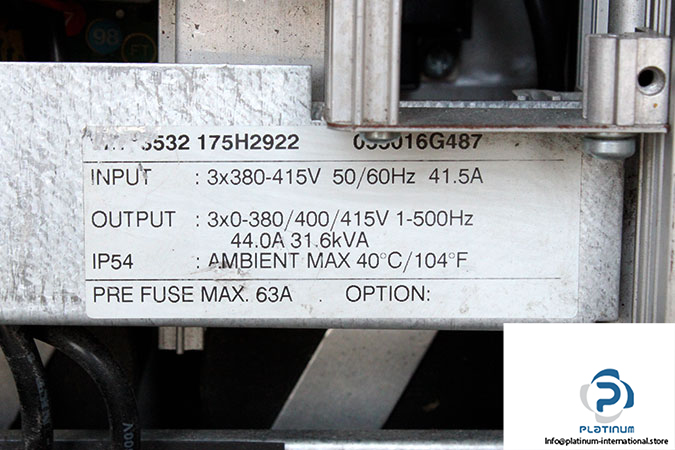

Input
Voltage: 3 phase/ 380 … 415 V
Frequency: 50/60 Hz
Current: 41.5 A

Output
Voltage: 3 Phase/0 … 380/400/415 V
Frequency: 1 … 500 Hz
Current: 44 A
Power (at 415 V): 31.6 kVA
Rated motor voltage: 380/400/415 V
Typical shaft output Power: 22 kW
Power loss at max. load: 880 W
Max. pre-fuses: 63 A
Protection degree: IP20
Ambient temperature: -10 … 40°C
Dimensions: 780 x 242 x 260 mm
