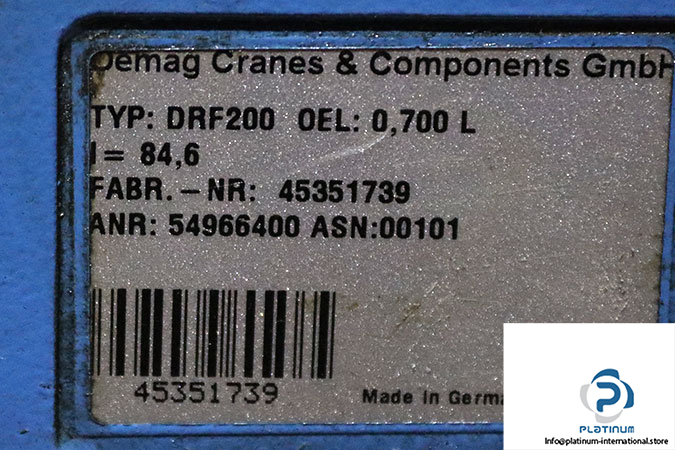

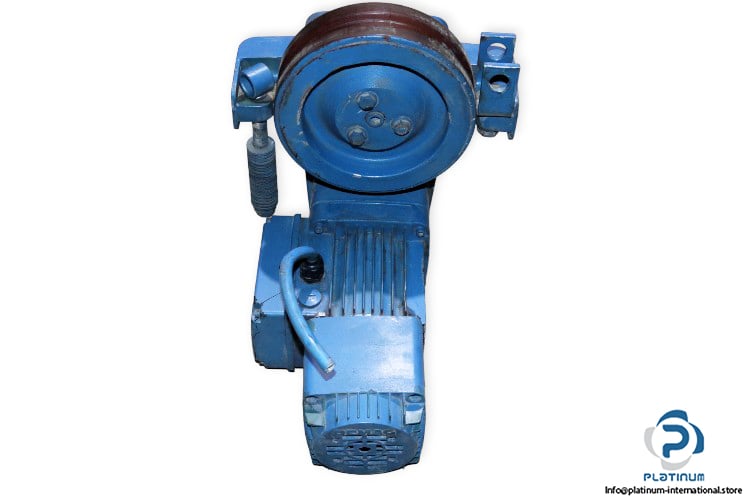

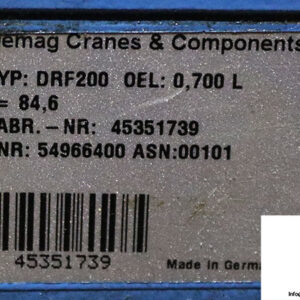

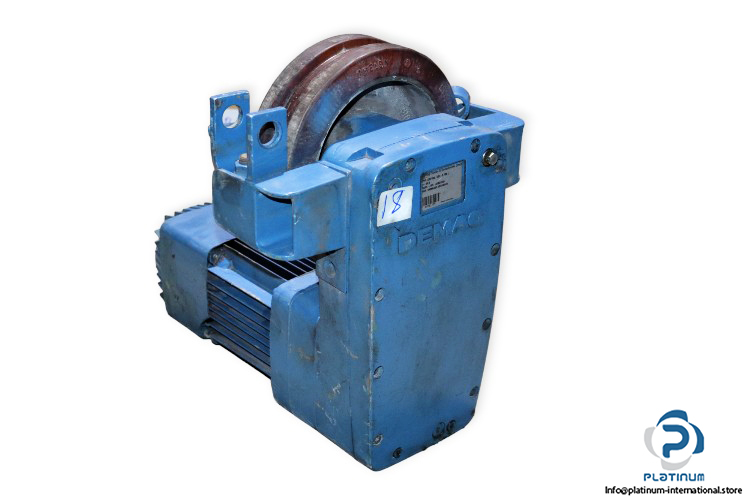

Demag DRF200 Gear Motor

Manufacturer: Demag
Type: Gear Motors
Model: DRF 200
Motor Nr.: 45351739

Ratio [i]: 84.6
Oil [L]: 0.7
Attachment: DEMAG ZBF 63 A 8/2 B003 AC MOTOR
Manufacturer: Demag
Type: AC Motors
Model: ZBF63A8/2B003
Motor Speed [r/min]: 675/2745
Motor Power [kW]: 0.06/0.25
Rated Voltage [V]: 400 Star
Nominal Current [A]: 0.66/0.95
Motor Frequency [Hz]: 50
Cos Phi: 0.59/0.71
Thermal Class: F
Protection Class [IP]: 54
Brake Voltage [VAC]: 400
Brake Voltage [VDC]: 180
Brake Torque [Nm]: 1.4
