Denison 4D01 3208 0302 B1G Directional Control Valve

Manufacturer: DENISON

Type: Directional Control Valve

Model: 4D01 3208 0302 B1G

Part. No: 026 54185 0

Nominal Size: NG 06

Ambient Temperature Range: -25 …. +50 °C

Max. Operating Pressure at Ports P, A, B: 350 bar

Max. Operating Pressure at Port T: 210 (DC), 140 (AC) bar

Maximum Flow: 80 L/min

Fluid Temperature Range: -25 …. +80 °C

Viscosity Range:10…650 mm²/s

Hydraulic Connection: Sub-plate

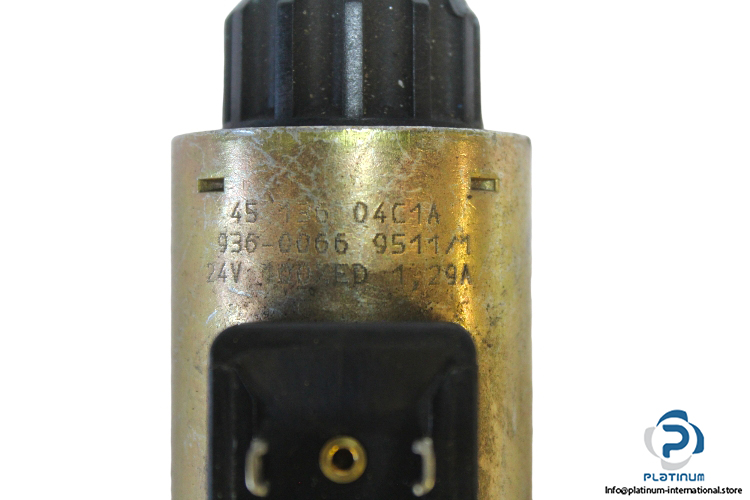

Attachment: DENISON 45 156 04C1A SOLENOID COIL

Manufacturer: DENISON

Type: Solenoid Coil

Model: 45 156 04C1A

Part. No: 936-0066 9511/1

Voltage: 24 V DC

Current: 1.29 A
