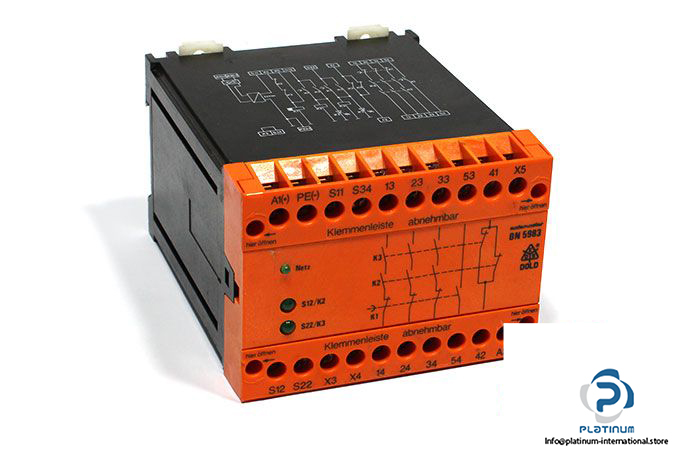

Dold BN 5983.53 Emergency Stop Module

Manufacturer: DOLD

Type: EMERGENCY STOP MODULE

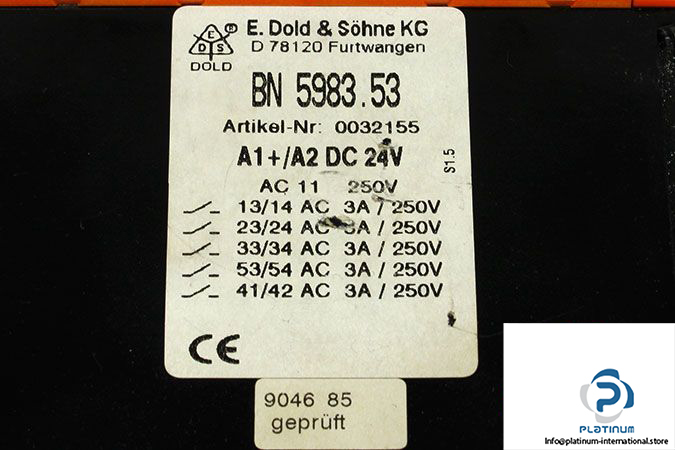

Model: BN 5983.53

Art. No.: 0032155

Application: Emergency-stop circuits on machines / Monitoring of safety gates

Input:

Nominal Voltage: 24 VDC

Nominal Consumption: 5 VA ± 30 %

Control Current: max. 100 Ma DC

Output:

Output Contacts: 3 NO, 1 NC

Nominal Output Voltage: AC 400 V / DC 230 V

Contact Type: Relay, positively-driven

Wire Fixing: Flat terminals with self-lifting

Temperature Range: -15 … + 55°C

Dimensions: 100 X 74 X 120 mm

Weight: 0.9 Kg
