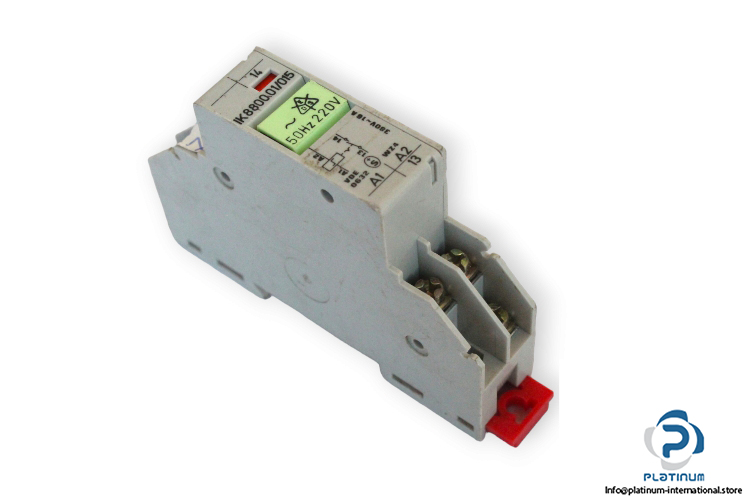

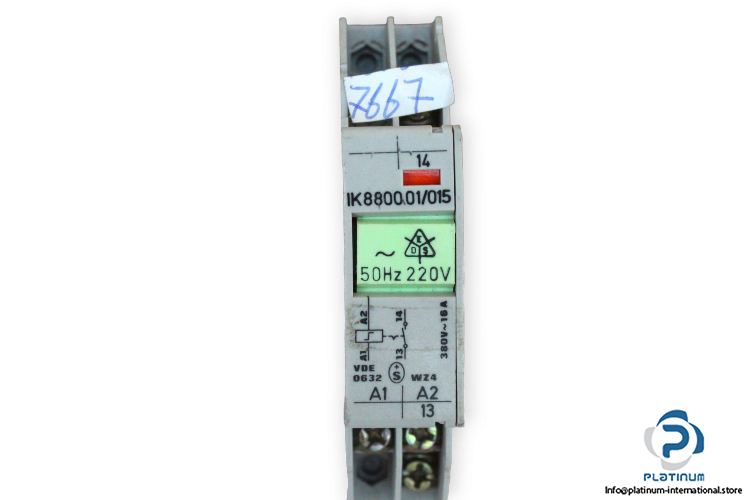

Dold IK8800 01/015 Remote Switch
Manufacture: Dold
Type: Remote Switch
Model: IK8800 01/015
Rated operating voltage: 220 V AC,50 Hz
Nominal consumption apparent power: 5.2 VA
Actual power: 4.2 W
Contact rating: 380 V AC, 16 A
Output contact: 1 NO
Operation temperature: – 20 … + 45°C
Degree of protection: Housing: IP 30,Terminals: IP 20
Dimensions (W x H x D): 17.5 x 89 x 58 mm
