Durr TI711/F4H Magnetic Flow Sensor
Usado
Em estoque1 unidadePronto para envio
Magnetic Flow Sensor
DURR TI711/F4H magnetic flow sensor with platinum electrodes, ceramic liner, IP65 protection, and ATEX explosion-proof design, rated up to 25 bar with 28 VAC / 600 mA electrical capacity.AtexceramicDurrElectrodesExplosionflowHighIndustrialLinerMagneticMeasurementPlatinumPressureProofSensorTI711/F4H
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

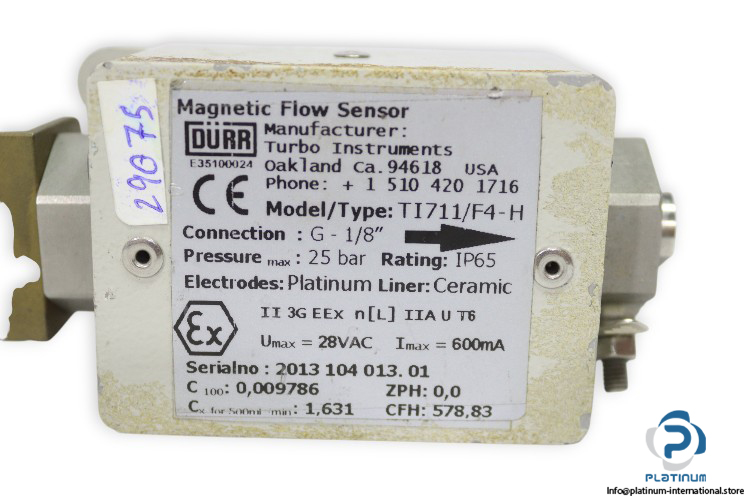

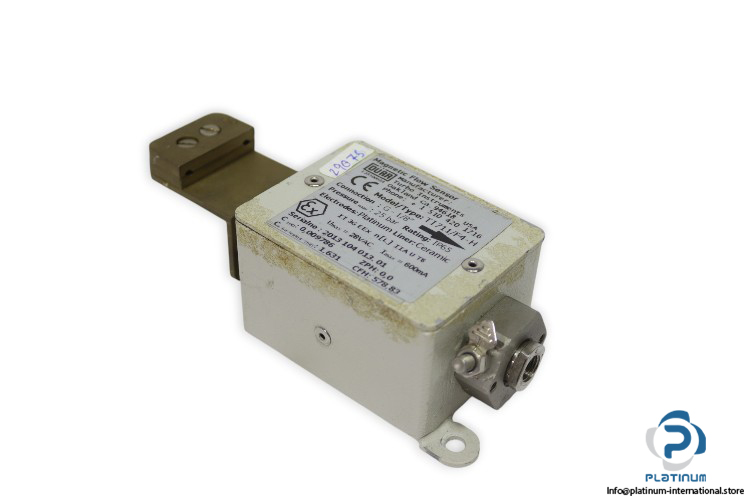

DURR TI711/F4H Magnetic Flow Sensor
The DURR TI711/F4H Magnetic Flow Sensor is a precision-engineered device designed for reliable flow measurement in demanding industrial environments. With platinum electrodes, ceramic liner, and ATEX explosion-proof certification, it ensures durability and safe operation under high pressure and hazardous conditions.
Manufacturer: DURR
Type: Magnetic Flow Sensor
Model: TI711/F4H
Serial Number: 2013 104 013 01
Code: 0,009786
Ref No.: 578.83 / E35100024
| Connection | G 1/8" |
| Pressure Rating | Max 25 bar |
| Protection Rating | IP65 |
| Electrodes | Platinum |
| Liner Material | Ceramic |
| Explosion Proof | ATEX “ II 3G EEx n (L) IIA U T6 (for explosive atmospheres) |
| Electrical Ratings | Umax: 28 VAC / Imax: 600 mA |
