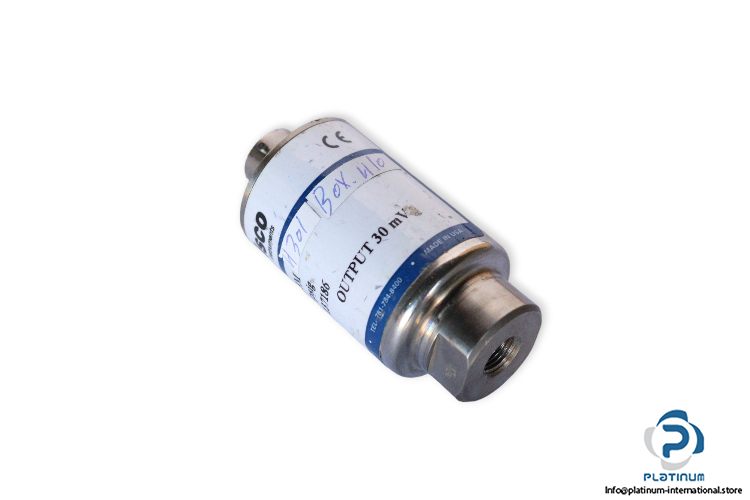

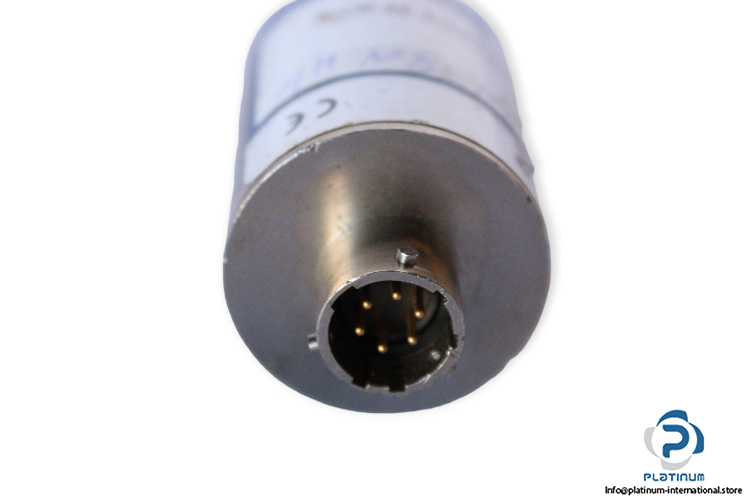

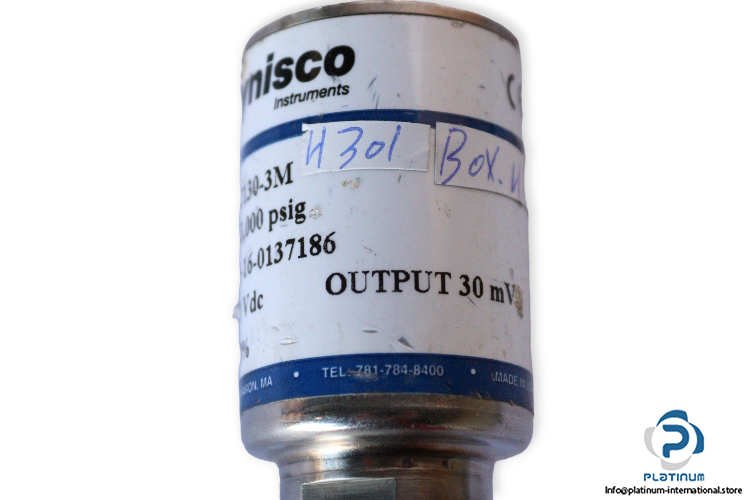

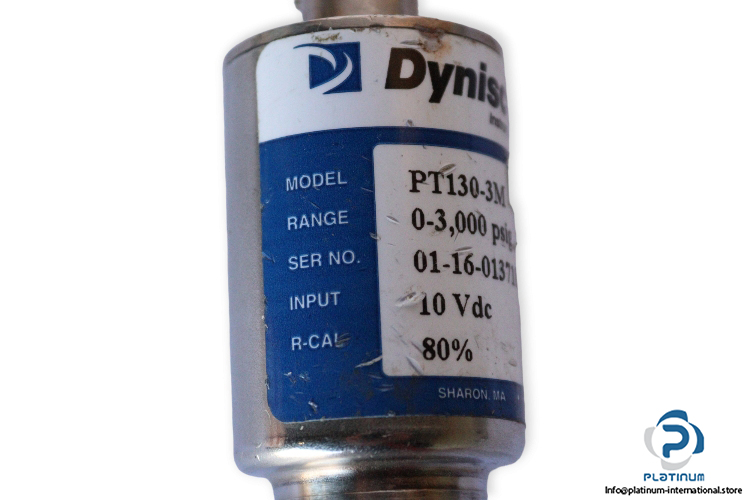

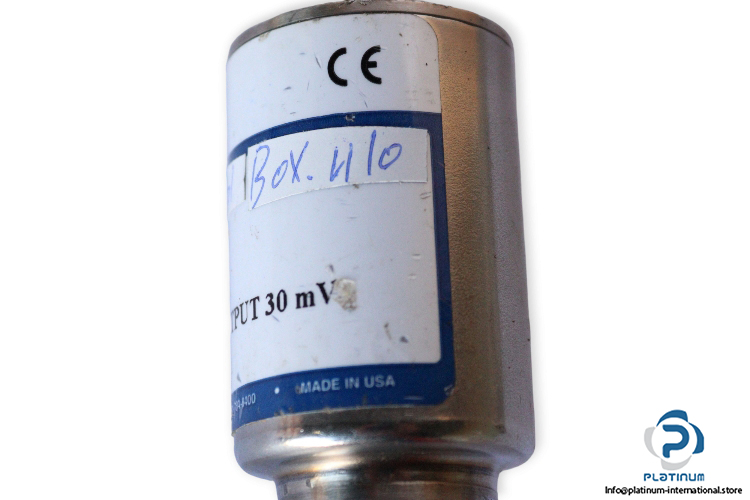

Dynisco PT130-3M Hydraulic Pressure Sensor
Manufacturer: DYNISCO
Type: Hydraulic Pressure Sensor
Series: PT130
Model: PT130-3M
Pressure range: 0 … 3000 psi
Input Voltage: 10 VDC
Output Voltage: 30 mV
Accuracy: ±0.5%
Full Scale Output: 3 mV/V ±1.0%
Zero Balance: ±1.0% typical
Input Resistance: 420 Ohms ±10%
Output Resistance: 370 Ohms ±10%
Operating Temperature: -54 … 120°C
Temperature Effect On Span: ±0.02%
Port size: G1/8
