Elap PL2S 200 Linear Motion Potentiometer
Usado
Em estoque1 unidadePronto para envio
O POTENCIÔMETRO DE MOVIMENTO LINEAR ELAP PL2S200 é um potenciômetro linear de alta precisão com curso de 200 mm, linearidade de 0,075 mm e proteção IP65. Adequado para detecção precisa de posição em aplicações industriais.
ComponentControlDisplacementElapIndustrialIP65LinearMeasurementMotionPL2SPositionPotentiometerPrecisionSensorSeries
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

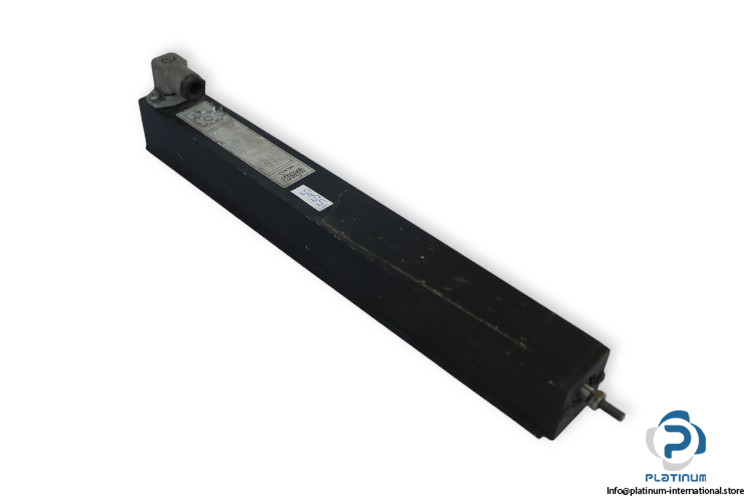

ELAP PL2S200 LINEAR MOTION POTENTIOMETER
The ELAP PL2S200 Linear Motion Potentiometer is a precision measurement device engineered for high-performance positioning and displacement applications. Built with durable anodized aluminum and designed to deliver accurate feedback, it is ideal for industrial automation systems requiring dependable linear tracking.

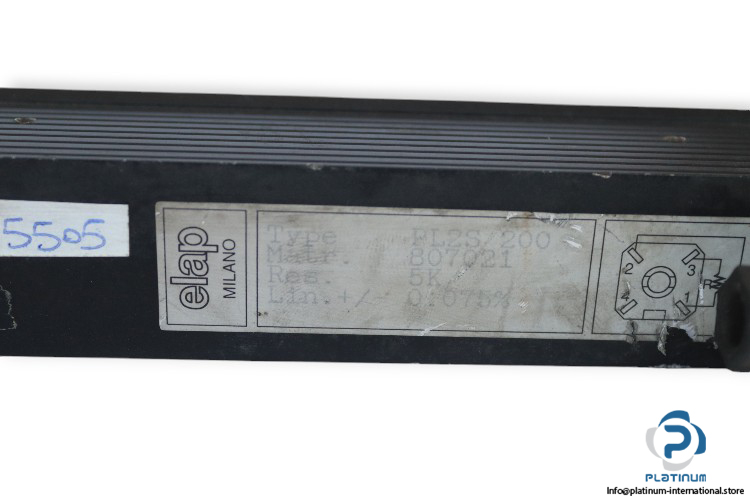

Manufacturer: ELAP
Type: Linear Motion Potentiometer
Model: PL2S200
Code No.: 807021
Series: PL2S
| Independent Linearity | 0.075 mm |
| Useful Electrical Stroke Length | 200 mm |
| Rated Applicable Voltage Max. | 28 V DC |
| Resolution | Infinite |
| Resistance | 5 kohm |
| Electrical Connection | Radial Connector, 4-Pin, 1 m |
| Material | Anodized Aluminium with Glass-Filled Nylon Flanges |
| Rod Diameter | 6 mm |
| Protection Class | IP65 |
| Temperature Range | -20 / 80 °C |
| Dimensions | 277 x 60 mm |
