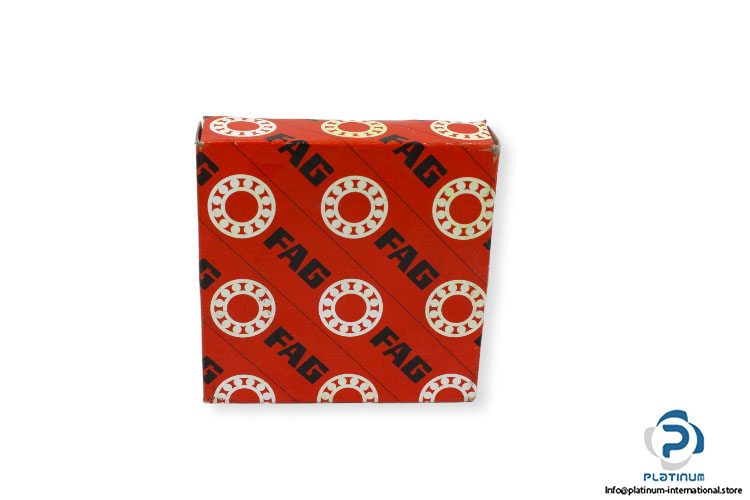

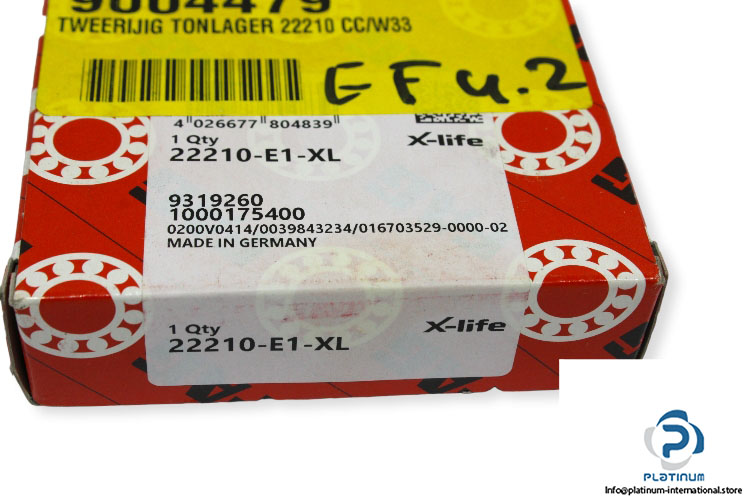

FAG 22210-E1-XL Spherical Roller Bearing

Manufacturer: Schaeffler FAG

Type: Spherical Roller Bearing

Model: 22210 E1-XL

Replaces: 22210-E1, 22210E1

Dimensions:

Bore Diameter d: 50 mm

Outer diameter D: 90 mm

Width: 23 mm

Dynamic load rating: 109000 N

Static load rating: 107000 N

Fatigue load limit: 14600 N

limiting speed: 9800 RPM

Reference speed: 5100 RPM

Cage material: Sheet metal cage

Operating temperature: -30 … +200 °C
