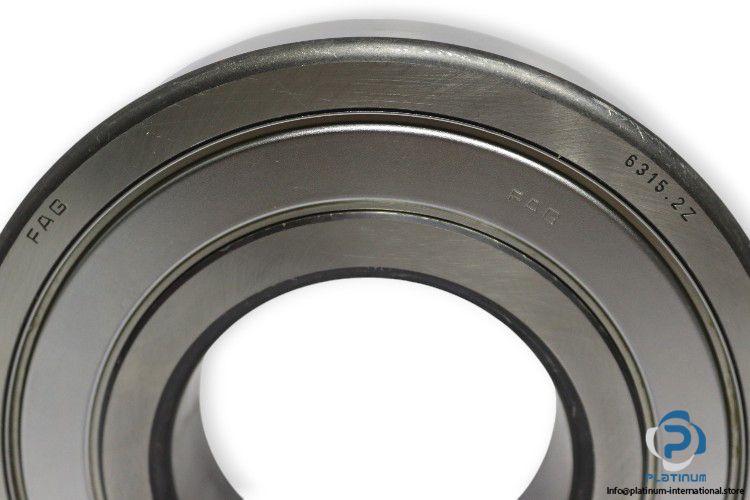

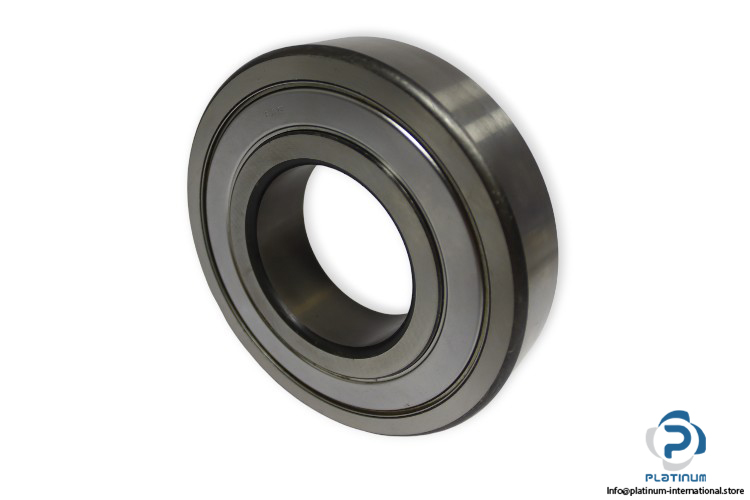

FAG 6315.2Z Deep Groove Ball Bearing

Manufacturer: FAG Schaeffler
Type: Single Row Deep Groove Ball Bearing
Model: 6315-2Z

Dimensions:
Bore Diameter d: 75 mm
Outer Diameter D: 160 mm
Bearing Width B: 37 mm
Basic dynamic load rating, radial: 123,000 N
Basic static load rating, radial: 77,000 N
Fatigue load limit, radial: 4,850 N
Limiting speed: 5,400 1/min
Reference speed: 5,800 1/min
Cage Material: steel sheet metal
Sealing: Non-contact shield on both sides
