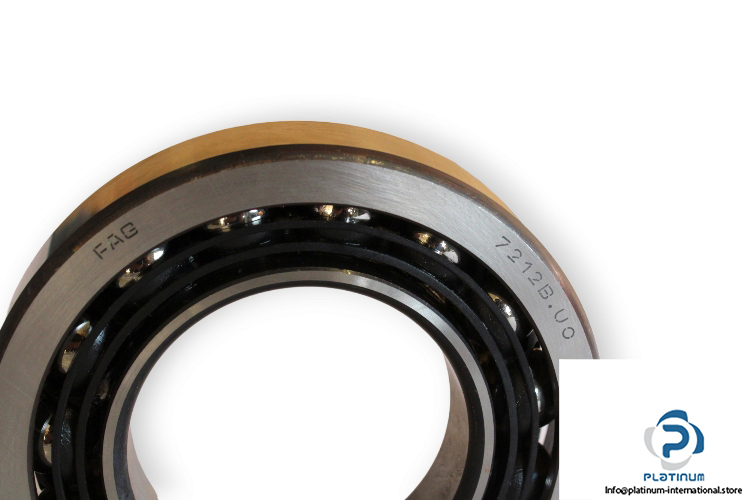

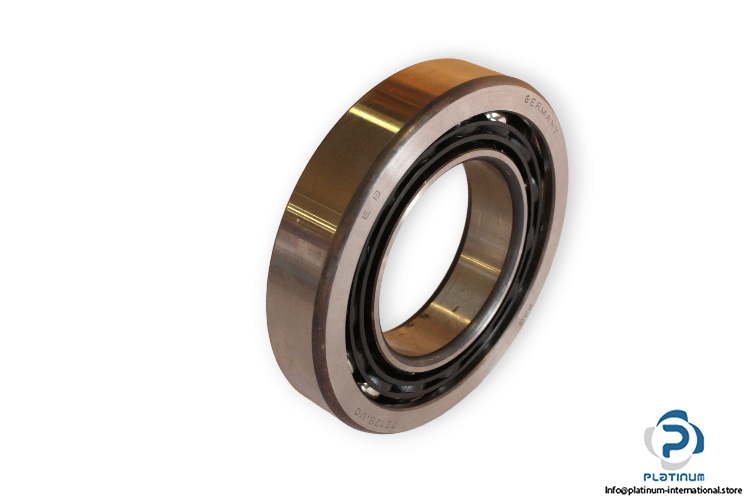

FAG 7212B.TVP.UO Angular Contact Ball Bearing

Manufacturer: FAG

Type: Angular Contact Ball Bearing

Model: 7212B.TVP.UO

Replaces: 7209-B-XL-TVP-UA, 7209-B-TVP-UA

Dimensions

Bore Diameter d: 60 mm

Outer diameter D: 110 mm

Width B: 22 mm

Basic load ratings:

Dynamic C_r: 62000 N

Static C_0r: 45000 N

Fatigue load limit C_ur: 3150 N

Contact Angle: 40°

Limiting speed: 8300 rpm

Reference speed: 6200 rpm

Bearing with matched conditions for fitting in pairs: UO, bearing set clearance-free in O or X arrangement

Cage: TVP, solid cage made of glass-fiber reinforced polyamid PA66

Tolerance class: P6, Class6 (P6), better than PN
