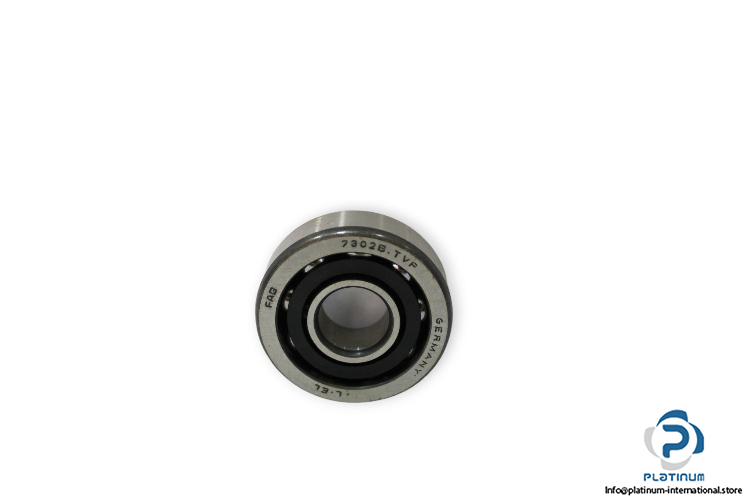

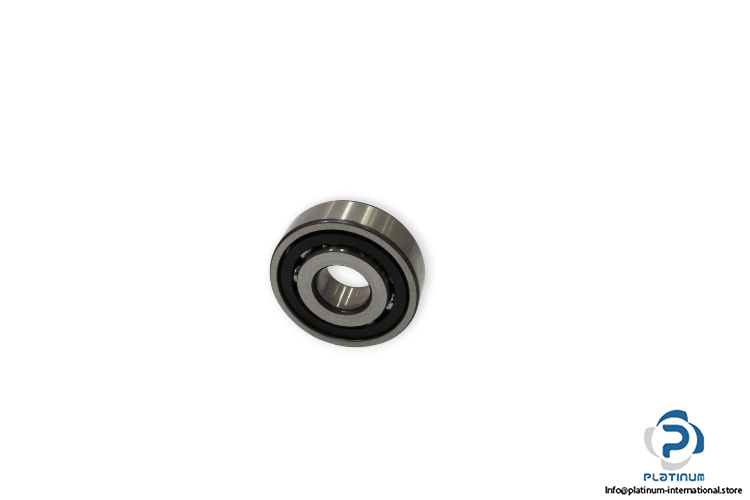

FAG 7302B.TVP Angular Contact Ball Bearing

Manufacturer: FAG

Type: Angular Contact Ball Bearing

Model: 7302 B.TVP

Replaces: 7302-B-XL-TVP, 7302-B-TVP

Dimensions

Bore Diameter d: 15 mm

Outer diameter D: 42 mm

Width B: 13 mm

Basic load ratings:

Dynamic C_r: 15100 N

Static C_0r: 7200 N

Fatigue load limit C_ur: 495 N

Contact Angle: 40°

Limiting speed: 24400 rpm

Reference speed: 14200 rpm

Cage: TVP, solid cage made of glass-fiber reinforced polyamid PA66

Tolerance class: P6, Class6 (P6), better than PN
