FAG Nutr 25 DZ Yoke Type Track Roller
Em estoque3 unidadesPronto para envio
Rolo de Trilho Tipo Yoke FAG NUTR25DZ rolo de trilho tipo yoke com design de rolo de complemento total, alta capacidade de carga radial e lubrificação permanente com graxa.
bearingCamcomplementDutyFagFollowerfullHeavyIndustrialLinearLoadMotionNUTR25DZradialRollertrackTypeYoke
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

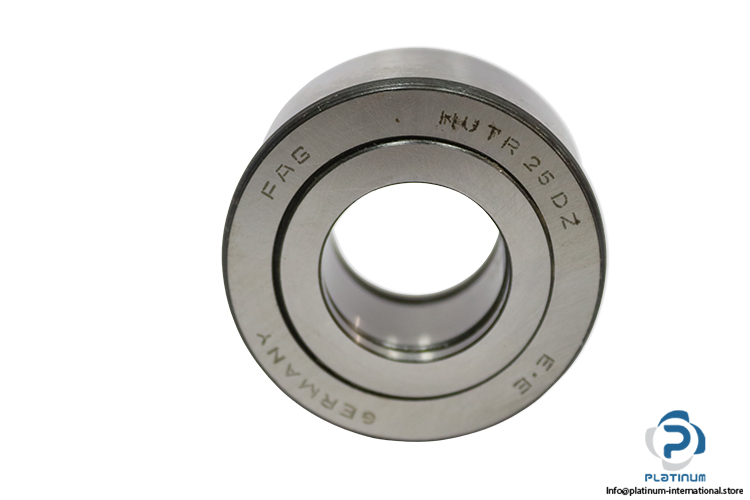

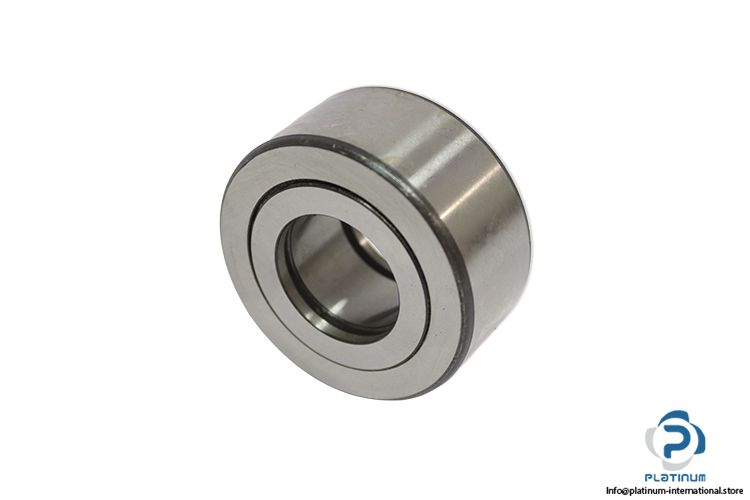

FAG NUTR25DZ Yoke Type Track Roller
The FAG NUTR25DZ is a yoke type track roller designed for high radial loads and demanding industrial applications. Its full complement roller design ensures high load carrying capacity and reliable operation under continuous duty.
Manufacturer: FAG
Type: Yoke Type Track Roller
Model: NUTR25DZ
| Bore Diameter (d) | 25 mm |
| Outer Diameter (D) | 52 mm |
| Width (B) | 25 mm |
| Basic Dynamic Load Rating, Radial | 29,000 N |
| Basic Static Load Rating, Radial | 41,500 N |
| Fatigue Load Limit, Radial | 5,400 N |
| Speed on Permanent Grease Lubrication | 4,200 1/min |
| Permissible Static Load, Radial | 34,000 N |
| Permissible Dynamic Load Outer Ring, Radial | 17,100 N |
| Width, Outer Ring | 24 mm |
| Suffix | DZ (Full Complement Roller Design) |
